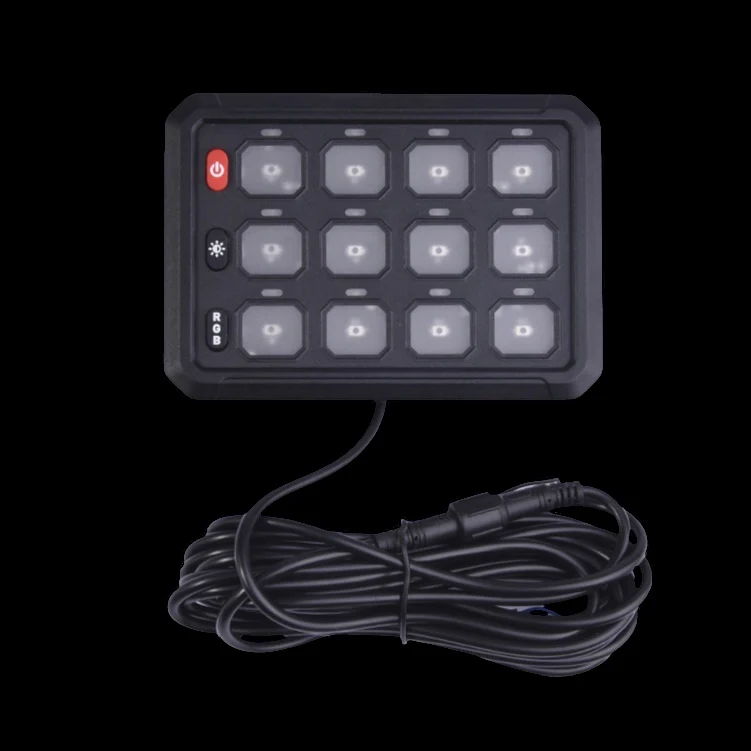

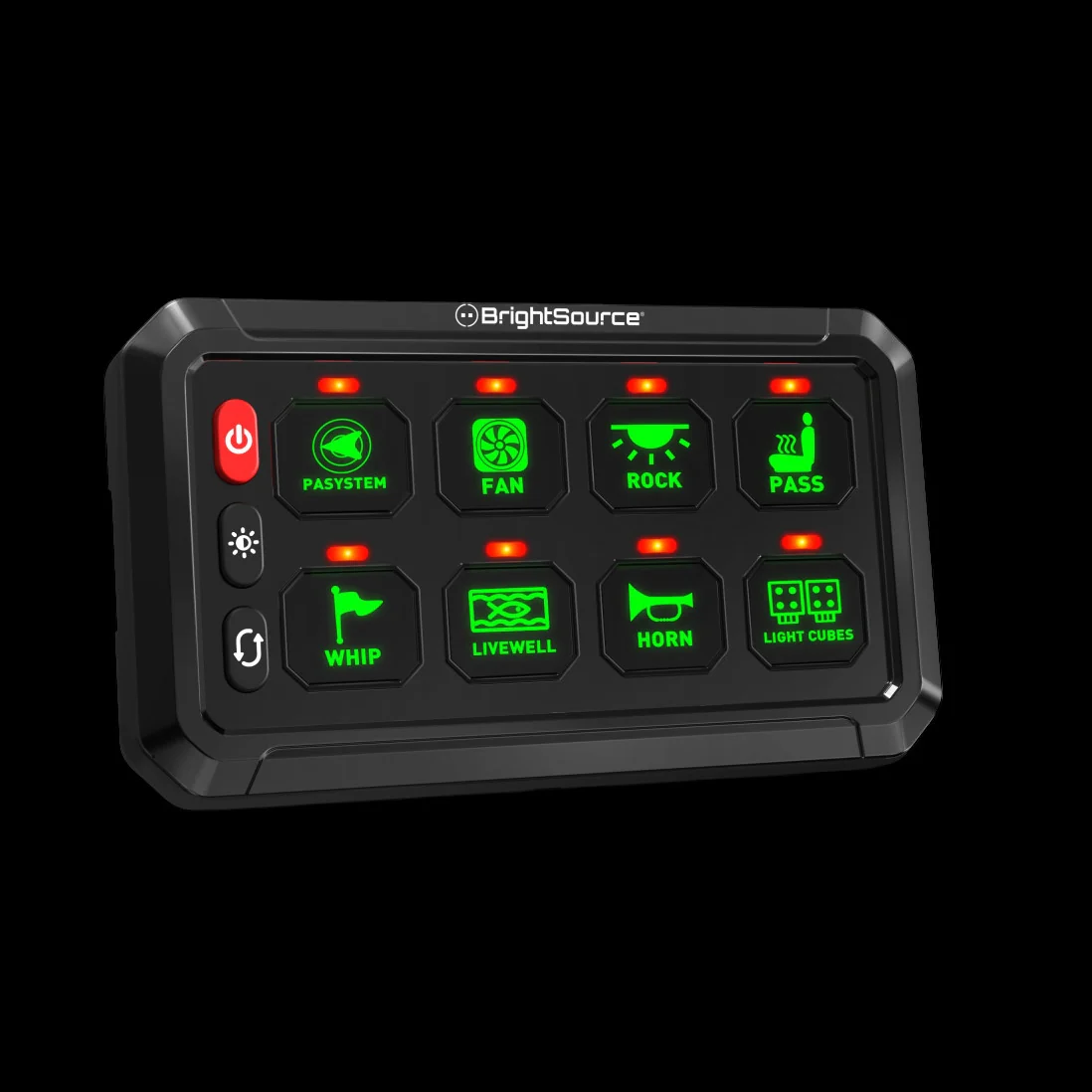

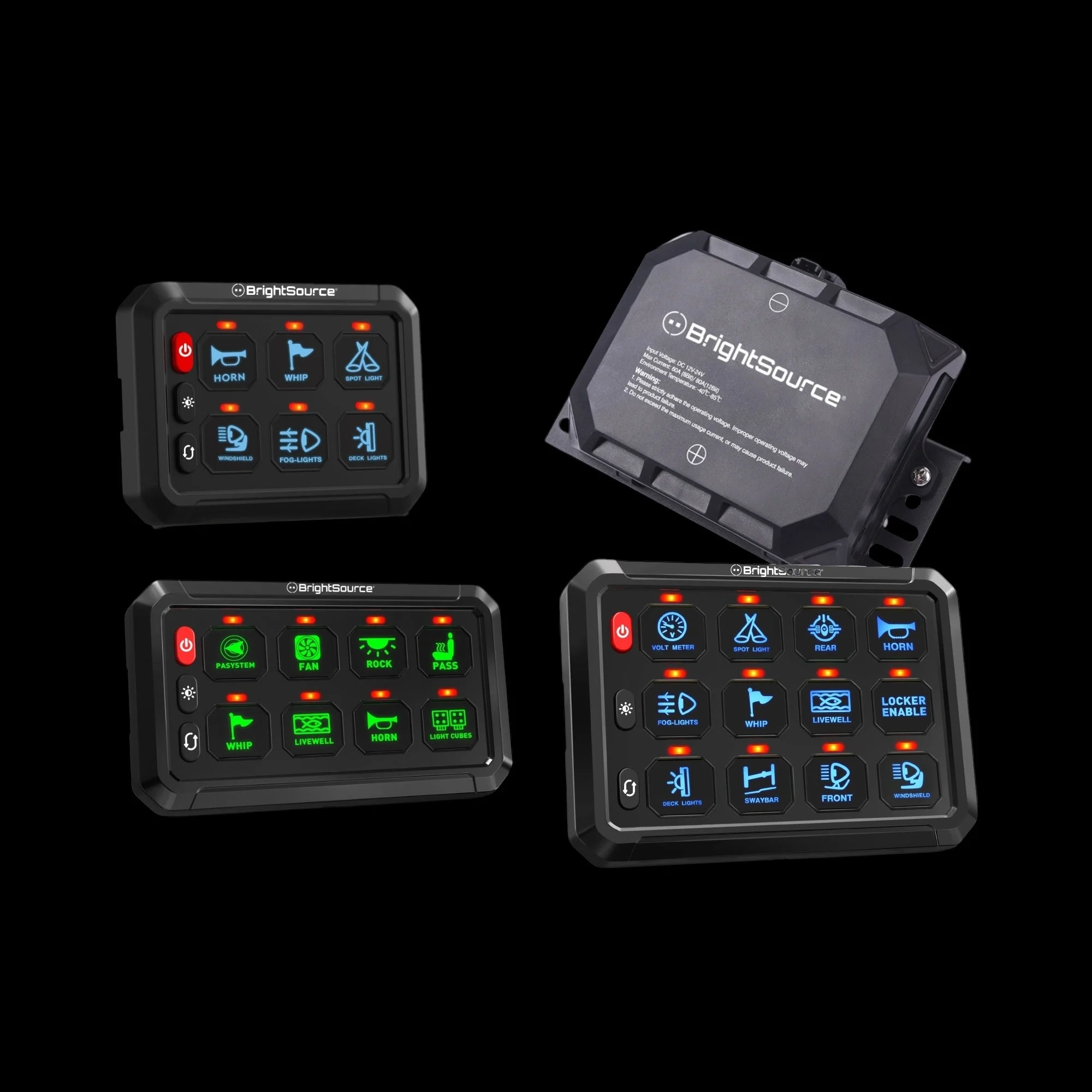

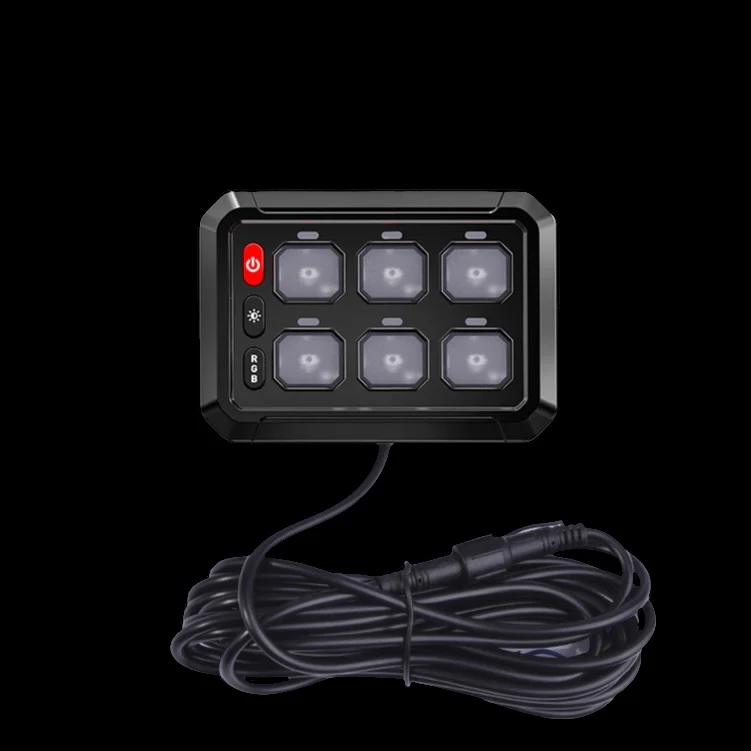

3 Sizes: 6 Gang (73806)  8 Gang (73808), 12 Gang (73812)

4 Control Modes: Select from constant, momentary, flash, or strobe operation for versatile functionality.

3 Silicone Function Buttons: Power: On/off with memory function. RGB Lighting: Adjust background colour to suit your preference. Brightness Control: Choose from five levels — 100%, 75%, 50%, 25%, or 10%.

2 Power Source Options: Connect via the ACC circuit for ignition-based operation or directly to the battery for uninterrupted power.

MOSFET relays are used exclusively due to their compact design, offering enhanced performance, efficiency, and reliability compared to traditional relays.

Specifications:

VOLTAGE	12V/24V
OUTPUT RANGE	73806/73808: 720W @12V, 1440W @ 24V  73812: 960W @12V, 1920W @ 24V
AMPERAGE	73806/73808: 60A  73812: 80A
SWITCH PANEL	Powder coated aluminum

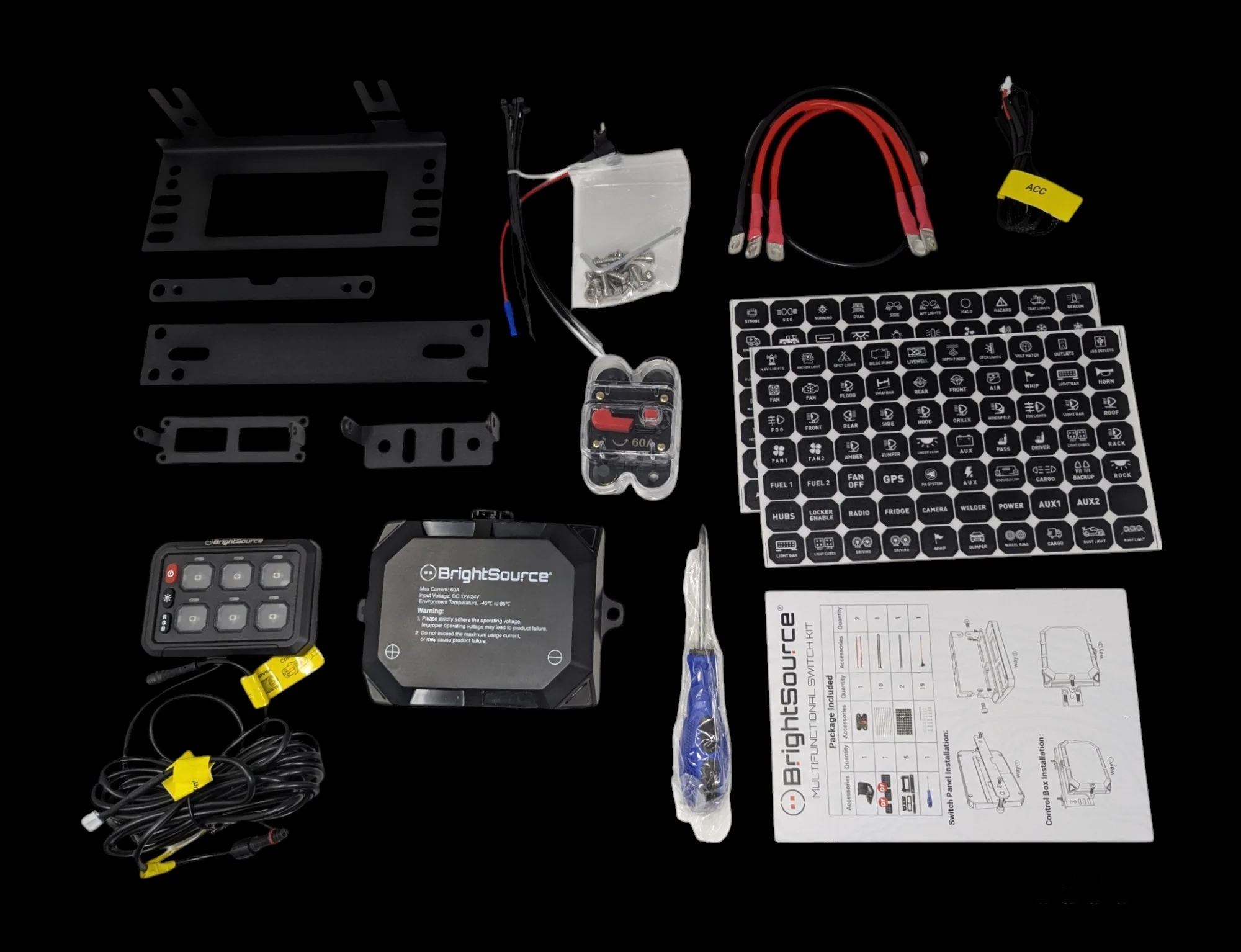

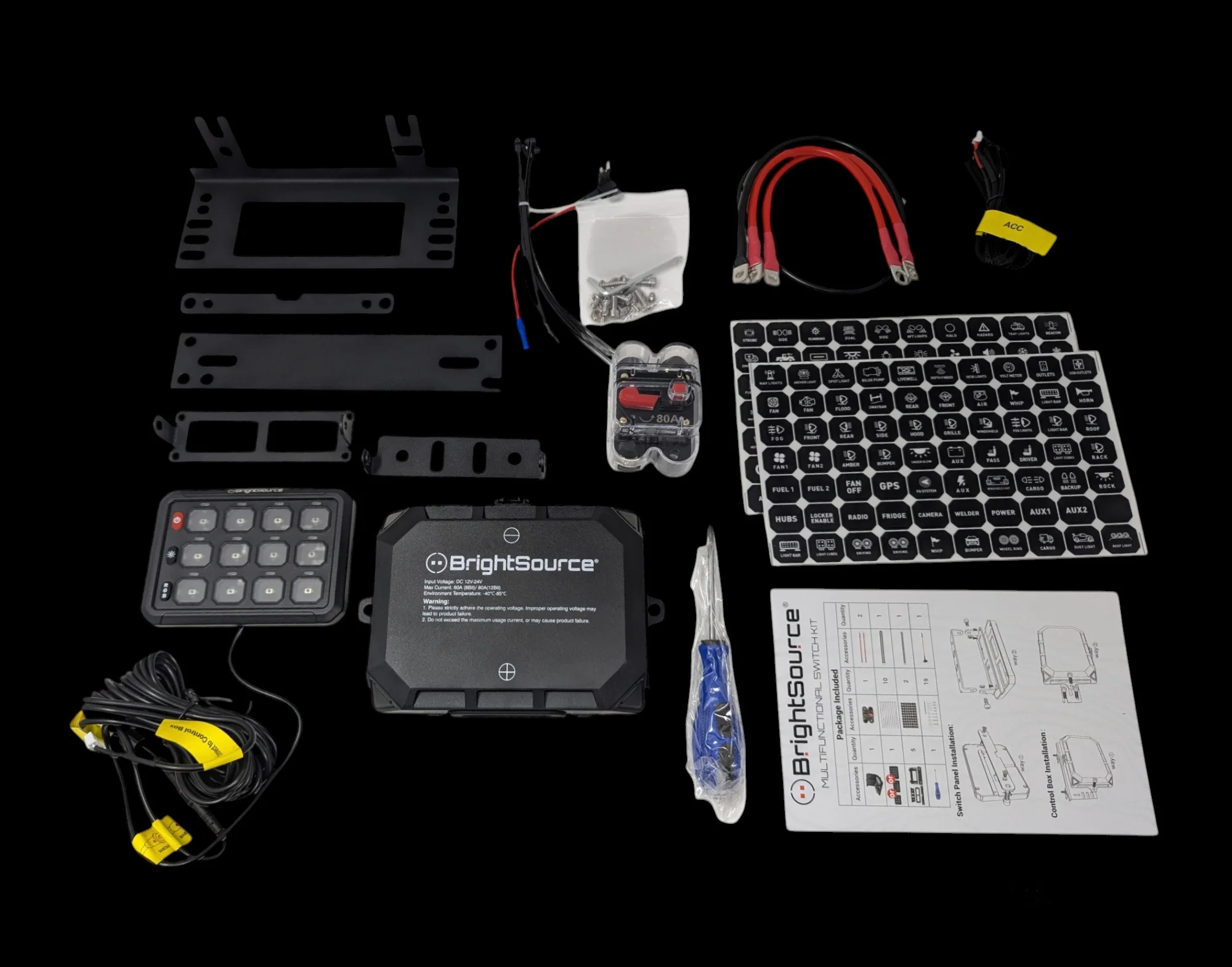

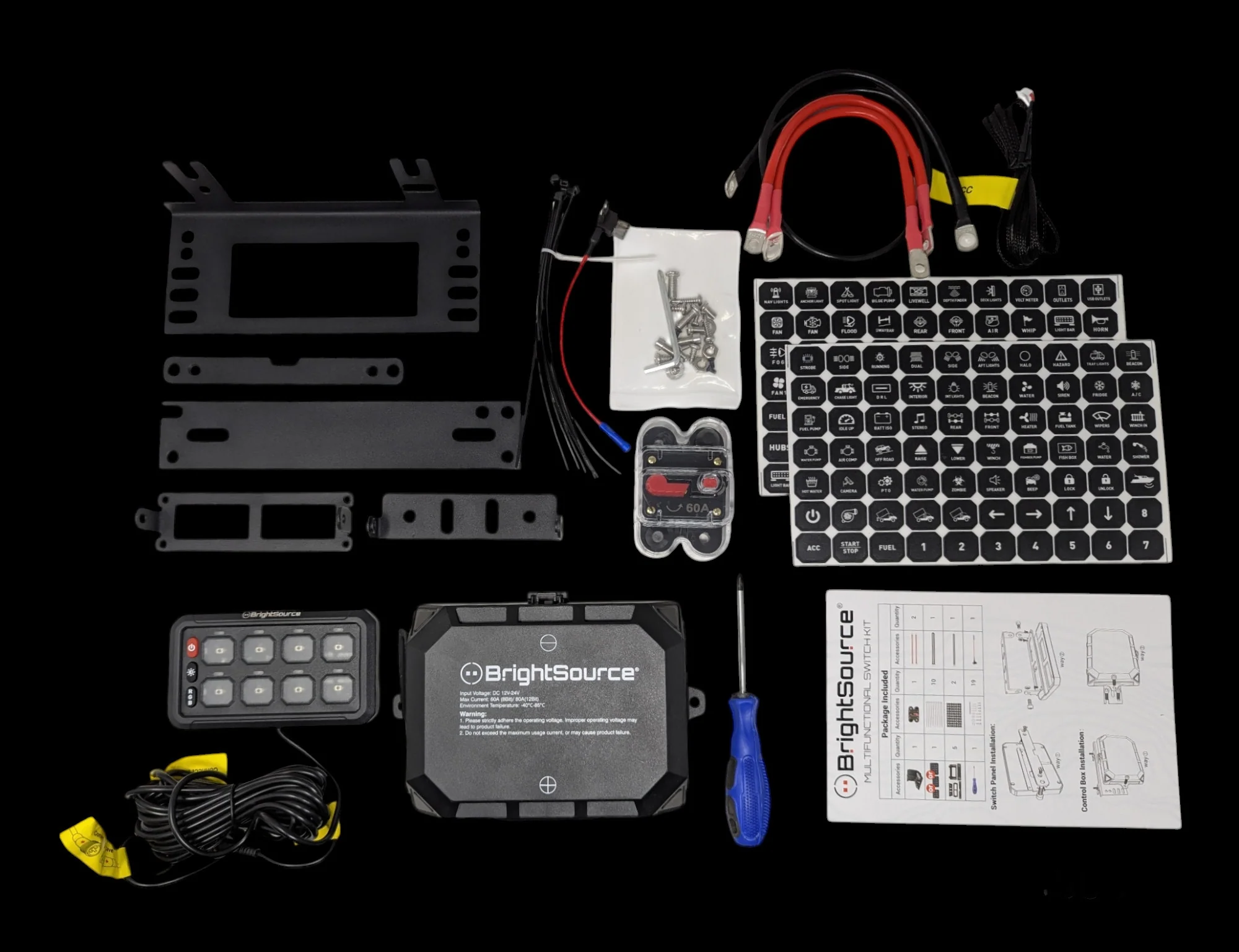

MOUNTING OPTIONS	Vertical and horizontal brackets supplied
MOUNTING BRACKETS	Powder coated aluminum, 3M adhesive
PANEL SIZE	73806: 4″ x 2.8″ x 0.5”(103 x 72 x 13 mm) 73808: 5″ x 2.8 x 0.5″(127 x 72 x 13 mm) 73812: 5″ x 3.5″ x 0.5″(127 x 90 x 13 mm)
CIRCUITS	73806: 1 x 10A; 2 x 15A; 2 x 20A; 1 x 30A 73808: 2 x 10A; 2 x 15A; 2 x 20A; 2 x 30A 73812: 4 x 10A; 2 x 15A; 2 x 20A; 4 x 30A
OPERATING TEMPERATURE	-40° – 105°C
IP RATING	IP65
WEIGHT	73806/08:4.71lbs/2.14kg 73812:4.78lbs/2.17kg
REPLACEMENT FUSES	5 fuses supplied in case of emergency
WARRANTY	2 Years
