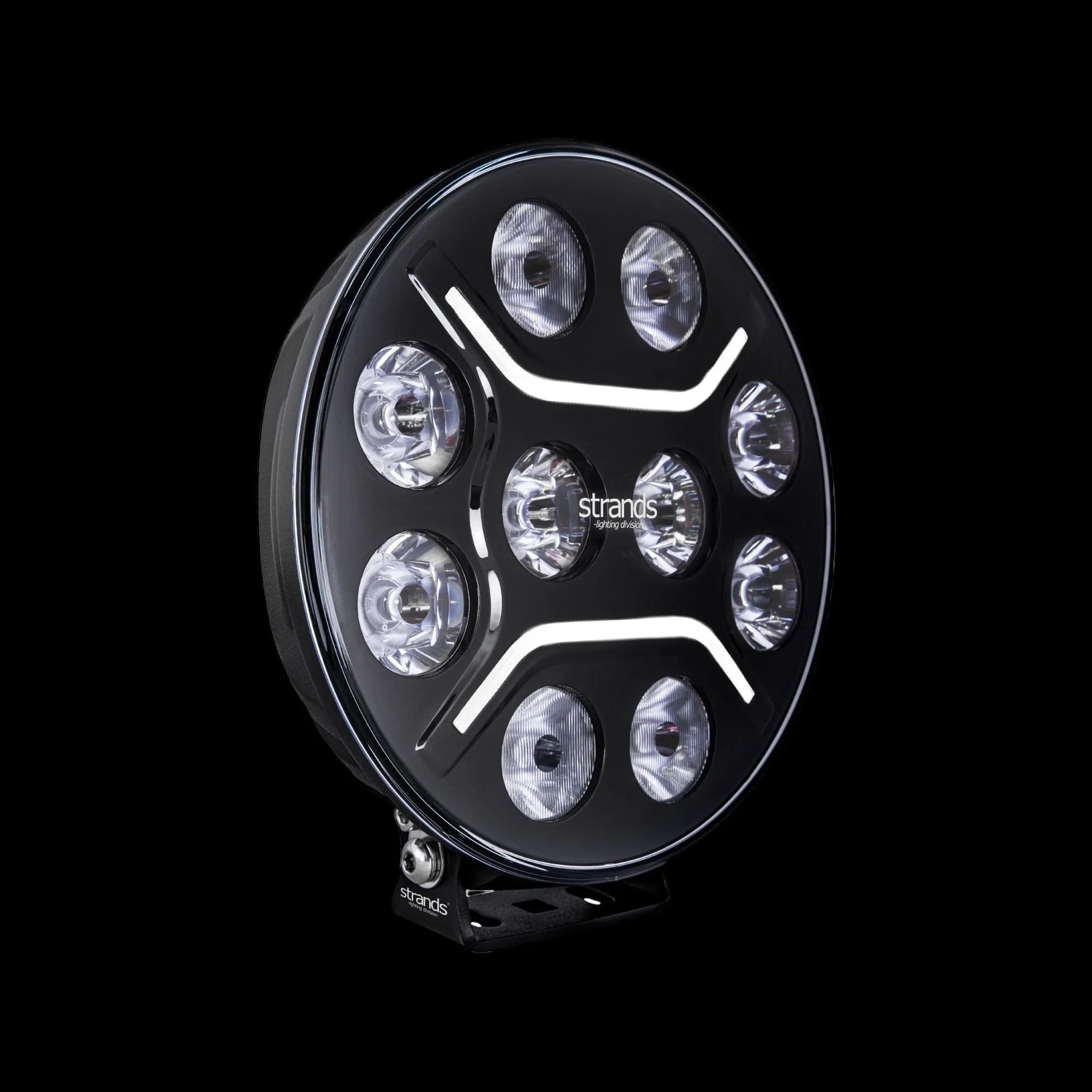

Experience a new level of illumination and design with the new Dark Knight Intense. We have optimized the light distribution to provide even more coverage and exceptional illumination with an impressive 20% more lumen output with 13,500 actual lumens. It also has a softer and more comfortable lighting experience with a new temperature of 5000 Kelvin.

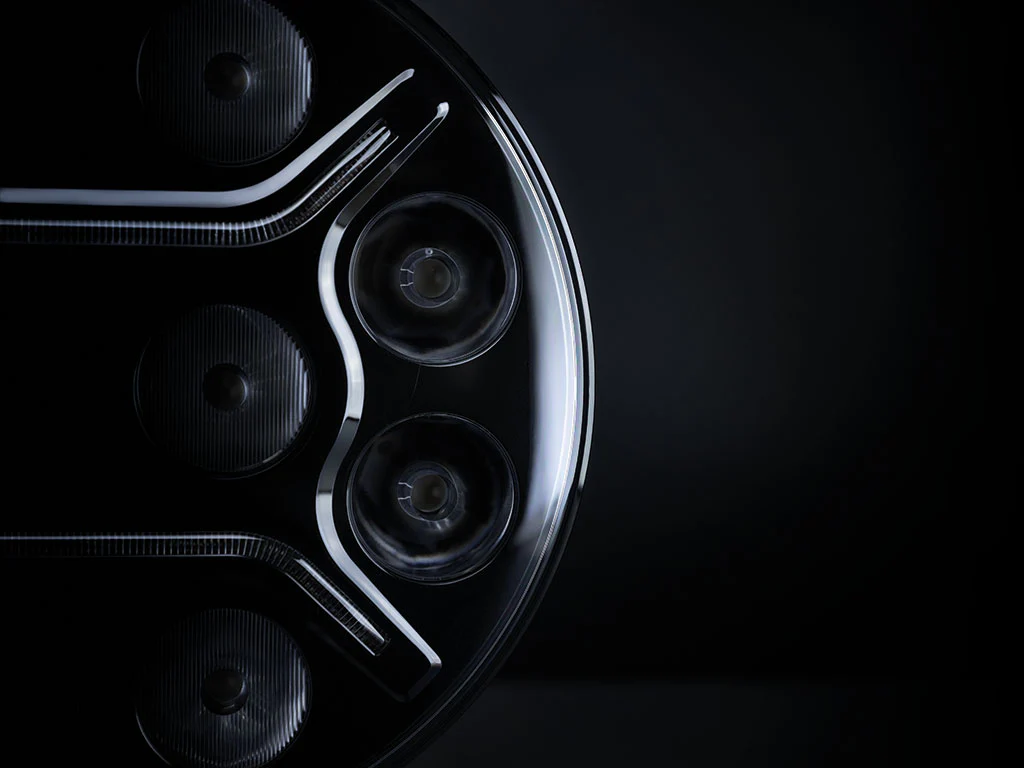

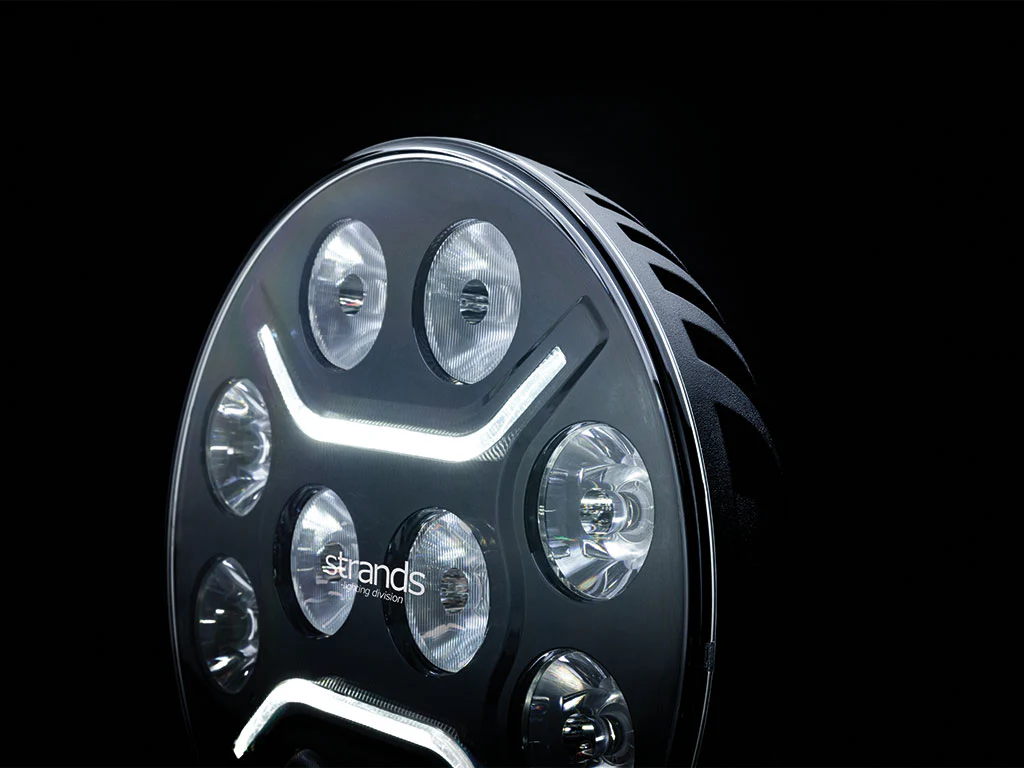

The new Dark Knight Intense is introduced in a brand-new design, now featuring ribbed lines, creating a unique appearance. The all-black inside also brings an exclusive edge, helping your vehicle to reach perfection from all angles. Prepared to step into the future of lighting, where performance meets cutting-edge design.

Specifications

Type of ProductLED	LED
Voltage (V DC)	9-36V DC
Theoretical lumen	16100
Actual lumen	13500

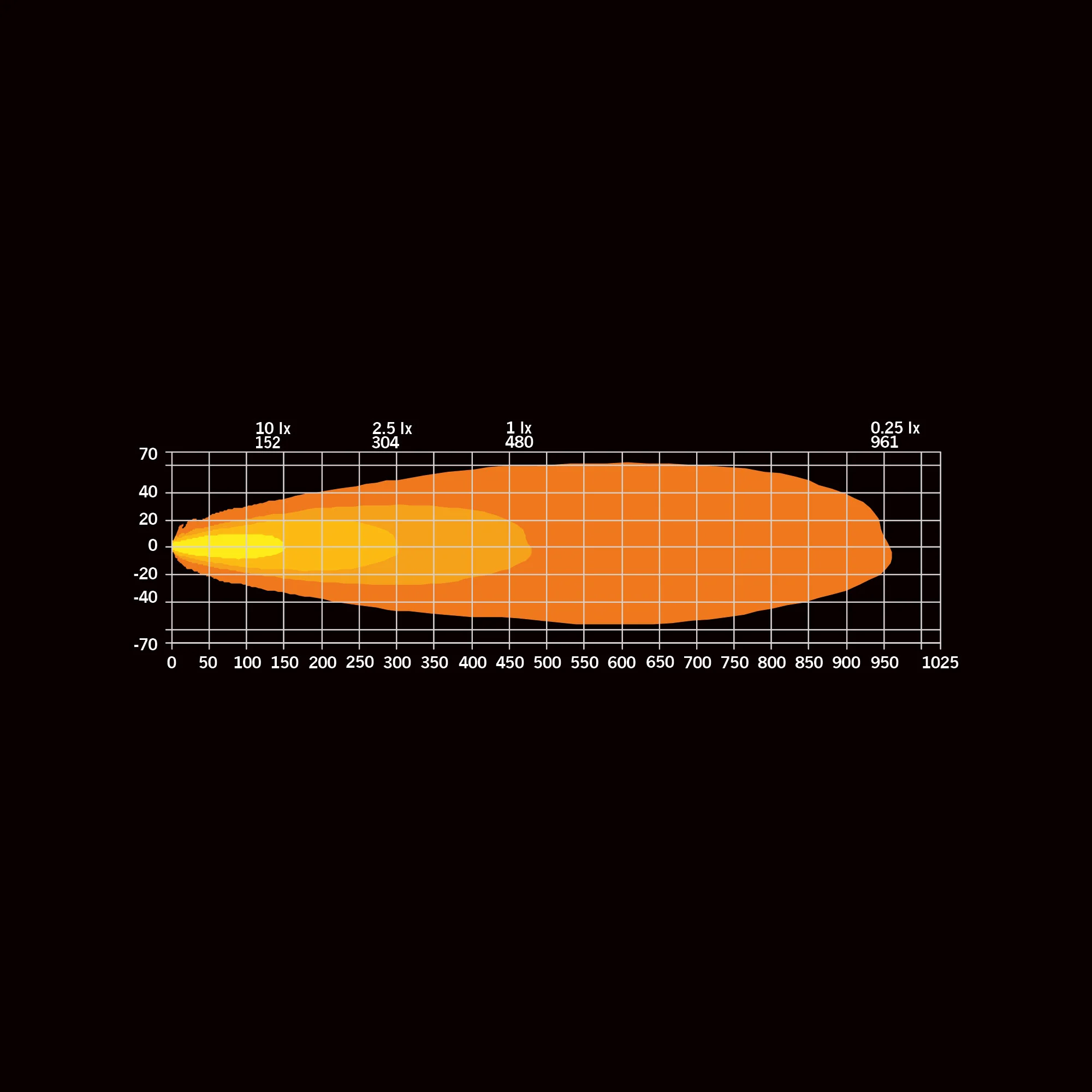

1 LUX @ m	480
Kelvin	5000
IP-class	68/69K
Color housing	Black
Color lens	Clear
Beam pattern	Combo

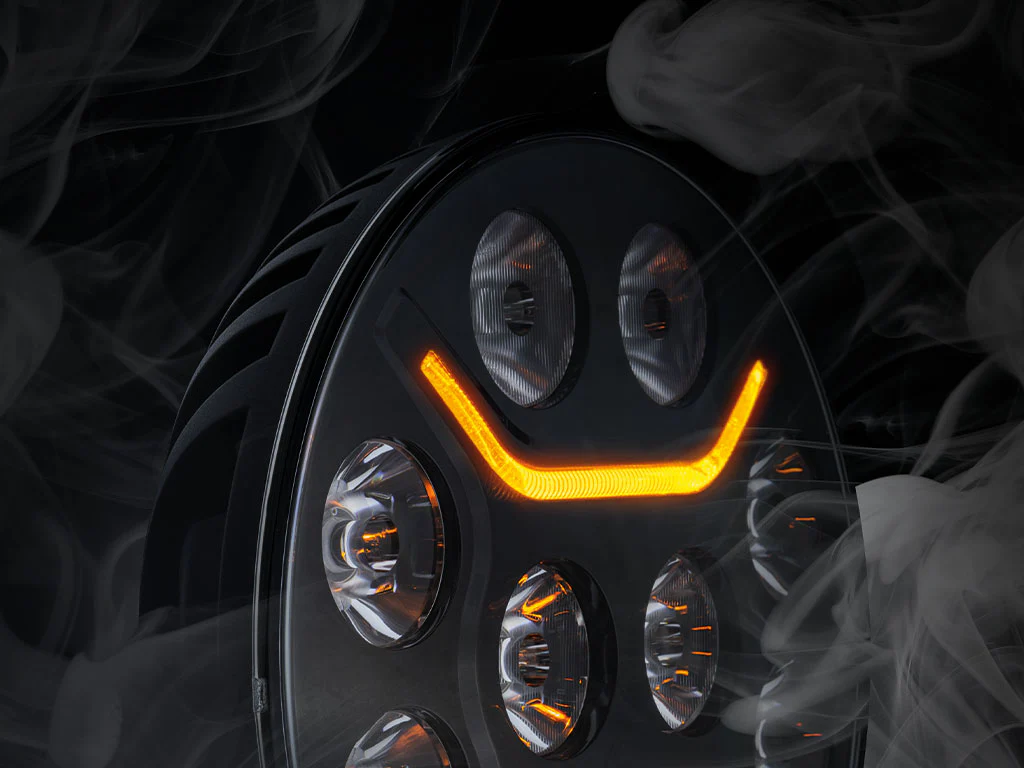

Position light	Yes, amber and white
Connection	DT-4
Cable length (mm)	500

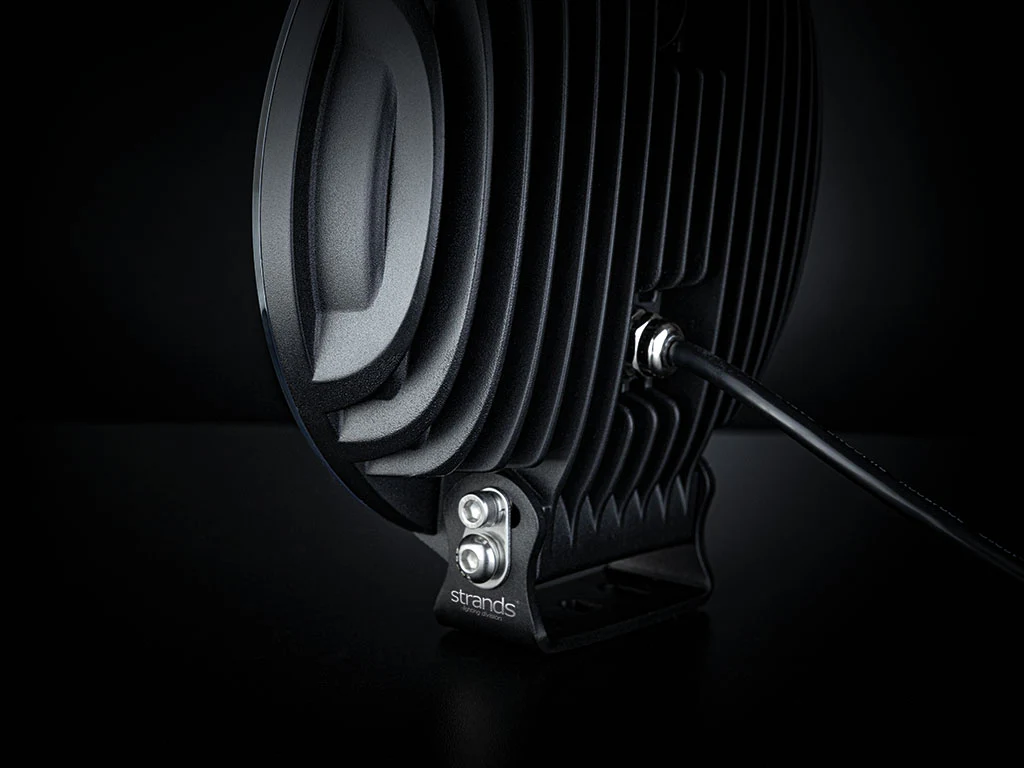

Material bracket	Stainless steel
Material housing/chassi	Aluminium
Material lens	Polycarbonate

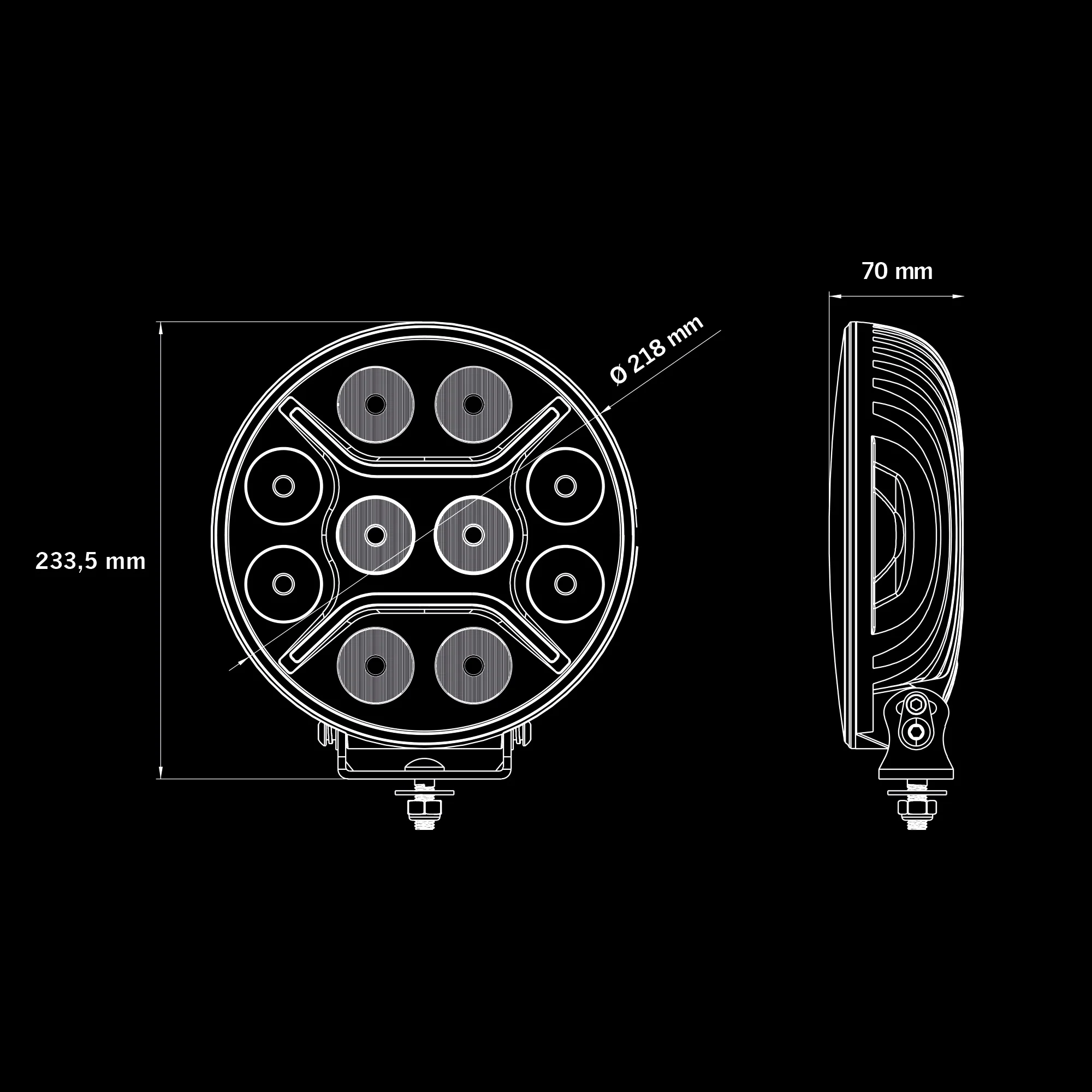

Depth (mm)	70
Height including bracket (mm)	233.5
Diameter (mm)	218
Operating temperature	-40 - +60°C
According to regulation	ECE R7, R112
Reference number	45
EMC	ECE R10
