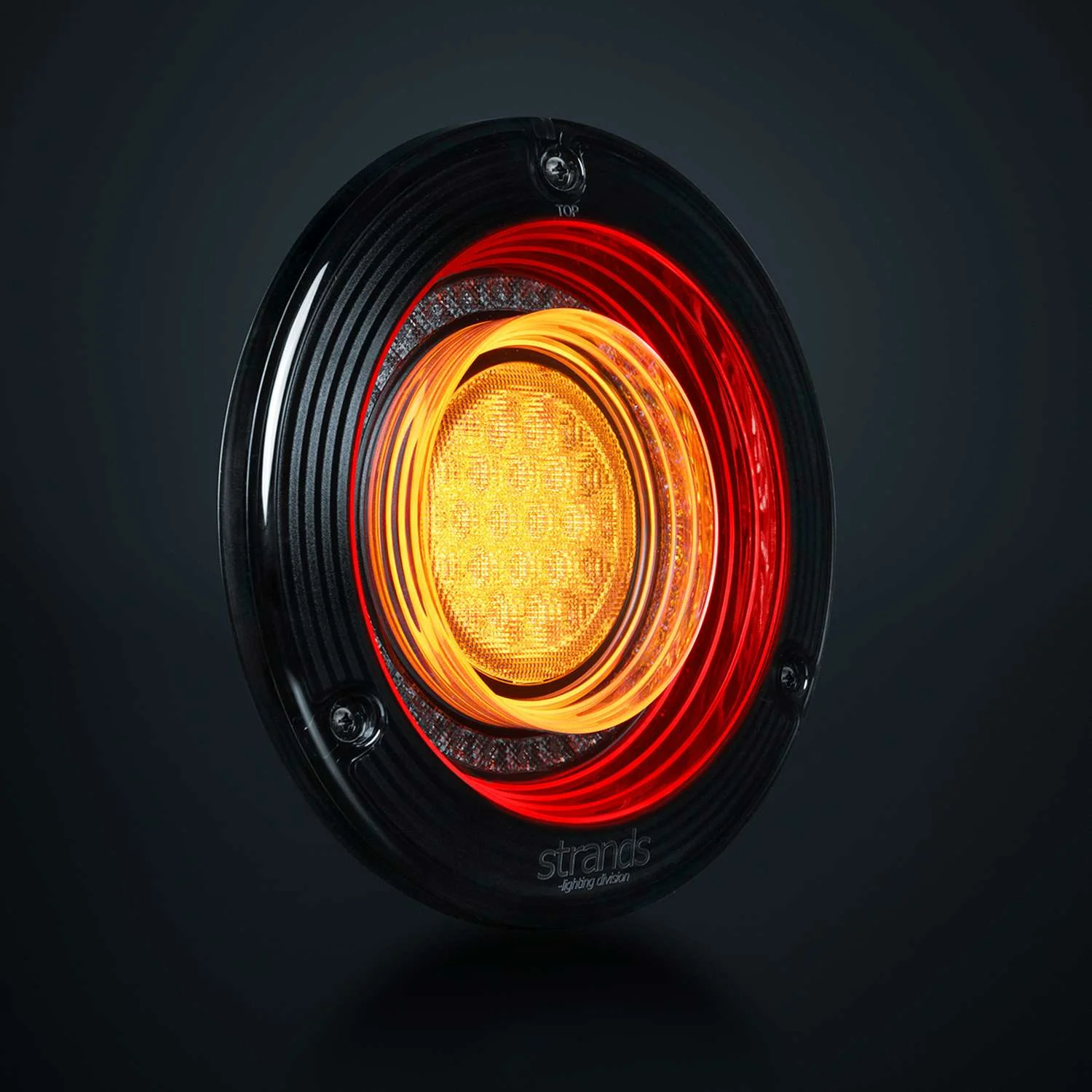

The FOR9T Orbi 3 function tail light is a new, high-quality tail light in the unique style of FOR9T. It features a tail light, brake light, and indicator light. The dark lens will blend seamlessly into the vehicle’s surface. It’s a perfect match for the shape of the incredible FOR9T lights. This is the perfect round tail light when it comes to style and function. It’s constructed from durable materials, ensuring a long-lasting and resilient product. As an additional assurance of its durability, it’s covered by Strands’ 3-year warranty. The FOR9T Orbi is E-approved R148. It’s available in two options: tail/brake/indicator and reverse/fog. Orbi measures 151 mm in diameter, 114 mm CC, and has a 2,5 m cable. Thanks to this, it’s easy to replace your old lights. Screws, nuts, nylon washers and EVA pad is included in the package.

Specifications

Unit	pcs
Voltage	10-40V DC
Theoretical effect	16W
Consumption	15.5W
Functions	Tail, Brake, Indicator
Consumption specific function
Connection	Cable
Cable length	2500mm
Color housing	Black
Color lens	Dark
Color LED´s	Red/amber
Material housing/chassi	Polycarbonate
Material lens	Polycarbonate
Depth	56mm
Diameter	151mm / 114mm
CC	130mm
Weight	0.42kg
IP-class	IP67
Operating temperature	-30 - +65°C
E-approved	Yes
According to regulation	ECE R148
EMC	ECE R10

Manual

Download Manual
