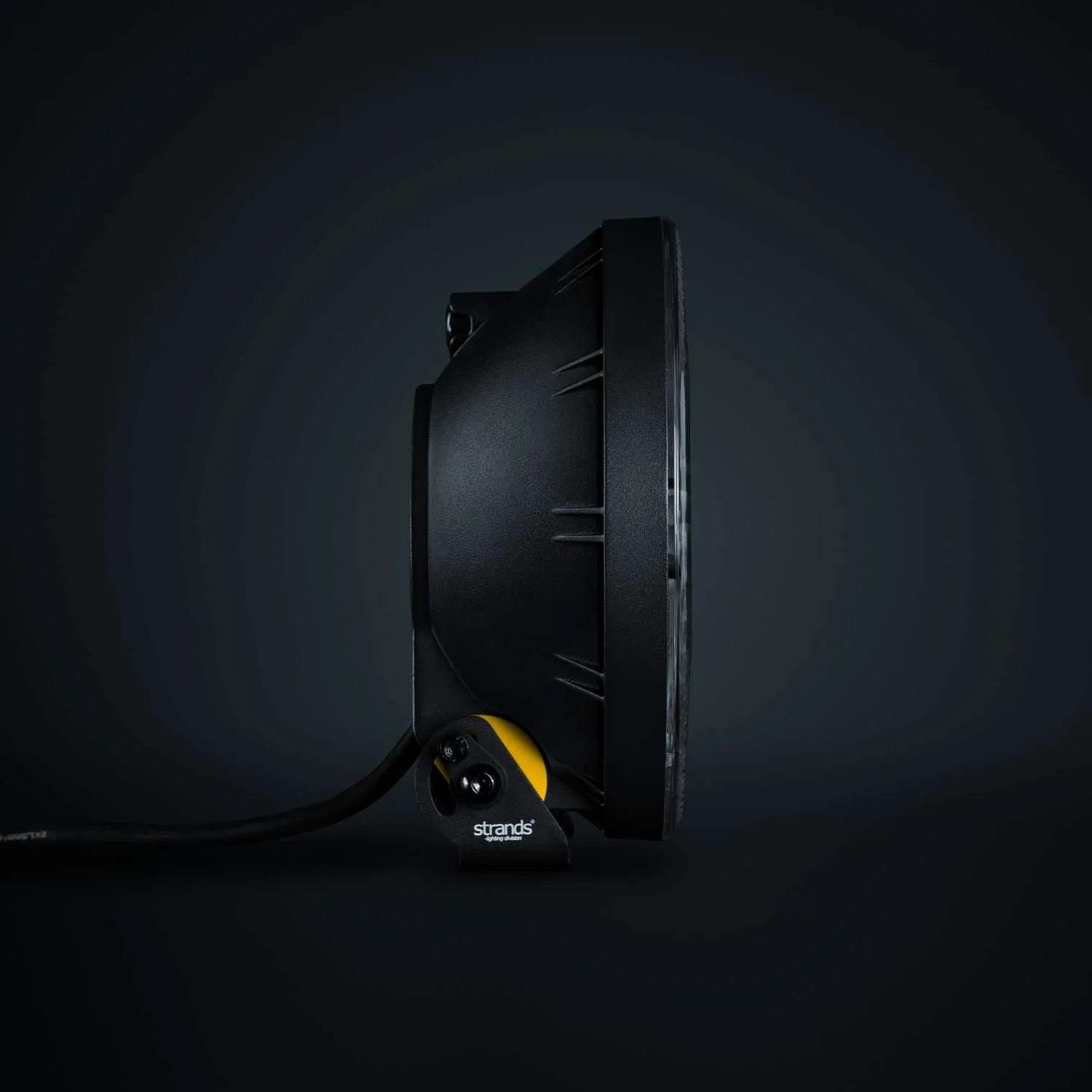

IZE LED OG Driving Light (9")

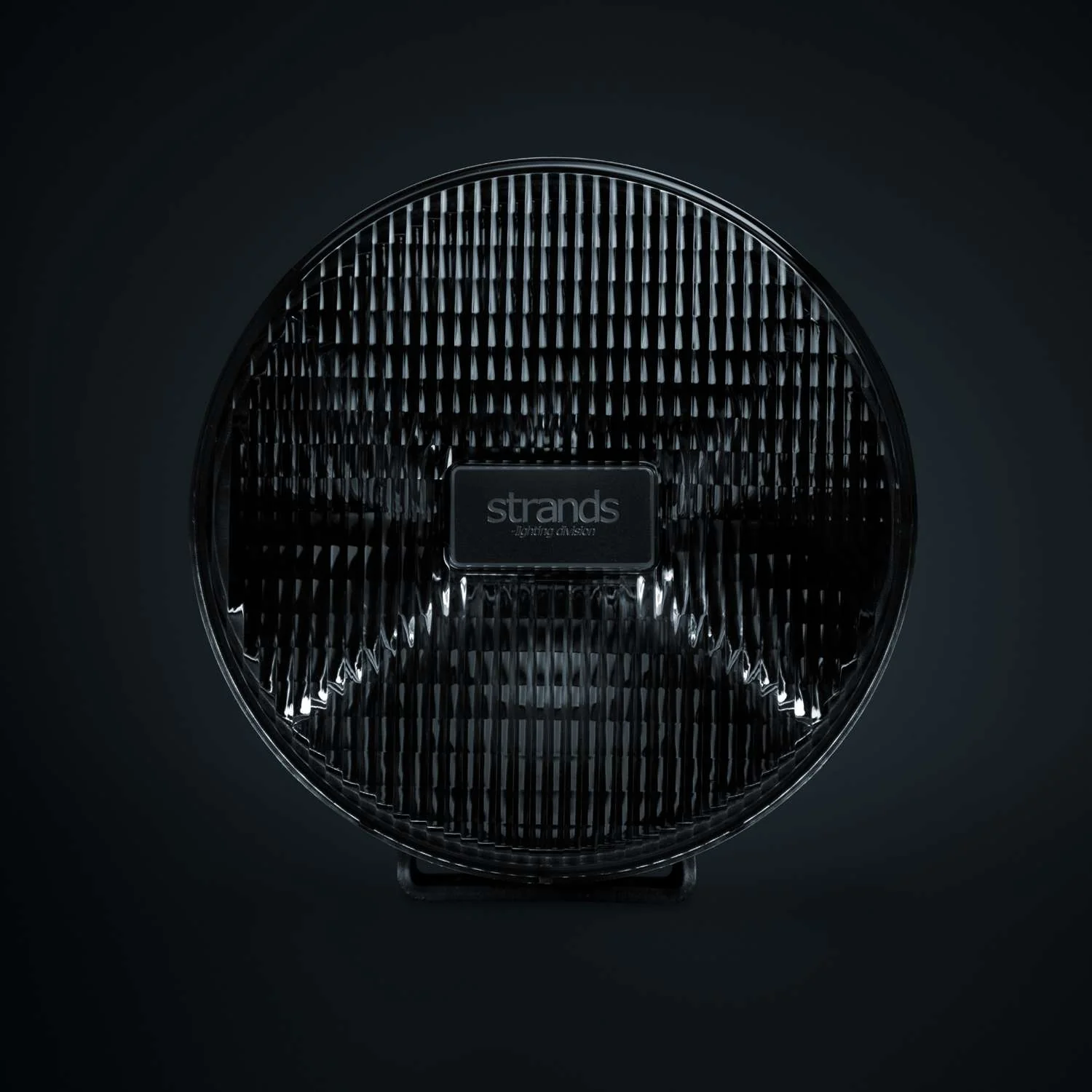

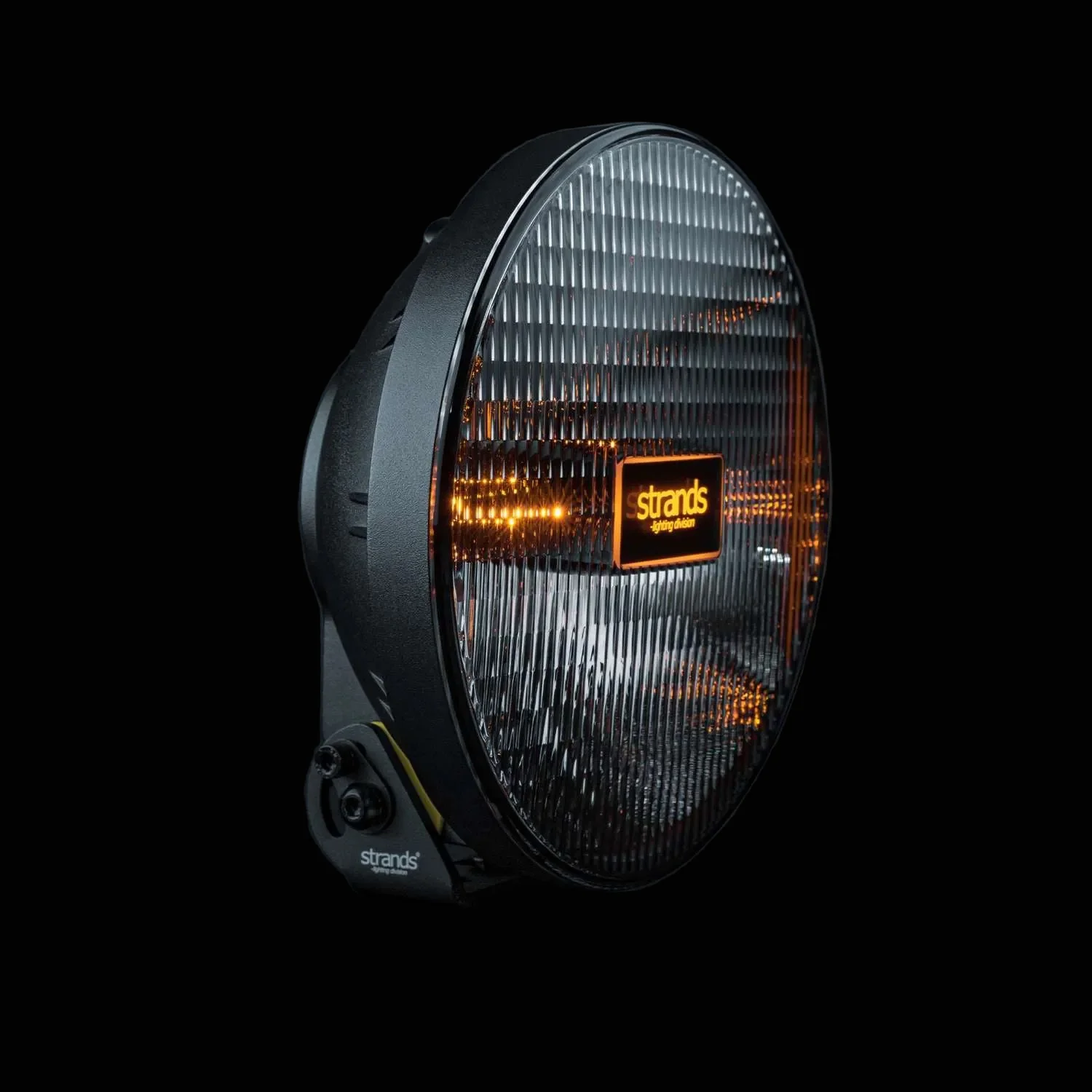

Modern power and old-school style. The IZE LED OG provides top-notch illumination with 12000 actual lumens and a 500-meter range in Xperience mode. The E-mode is E-approved R148/149 with reference number 20. It’s suitable for Canadian roads and poor weather conditions, as it lessens glare from snow and rain. The extended beam pattern has a colour temperature of 4500 K. A dual-colour position light in white and amber creates a stunning old-school glow, just like in old times. The position light diodes are invisible when not used, so that you can enjoy the old-school design and expression of the lens. It’s inspired by the classic glass lenses but made from durable polycarbonate for modern quality. Thanks to the IP rating of IP68/69K, it can withstand both dirt and water. It’s covered by Strands’ 3-year warranty to guarantee a long lifespan.
This light is sold individually and does not include a harness.
The cable coming off the light does not have a connector on it.
Specifications
- Unit pcs
- Voltage 12-36V DC
- Theoretical effect 180W
- Consumption E-mode: 30W / Xperience mode: 172W
- Functions High beam, Amber and white position light
- Consumption specific function White pos. light: 1W Amber pos. light: 1W
- Theoretical lumen 13500lm
- Actual lumen E-mode: 3220lm / Xperience mode: 12000lm

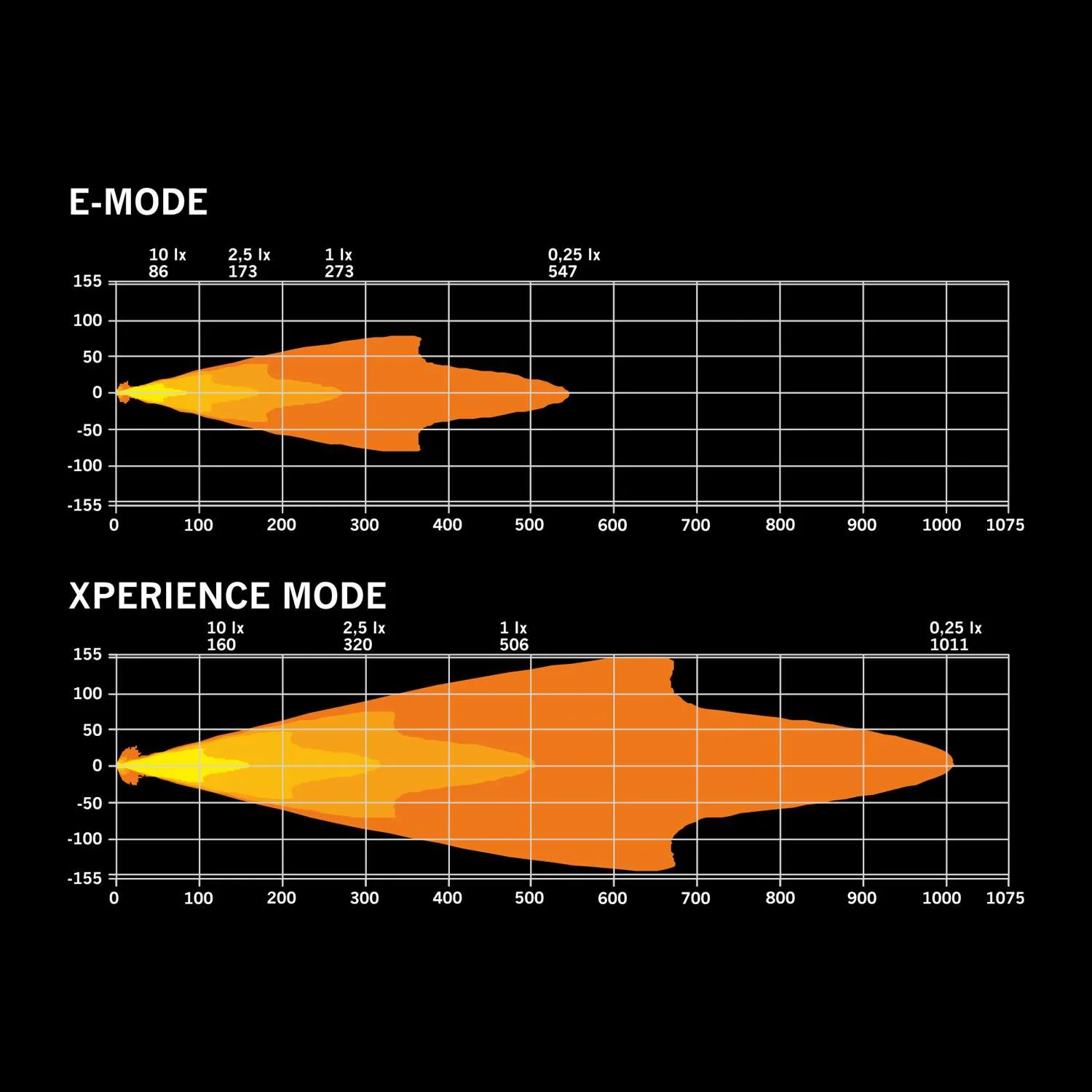

- 1 lux @ E-mode: 273m / Xperience mode: 506m
- Color temperature 4500K
- Beam pattern Extended beam
- Beam angle 33,2°
- Connection Cable
- Cable length 2500mm
- Color housing Black
- Color lens Clear
- Color LED´s White/amber

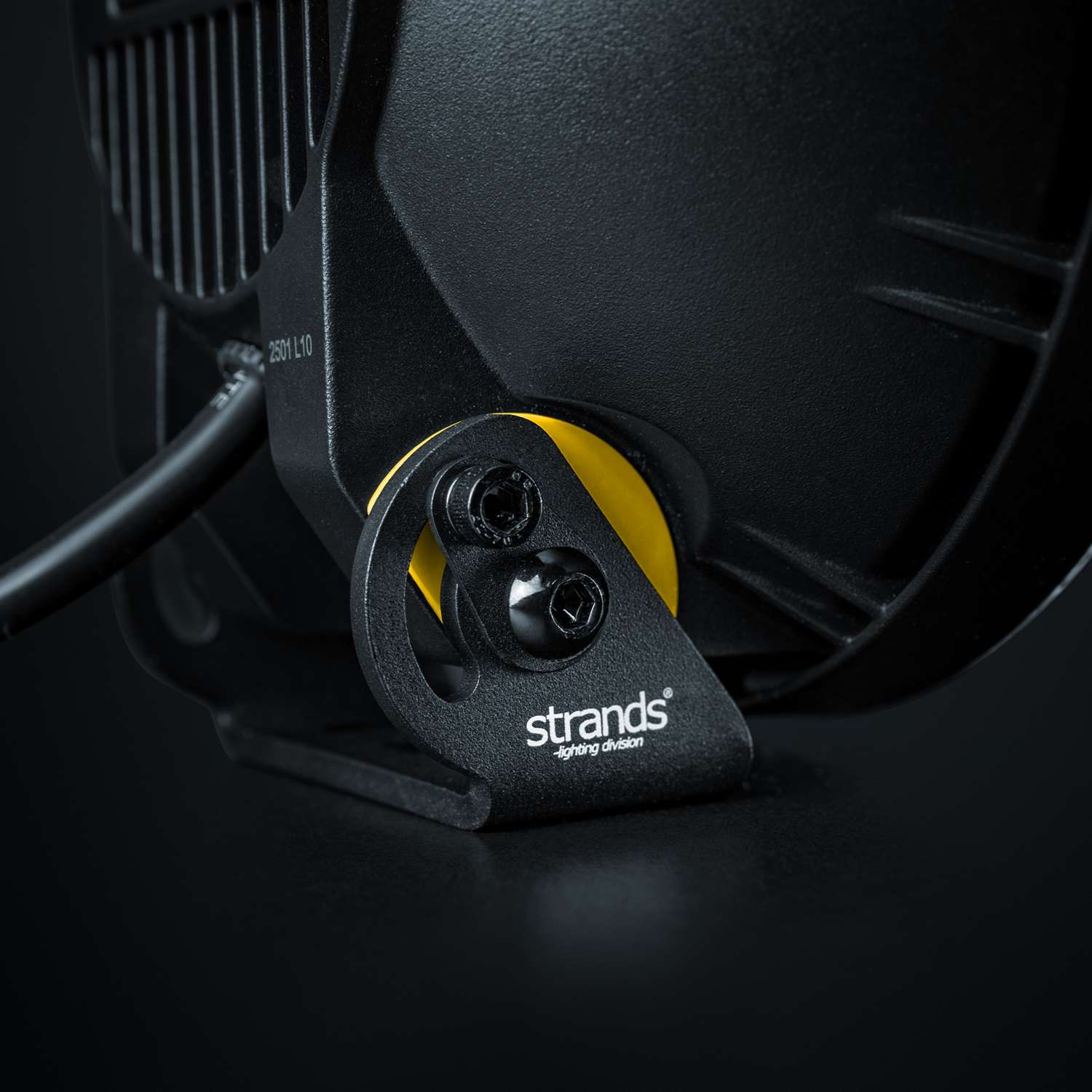

- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate

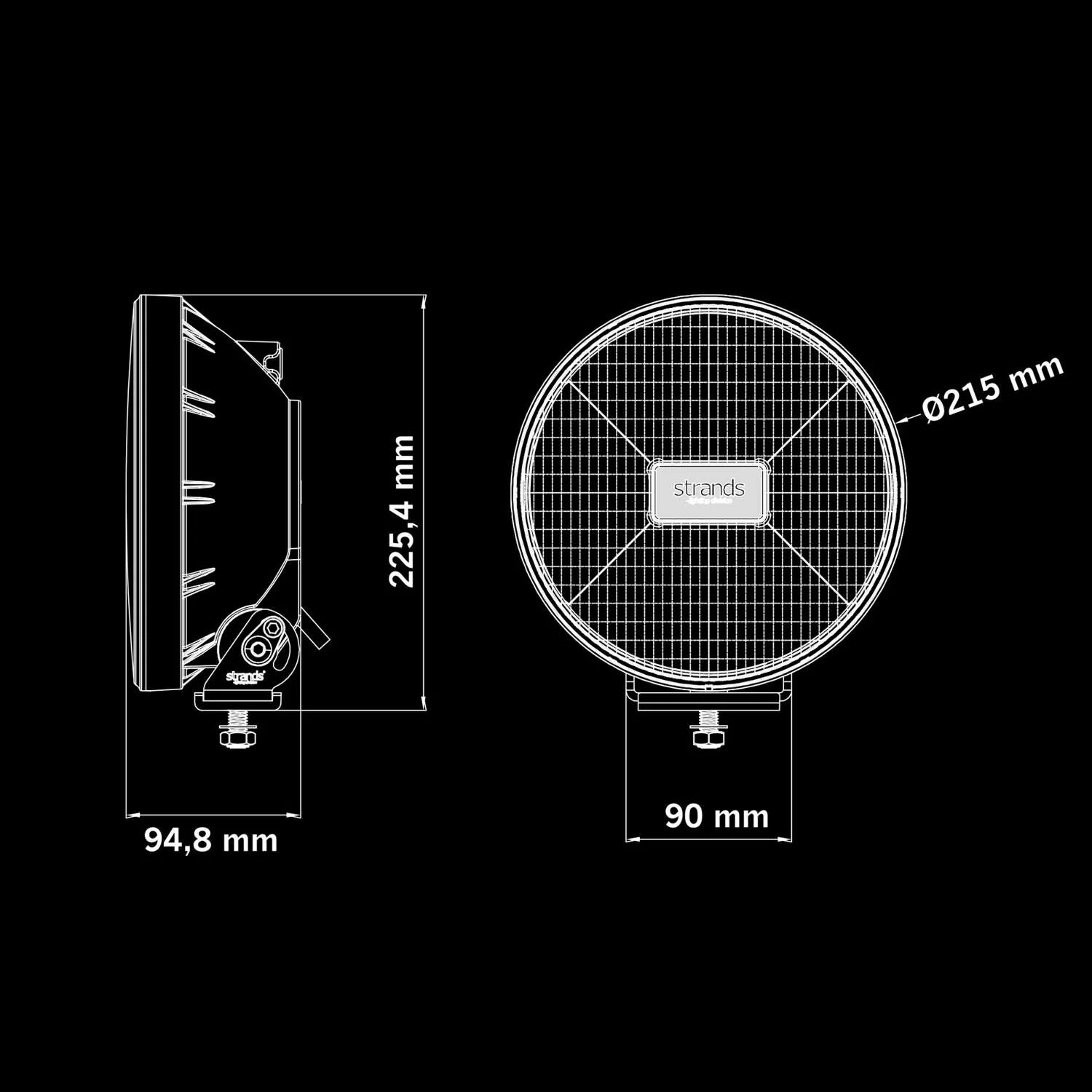

- Depth 94,8mm
- Height including bracket 225,4mm
- Diameter 215mm
- Weight 2,0kg
- IP-class IP68/69K
- Operating temperature -40 - +60°C
- E-approved Yes
- ADR-approved No
- According to regulation ECE R148, R149
- Reference number 20
- EMC ECE R10
