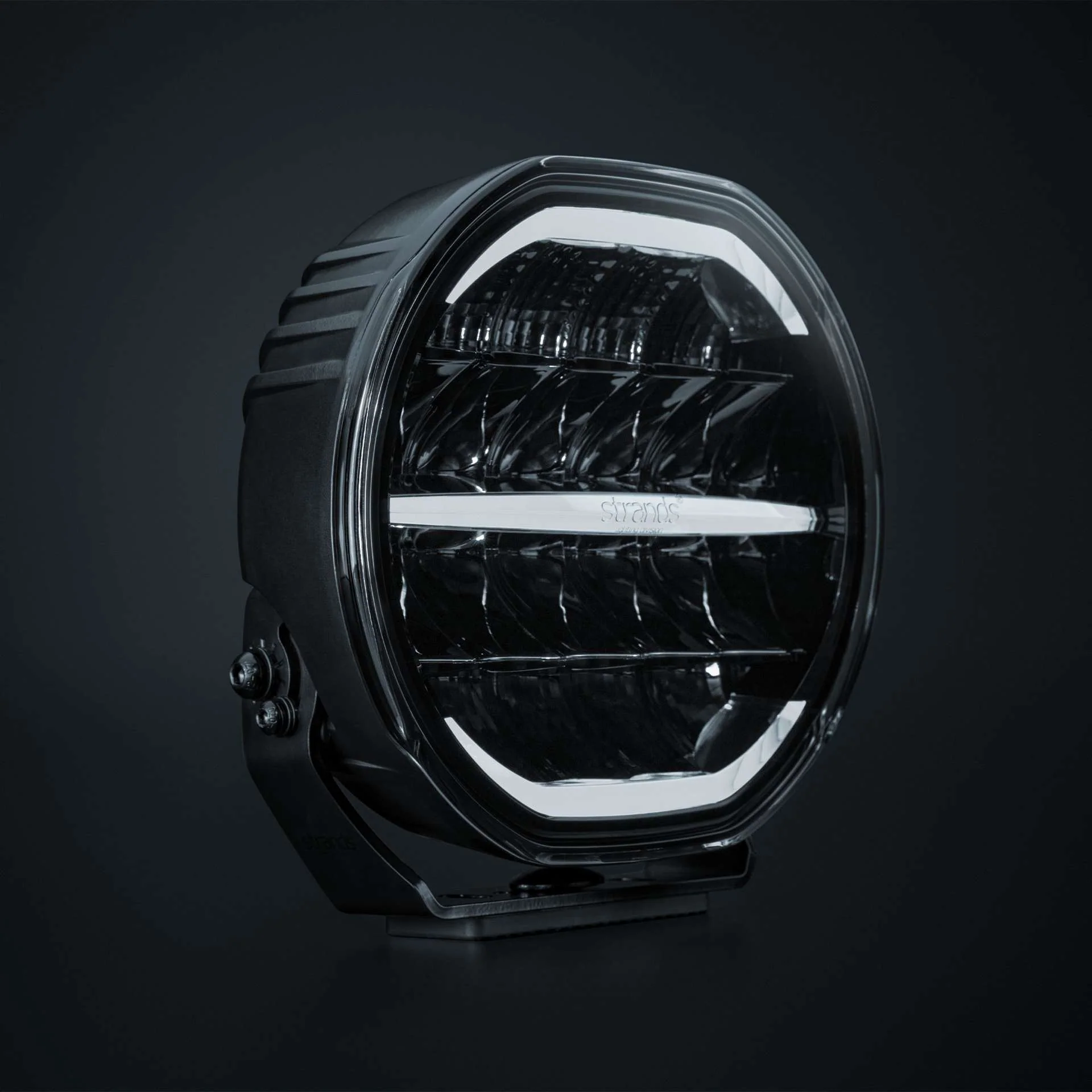

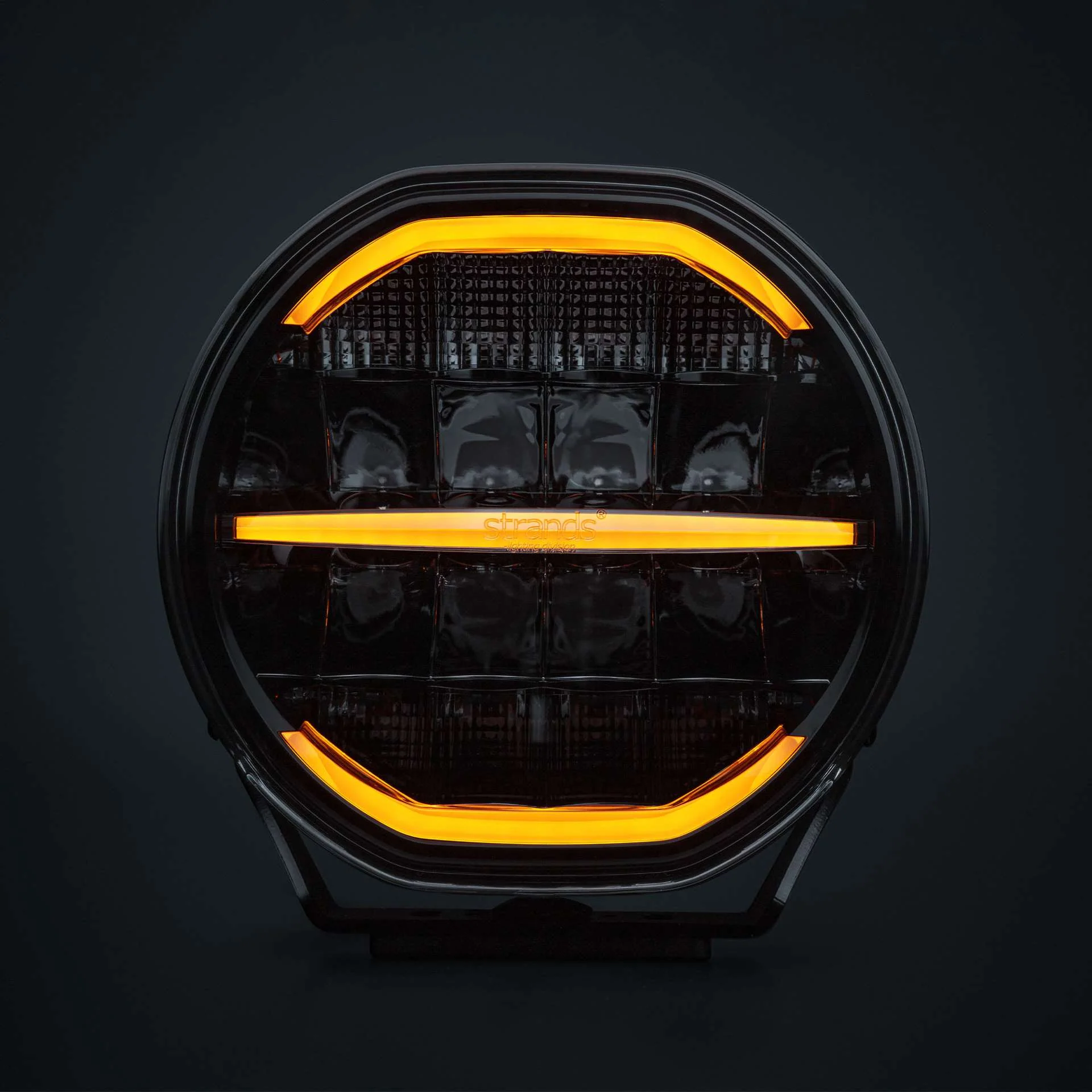

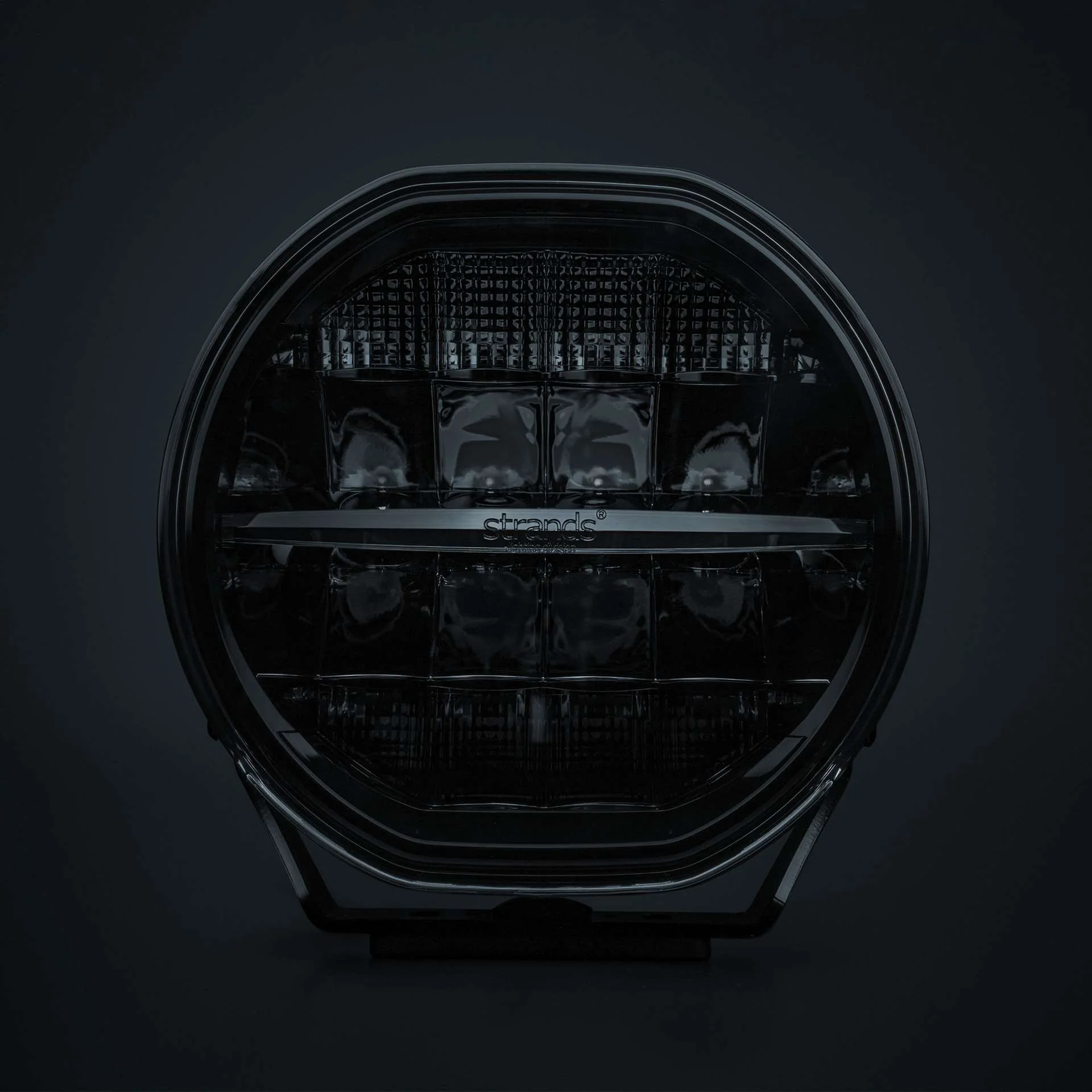

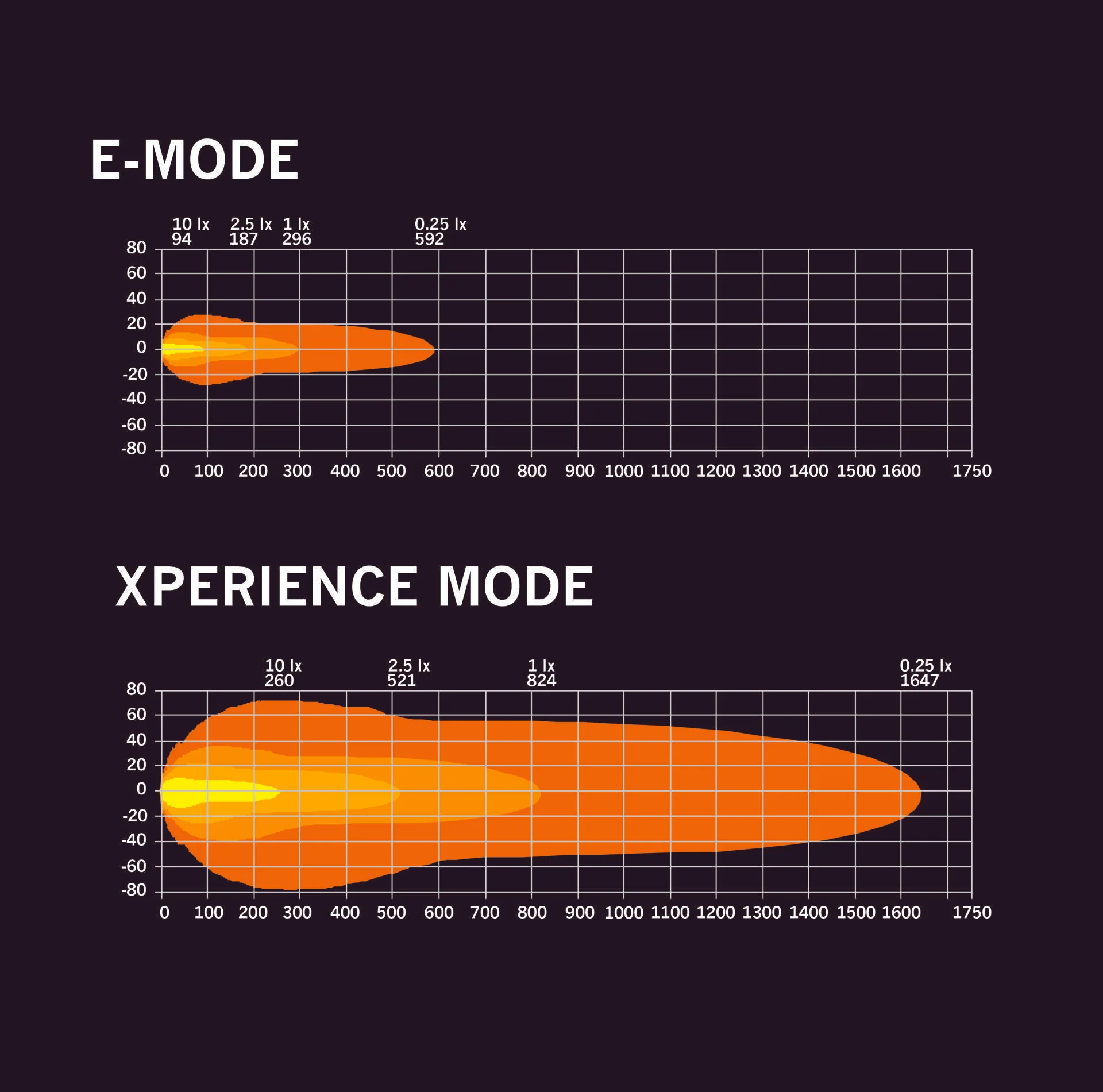

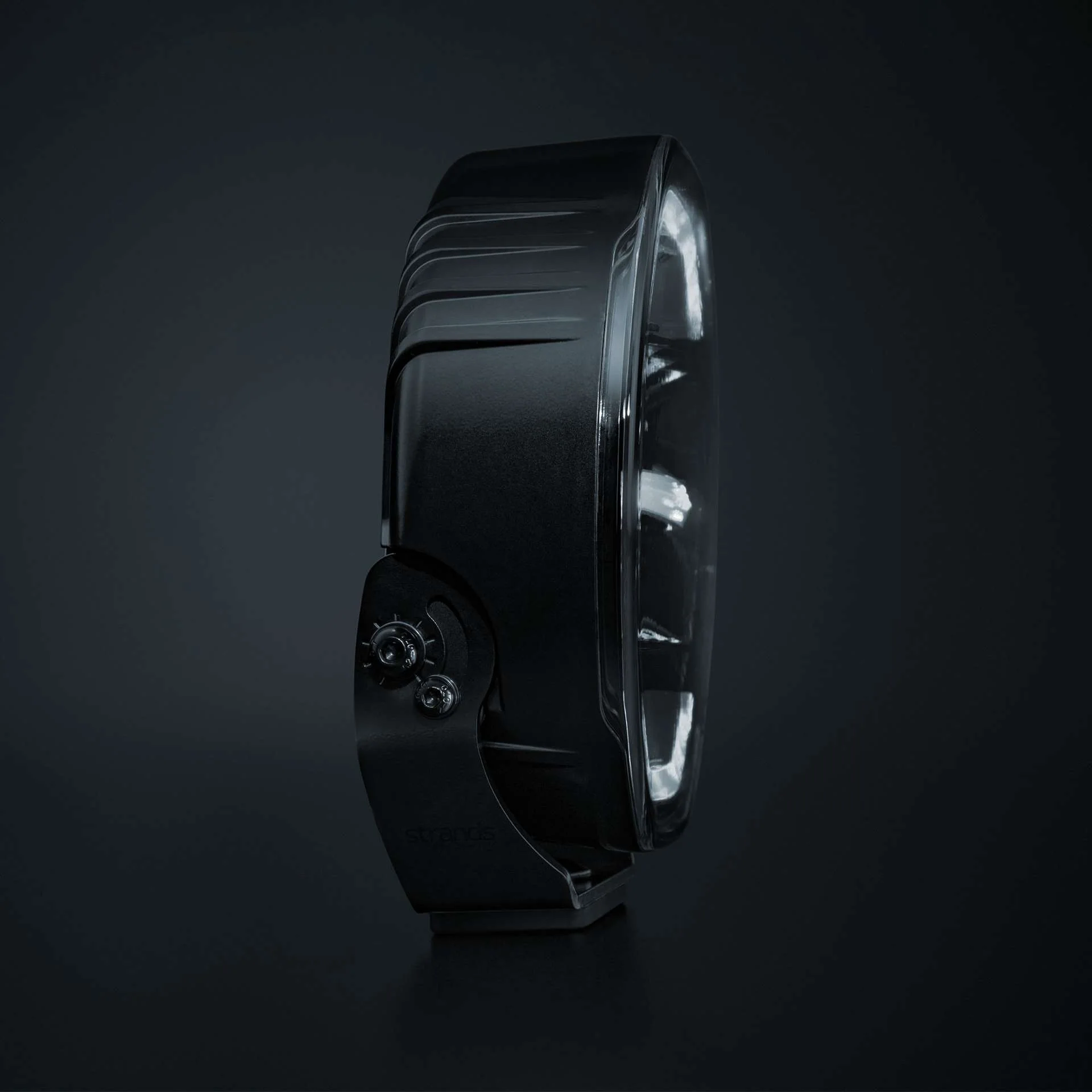

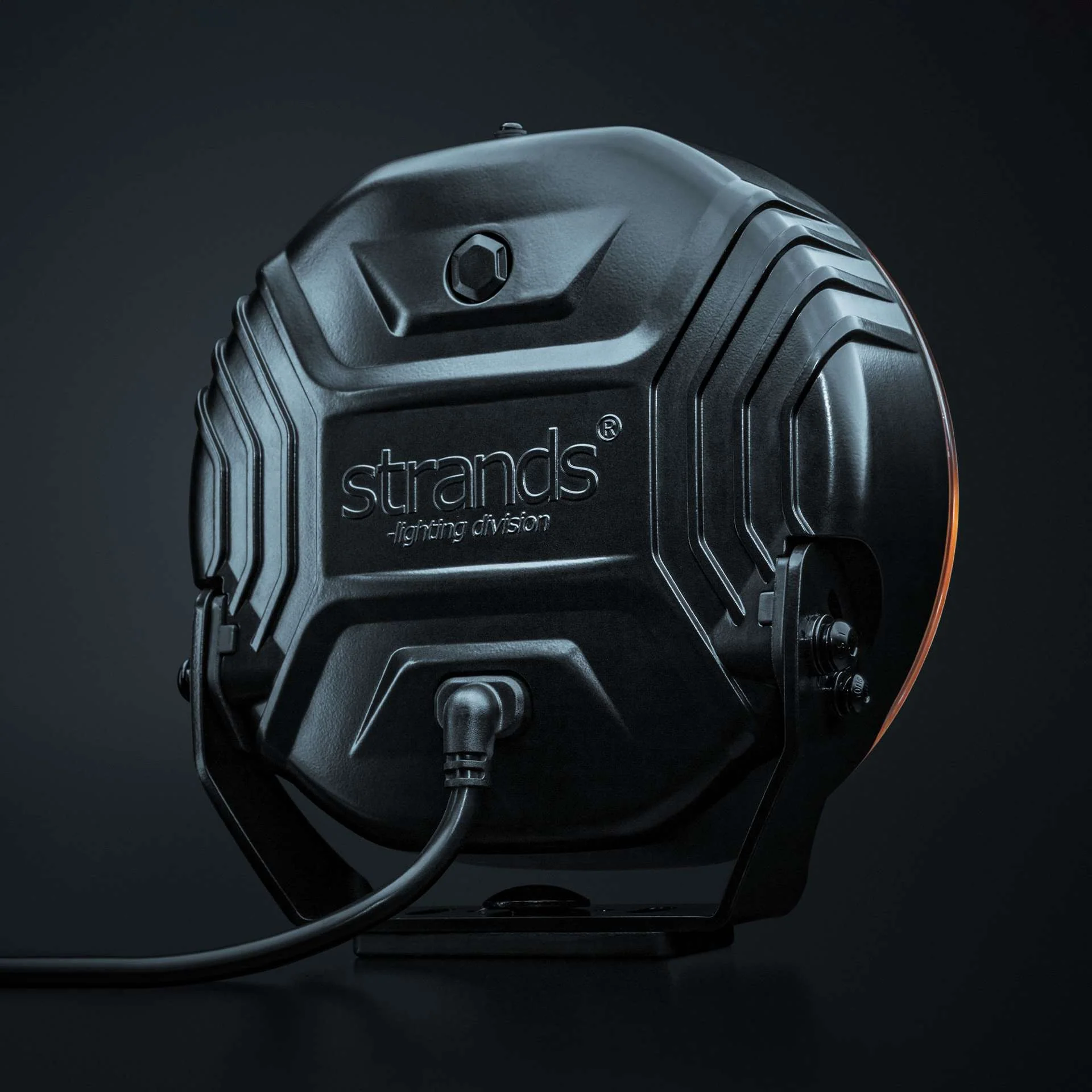

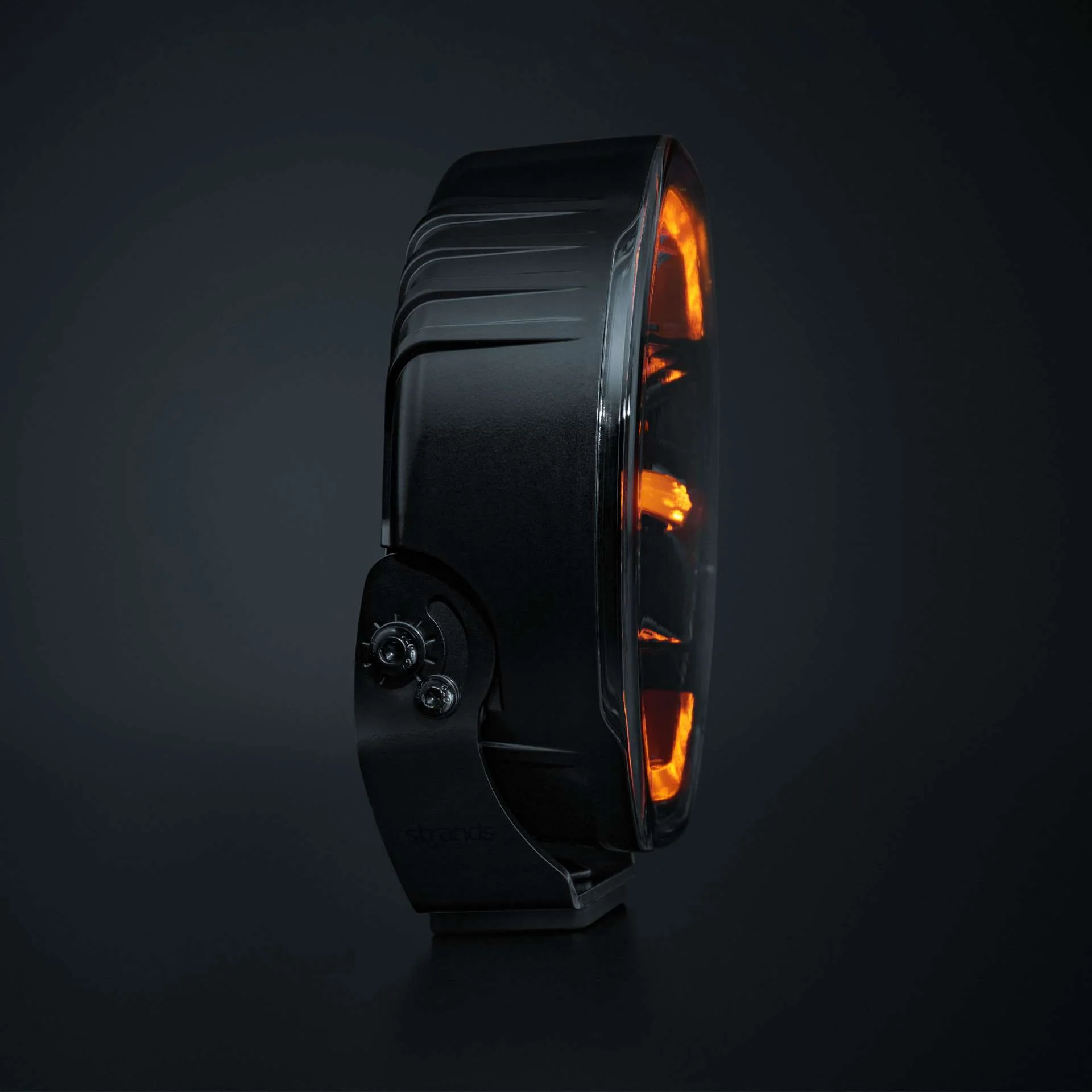

The Nuuk D-Line range has a new addition. This 9” driving light has a range of +800 meters in Xperience mode thanks to its 13400 actual lumens. The beam pattern features a new design that combines the best of both width and range, far and near the vehicle. Now, you don’t have to choose between long-range or close-range visibility: the Nuuk D-Line has you covered. The E-mode is E-approved (R148/R149) with reference number 20. The D-Line driving light features a new position light design. It is built into the reflector, fully utilizing the mirror-like surface to create a vibrant glow with white and amber light. It is IP-rated IP69K, constructed with sturdy materials, and protected by a new coating. You can be sure this driving light will be a long-lived addition to your vehicle, and Strands’ 3-year warranty covers it.

Specifications

Unit: PCS
Voltage (DC): 10–32V DC
Theoretical effect: 185W
Consumption: 171W
Functions: Amber Pos.; White Pos.; Driving beam
Consumption specific function: White Pos. 1W; Amber Pos. 1W; E-mode 22W; X-mode 171W
Theoretical lumen: 18000 lm
Actual lumen: 13400 lm
1 lux @: 824 m
Color temperature: 5700K
Beam pattern: Long-distance beam
Beam angle: 13.6°
Connection: Cable
Cable length: 2500 mm
Color housing: Black
Color lens: Clear
Color LED’s: White / Amber
Material bracket: Stainless Steel
Material housing/chassis: Aluminium
Material lens: Polycarbonate

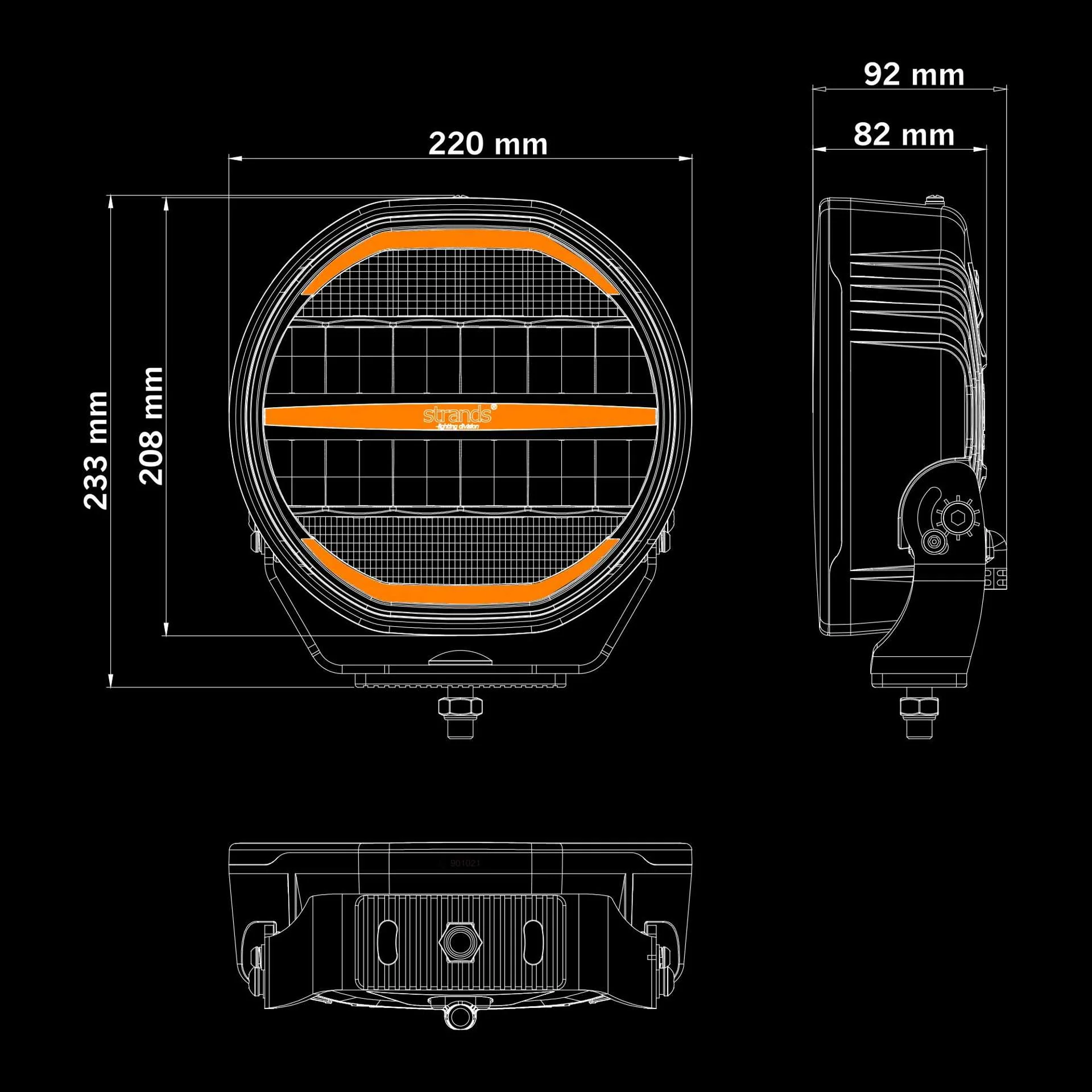

Length: 220 mm
Depth: 82 mm
Height: 208 mm
Height including bracket: 233 mm
Weight: 2.61 kg
Diameter: 220 mm
IP-class: IP69K
Operating temperature: -40 to +60°C
E-approved: Yes
ECE approval: R10.06; R148; R149
Reference number: 20
