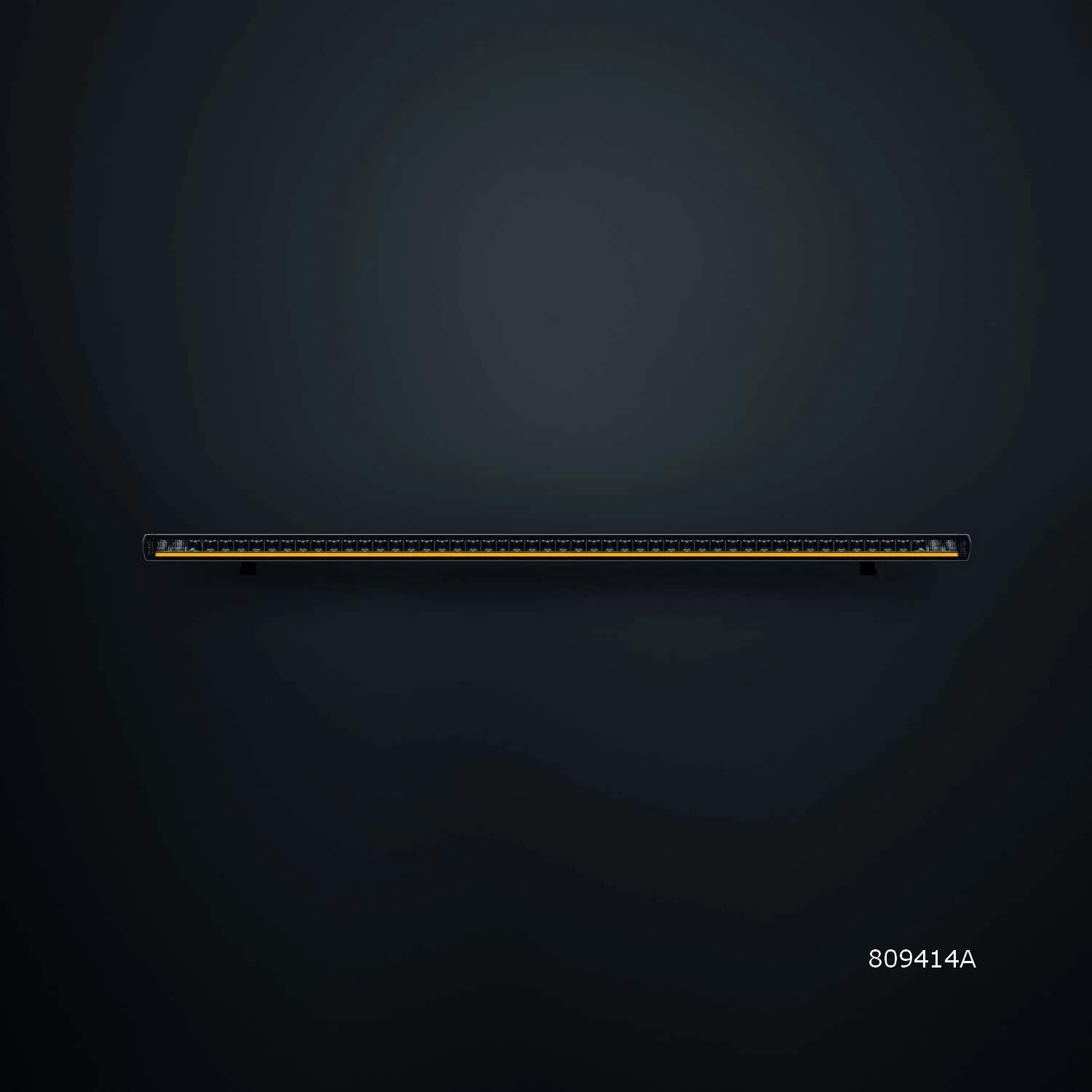

Welcome to the new Siberia XPA Single Row LED bar. These models have an extended beam pattern with an E-mode and high powered Xperience mode. This means a much higher output than previous LED bars. The greater visual range creates high forward visibility, and the 5700-kelvin color temperature ensures impeccable illumination. It is incredibly sturdy and long-lived and can withstand vibrations, rough roads, and hard use. It has an IP rating of IP68/IP69K, which ensures high protection against dirt and water. Siberia XPA SR is covered by Strands Lighting Divisions’ 3-year function warranty and is EMC-approved according to ECE R10.

The Hello function is incorporated in the 22", 32", 42" and 50" bars. To operate the Hello function: simply flash the light twice in quick succession, and the position lights will activate a dynamic signal.  See video here.

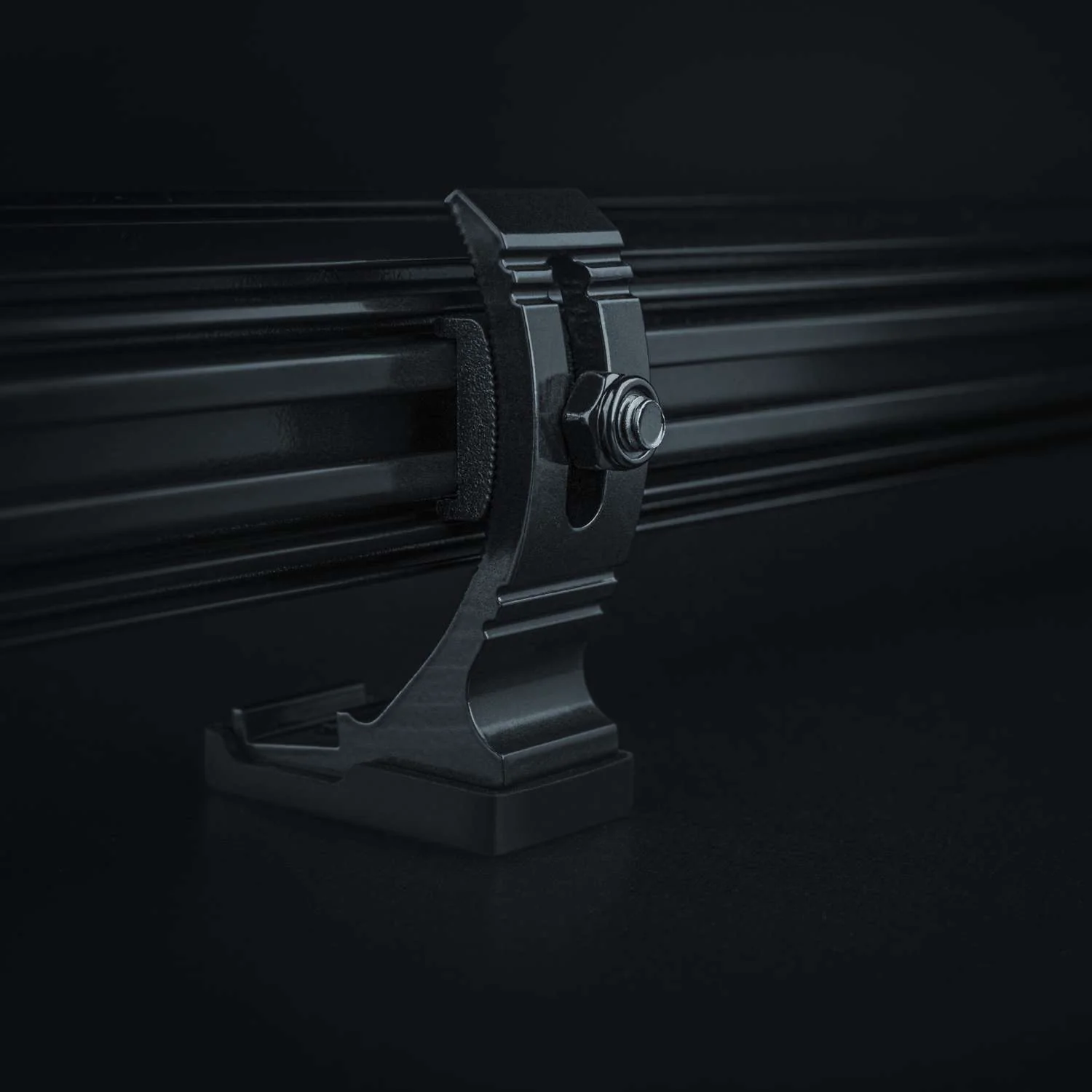

Rear hanging bracket mounts are included with the lamp, pairs of side (end) brackets are available separately  (Part No. 270362).

These lights are sold individually and do not require a relay harness due to the integral relay in the lamp itself.  Please check the manual for wiring instruction.

Click here for full details of the new Pure Passion XP Series

Specifications

SIBERIA XPA SINGLE ROW	12 Inch	22 Inch	32 Inch	42 Inch	50 Inch
PART NUMBER	809411A	809412A	809413A	809414A	809415A
VOLTAGE	10-32V DC	10-32V DC	10-32V DC	10-32V DC	10-32V DC
CONSUMPTION, XPERIENCE-MODE	50W	102W	166W	239W	240W
CONSUMPTION, E-MODE	25W	25W	30W	25W	30W
CONSUMPTION, POSITION LIGHTS	Wht:5.1W, Amb:5.1W	Wht:9.2W, Amb:9.2W	Wht:14.5W, Amb:14.5W	Wht:19.1W, Amb:19.1W	Wht:22.9W, Amb:22.9W
ACTUAL LUMEN, XPERIENCE-MODE	3620 lm	7150 lm	10950 lm	14760 lm	16500 lm
ACTUAL LUMEN, E-MODE	1725 lm	1875 lm	1750 lm	1500 lm	1475 lm

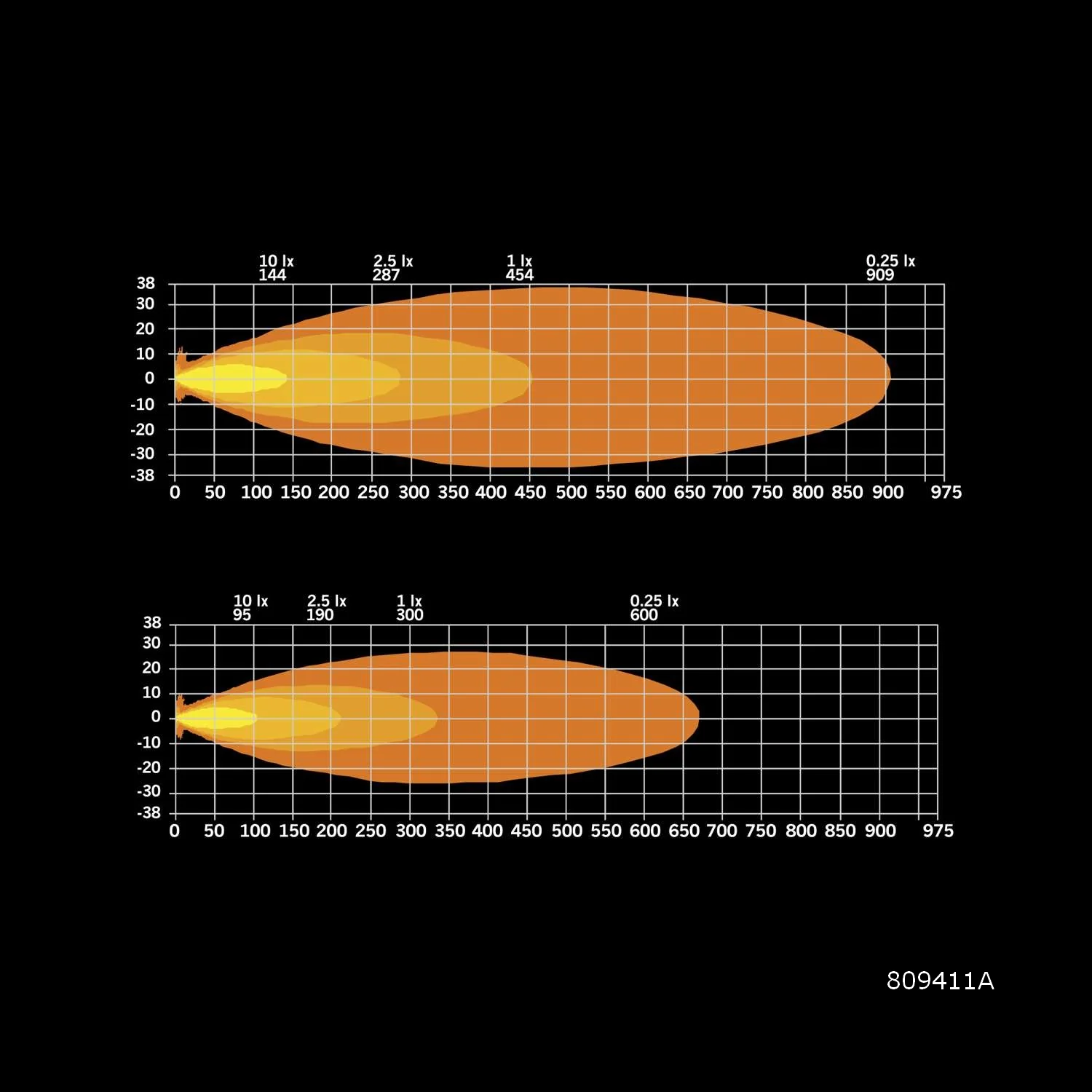

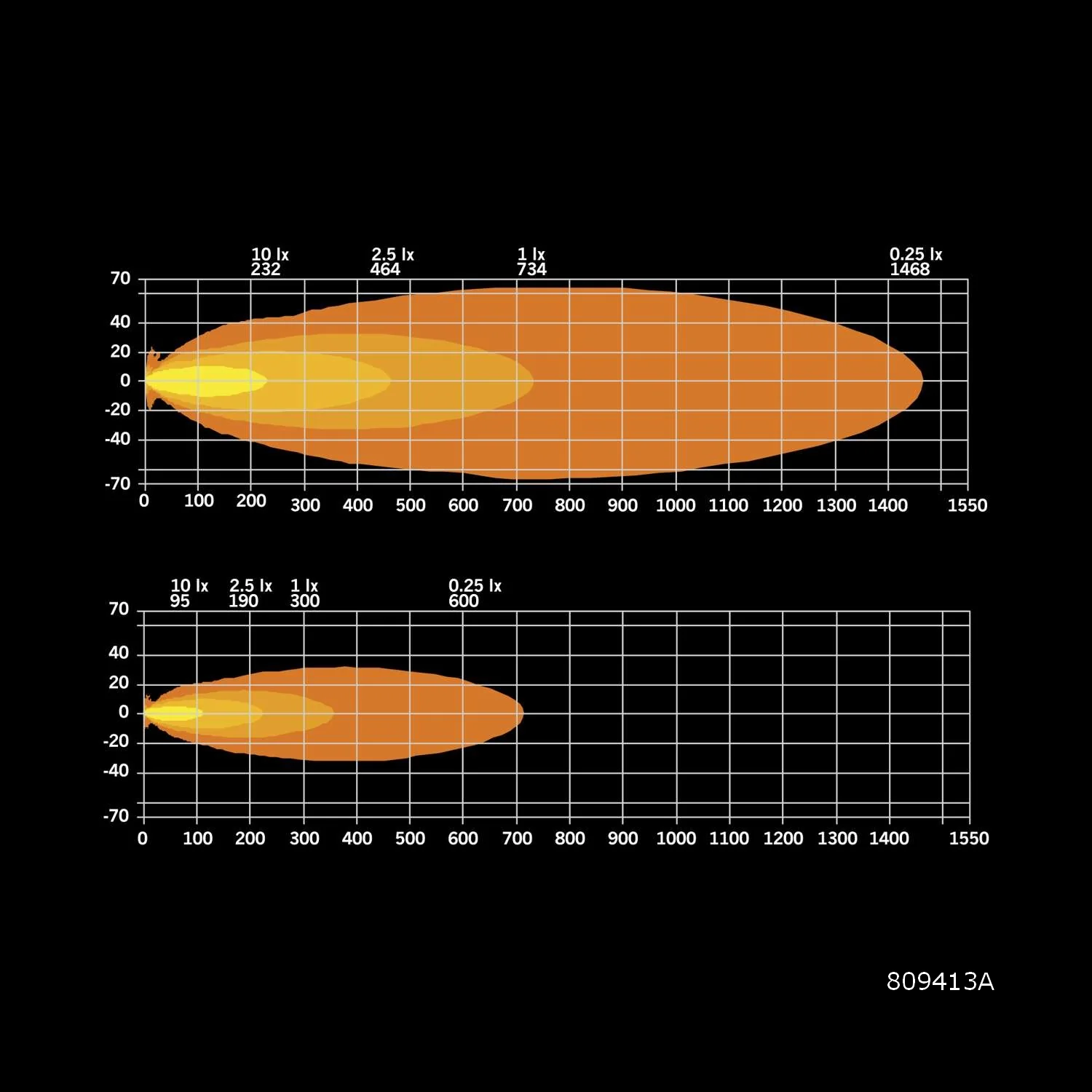

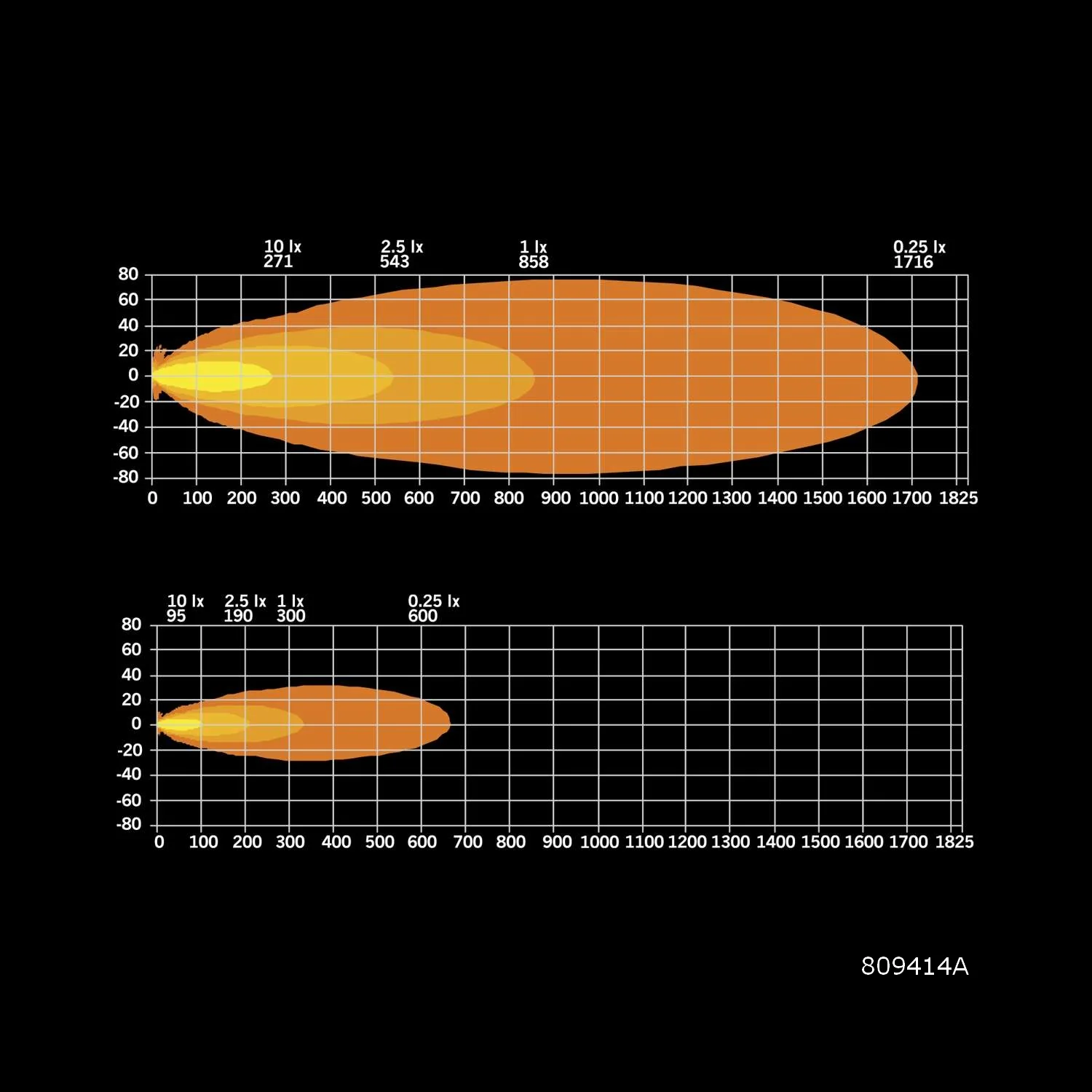

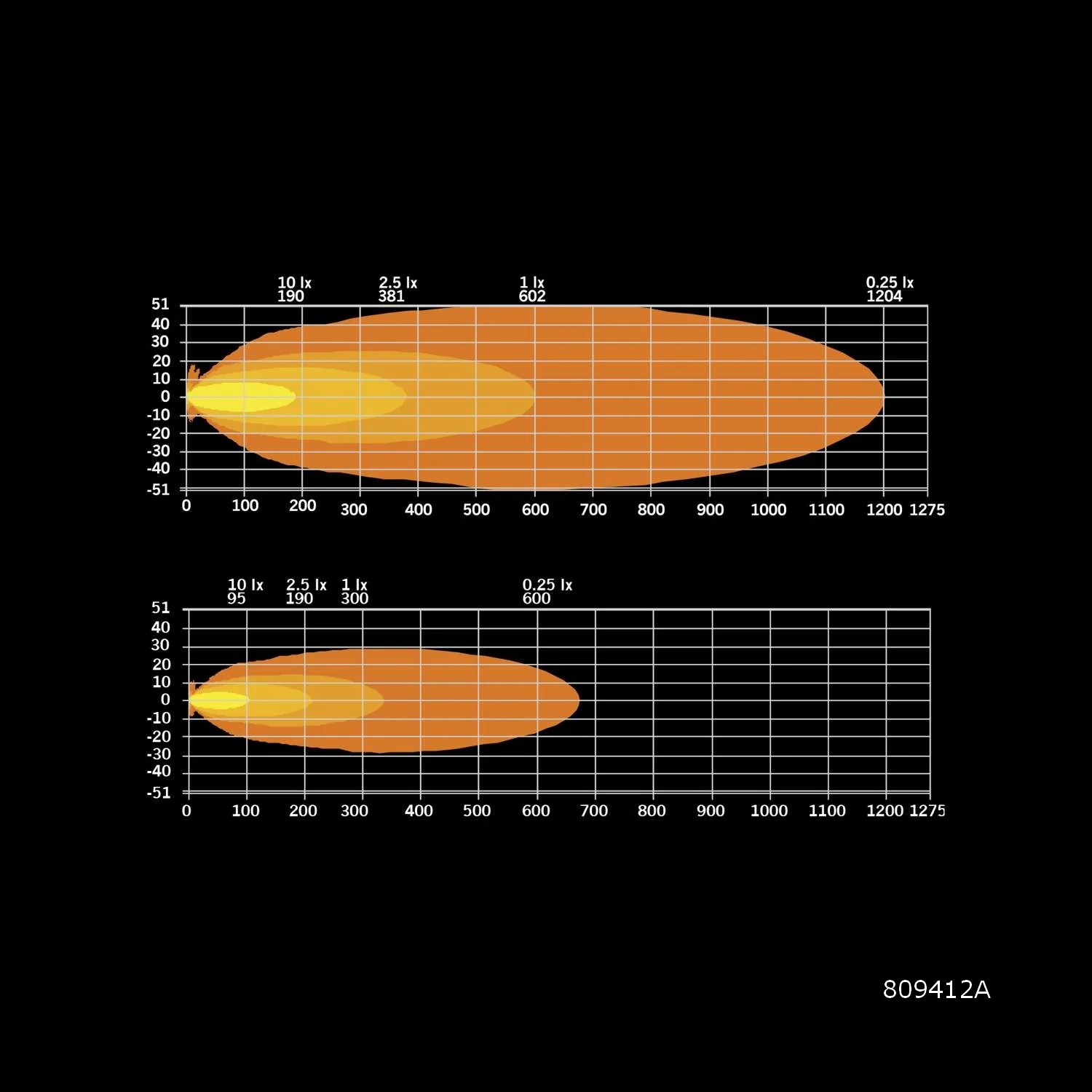

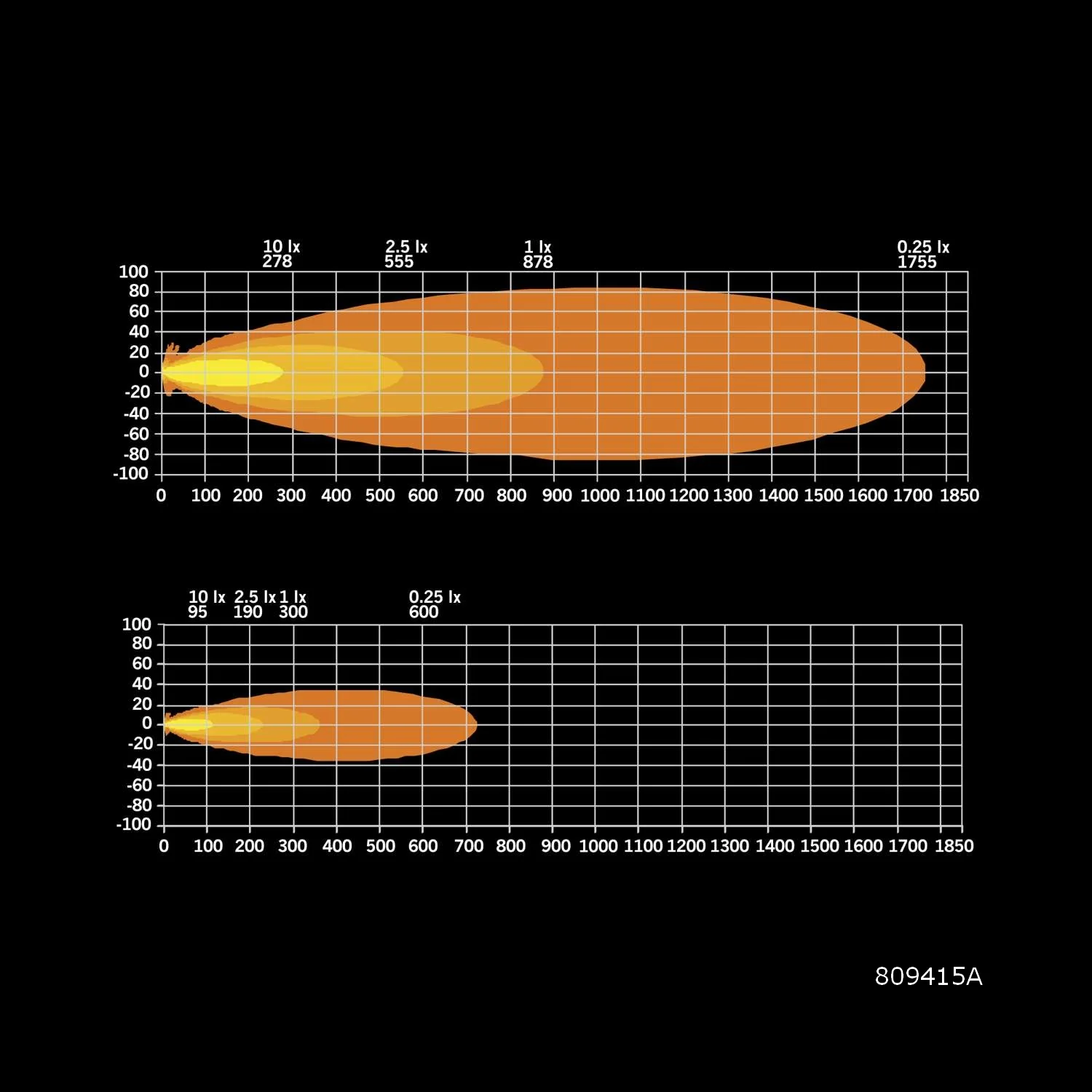

1 LUX @, XPERIENCE-MODE	454 m	602 m	734 m	858 m	878 m
1 LUX @, E-MODE	300 m	300 m	300 m	300 m	300 m
COLOR TEMPERATURE	5700K	5700K	5700K	5700K	5700K
BEAM PATTERN	Optimized beam	Extended beam	Long Distance	Long Distance	Long Distance
IP-CLASS	IP68/IP69K	IP68/IP69K	IP68/IP69K	IP68/IP69K	IP68/IP69K
COLOR LENS	Clear	Clear	Clear	Clear	Clear
HELLO FUNCTION	No	Yes	Yes	Yes	Yes

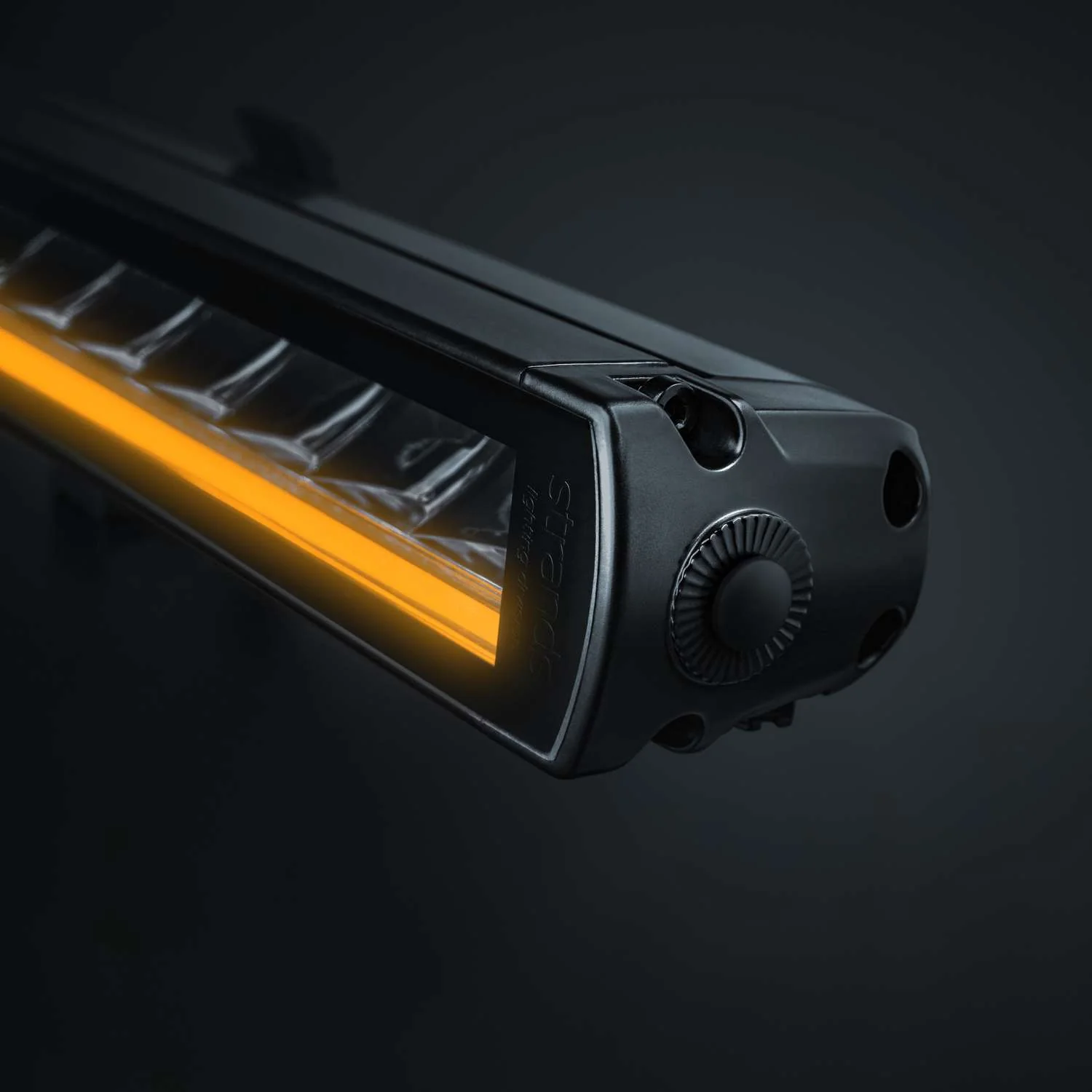

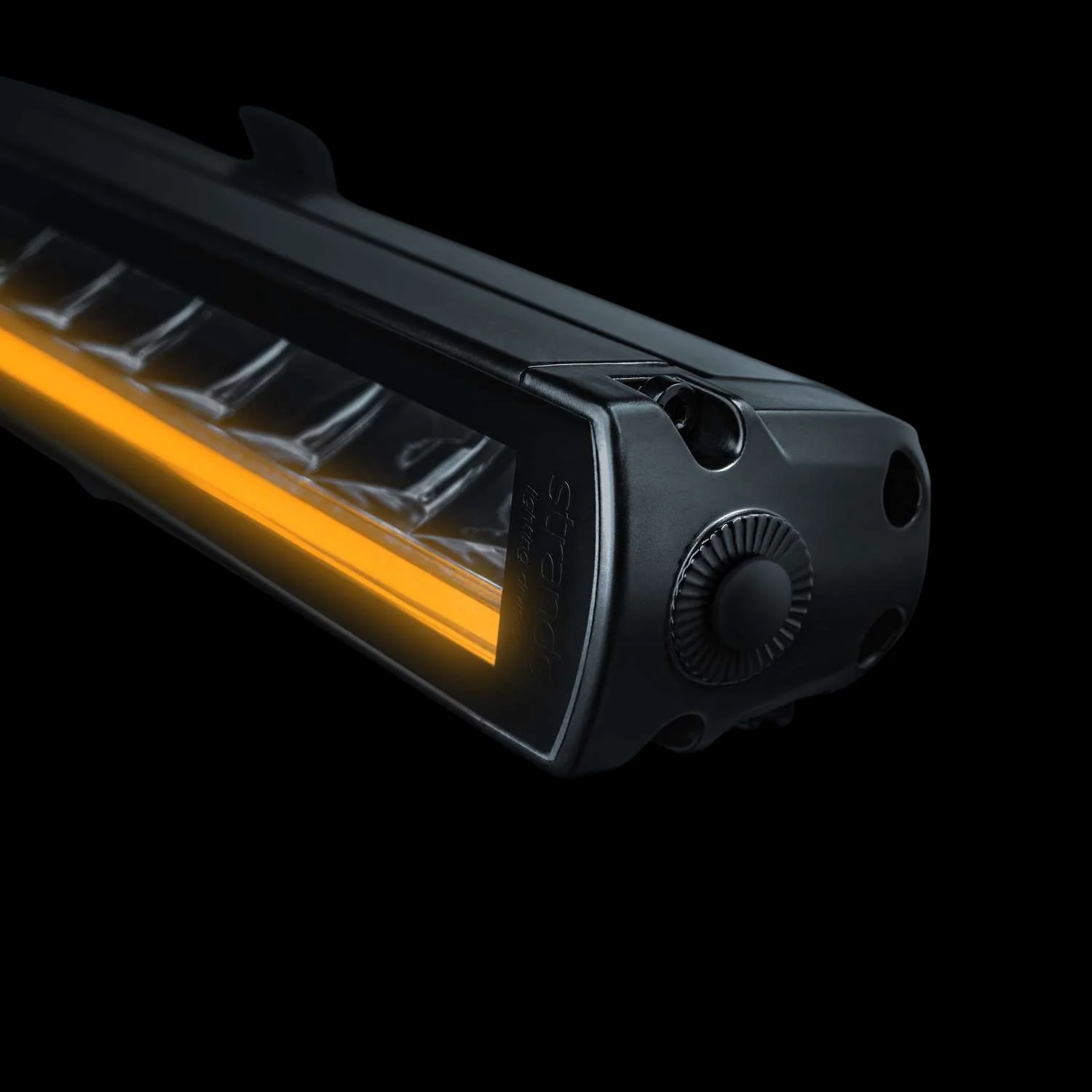

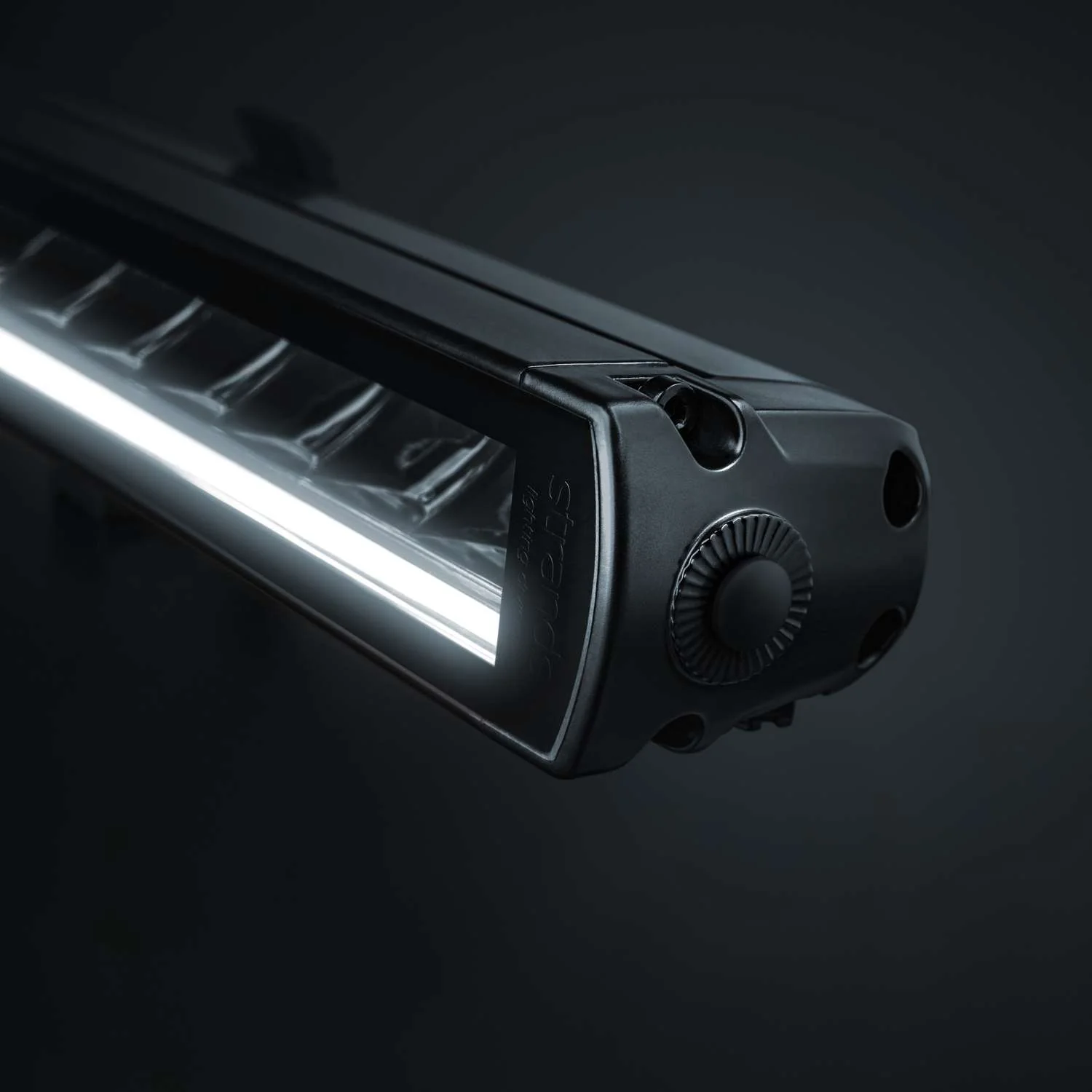

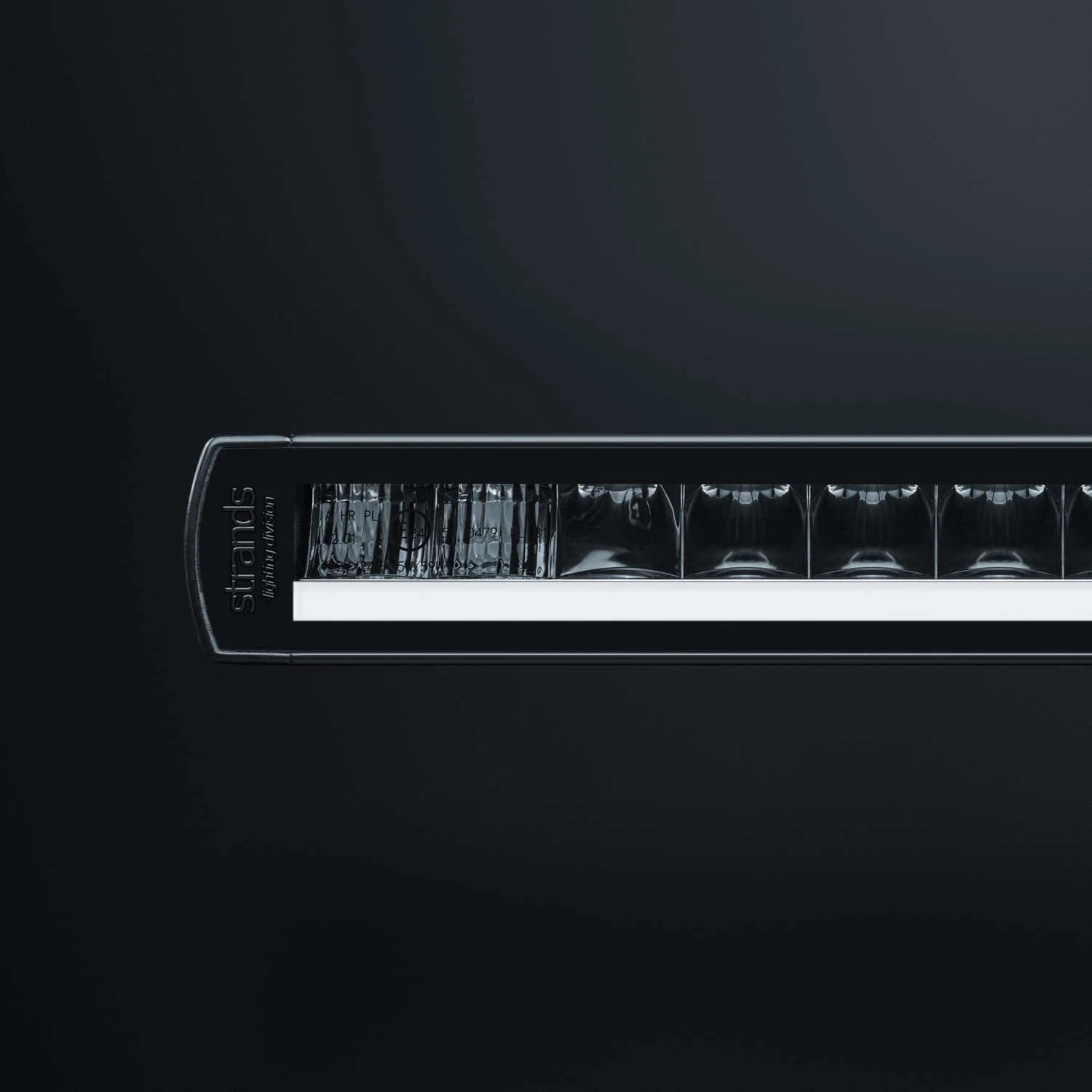

POSITION LIGHT	White & Amber	White & Amber	White & Amber	White & Amber	White & Amber
CONNECTION	DT-4 Pin	DT-4 Pin	DT-4 Pin	Cable	Cable
CABLE LENGTH	550mm	550mm	550mm	2500mm	2500mm
MATERIAL HOUSING	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium
MATERIAL LENS	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate

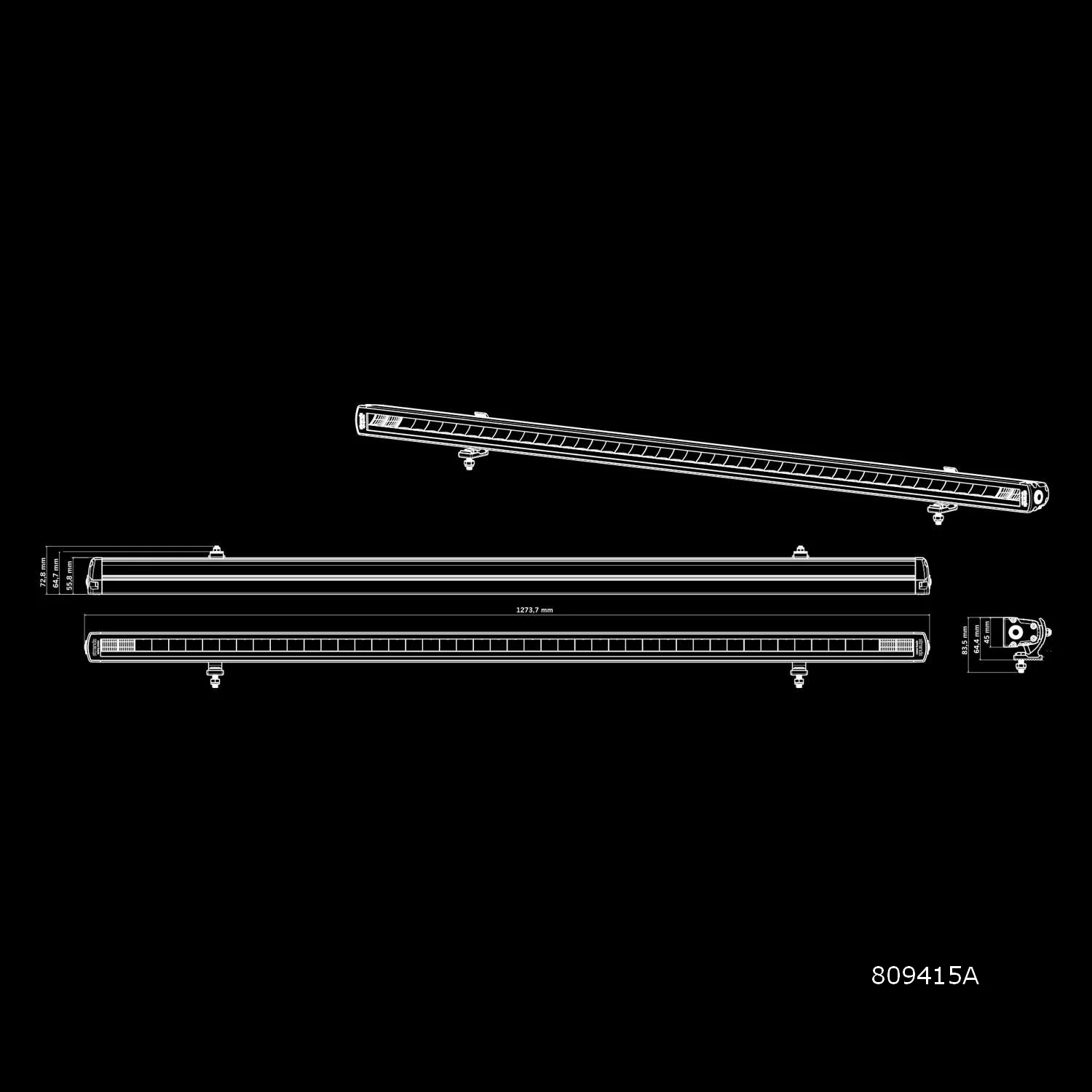

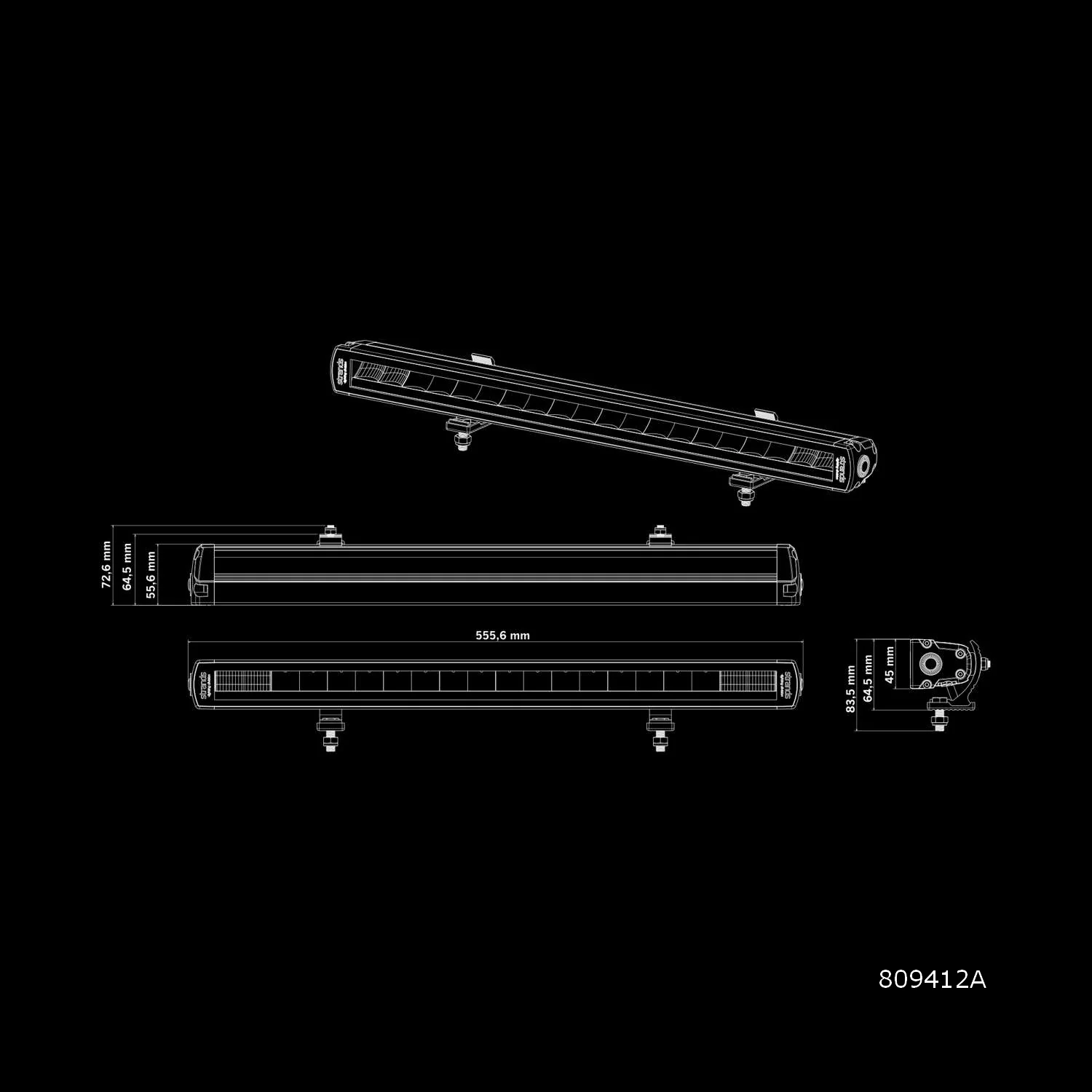

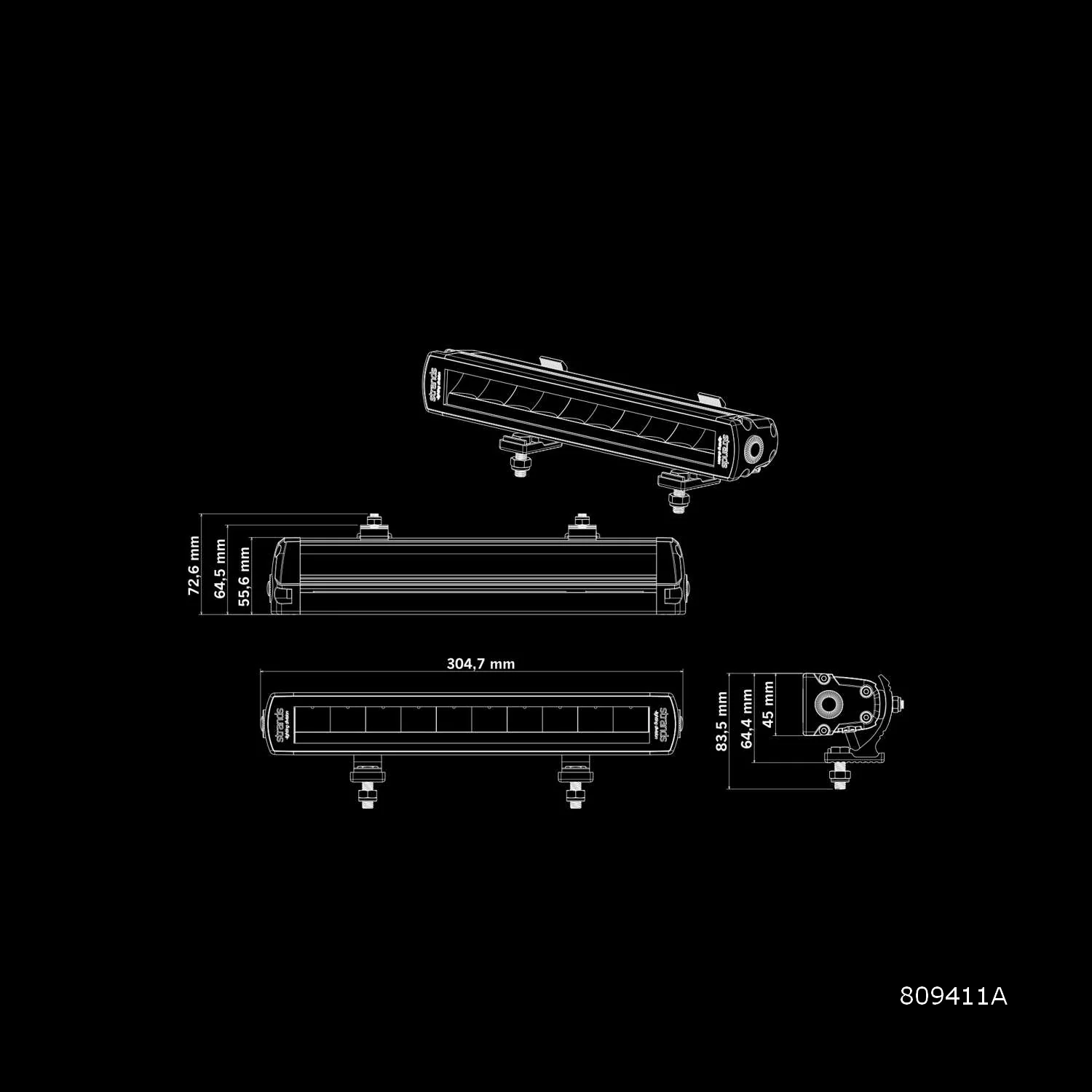

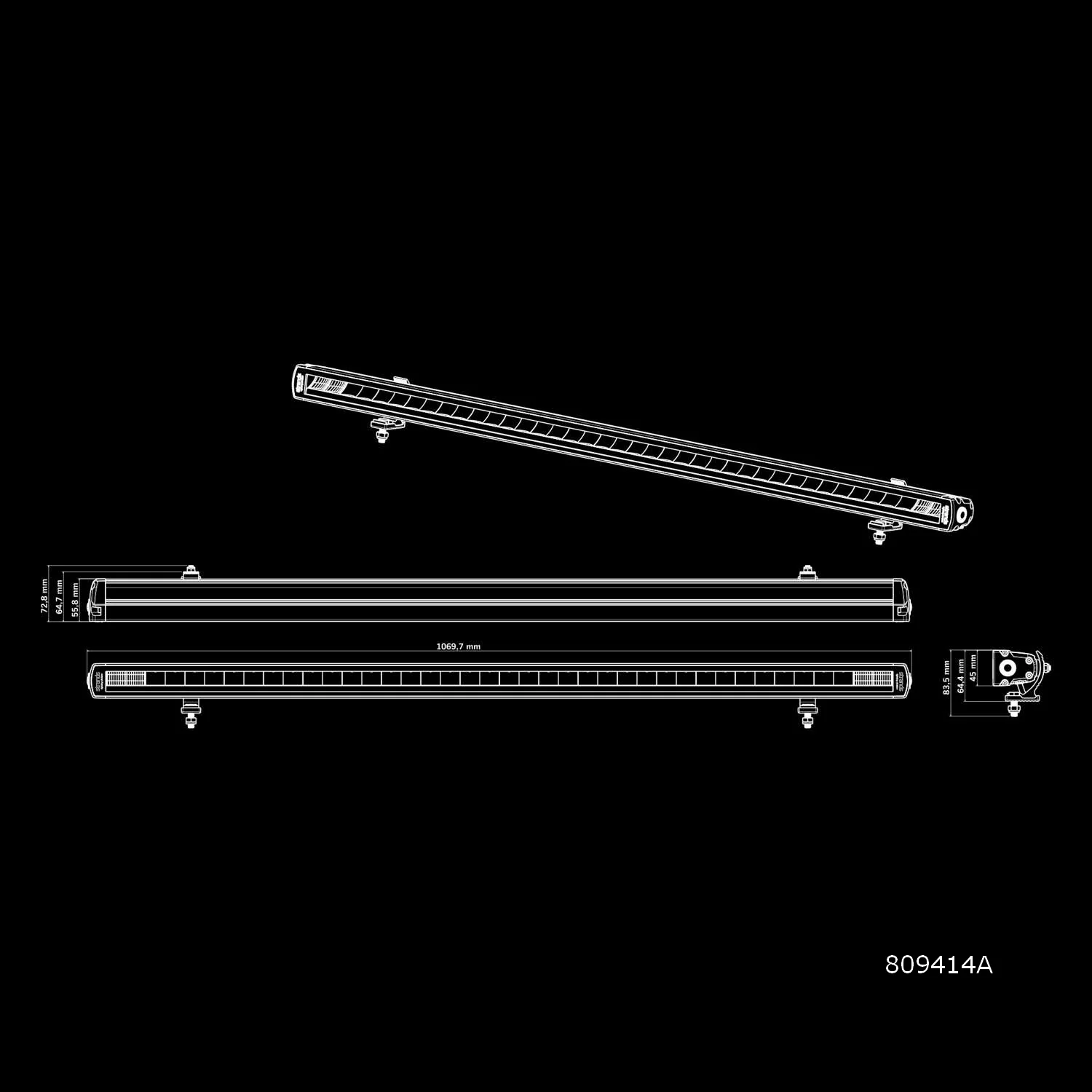

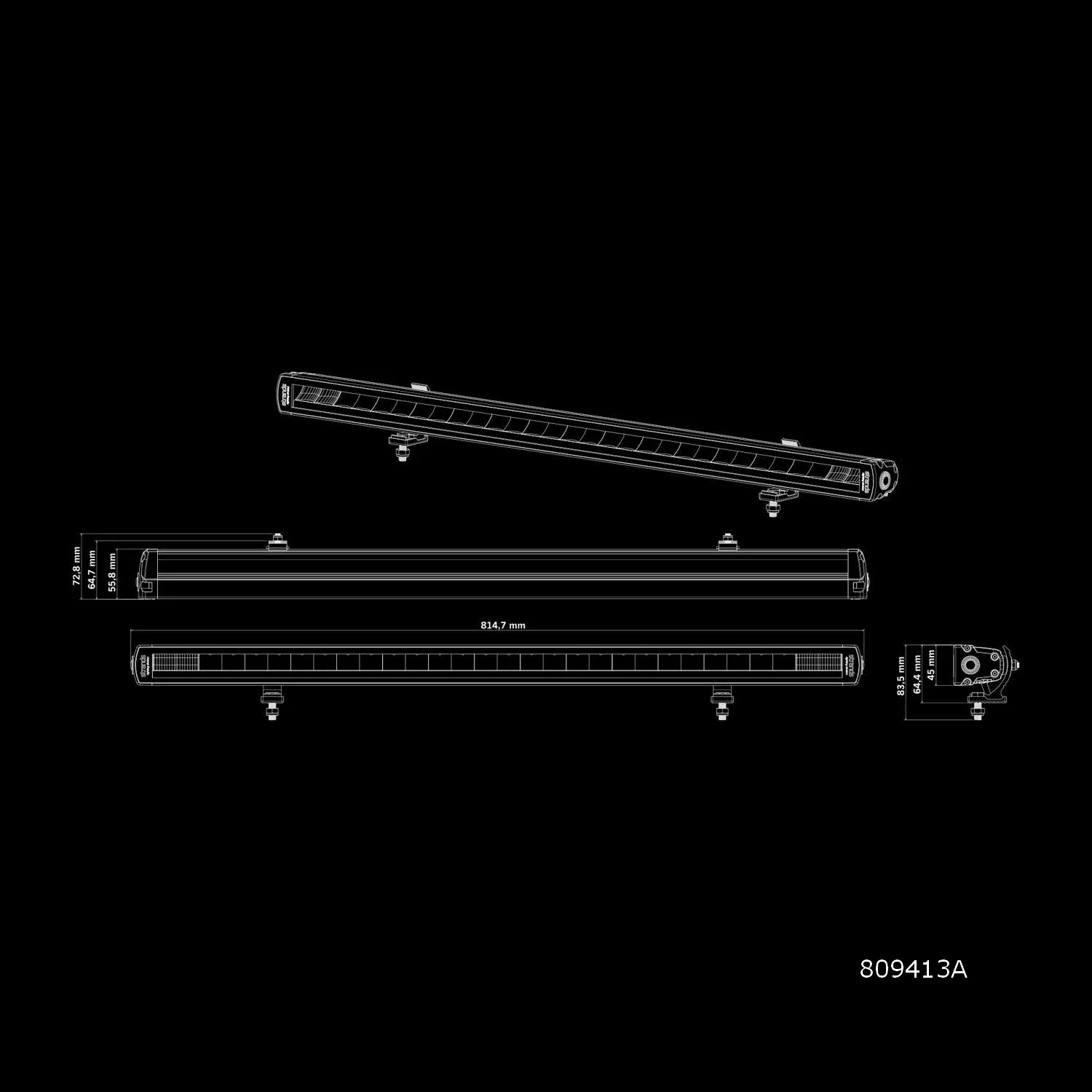

LENGTH	304.7 mm	555.6 mm	814.7 mm	1069.7 mm	1273.7 mm
DEPTH	55.5 mm	55.5 mm	55.5 mm	55.5 mm	55.5 mm
HEIGHT	45 mm	45 mm	45 mm	45 mm	45 mm
HEIGHT INCLUDING BRACKET	64.5 mm	64.5 mm	64.5 mm	64.5 mm	64.5 mm
OPERATING TEMPERATURE	-30°C - +65°C	-30°C - +65°C	-30°C - +65°C	-30°C - +65°C	-30°C - +65°C
E-APPROVED	Yes	Yes	Yes	Yes	Yes
ACCORDING TO ECE REGULATION	R148(R7),R149(R112)	R148(R7),R149(R112)	R148(R7),R149(R112)	R148(R7),R149(R112)	R148(R7),R149(R112)
EMC-CERTIFICATE	ECE R10	ECE R10	ECE R10	ECE R10	ECE R10
