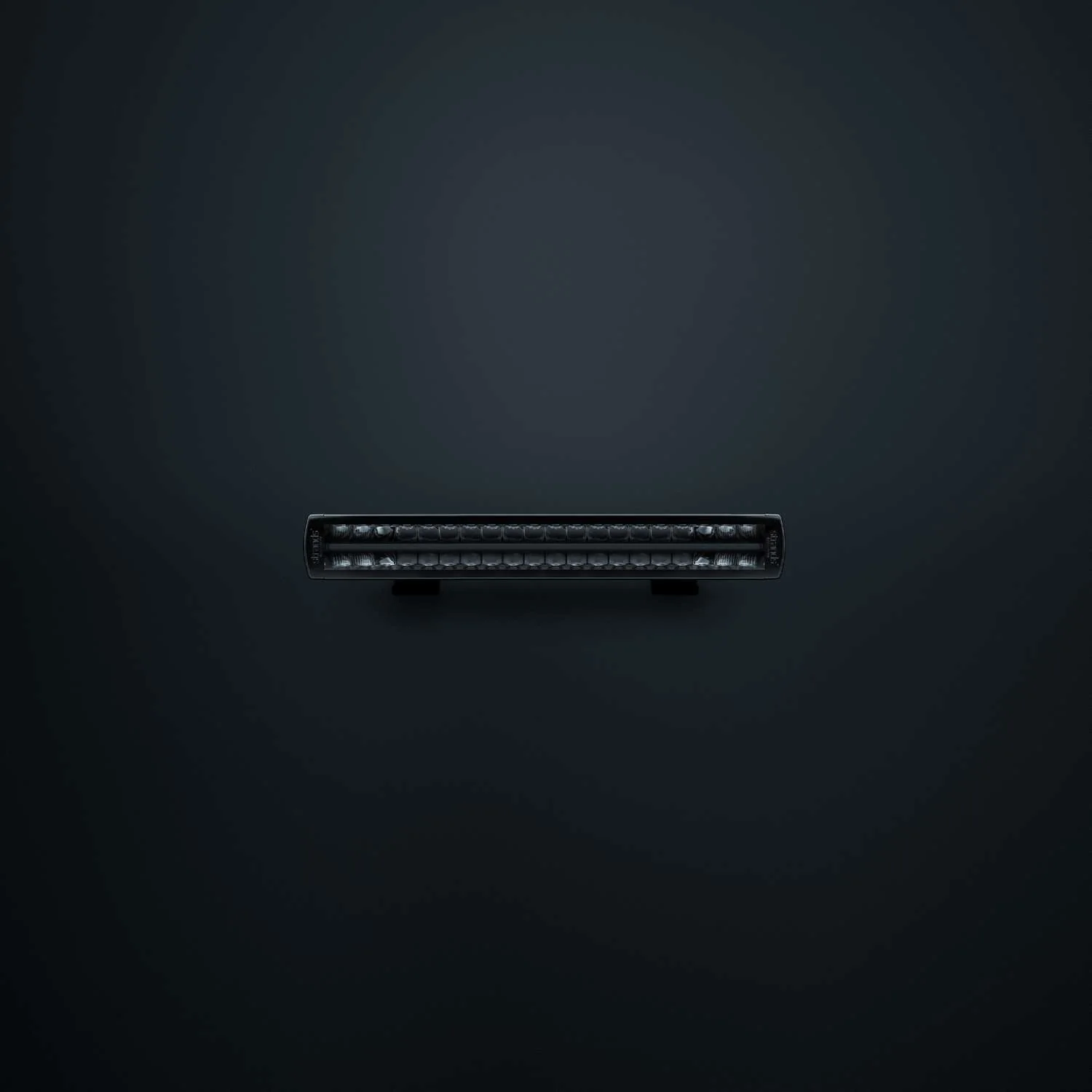

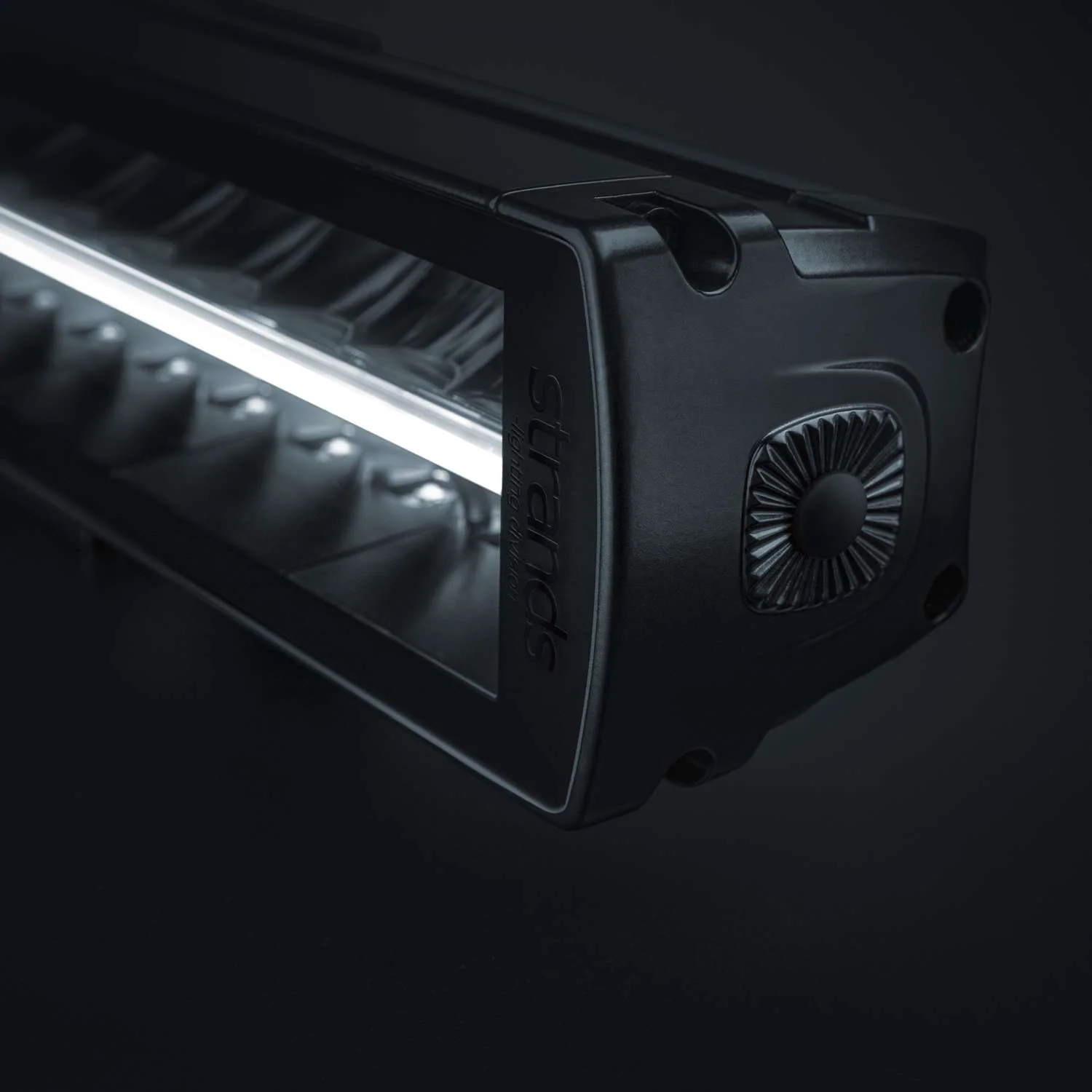

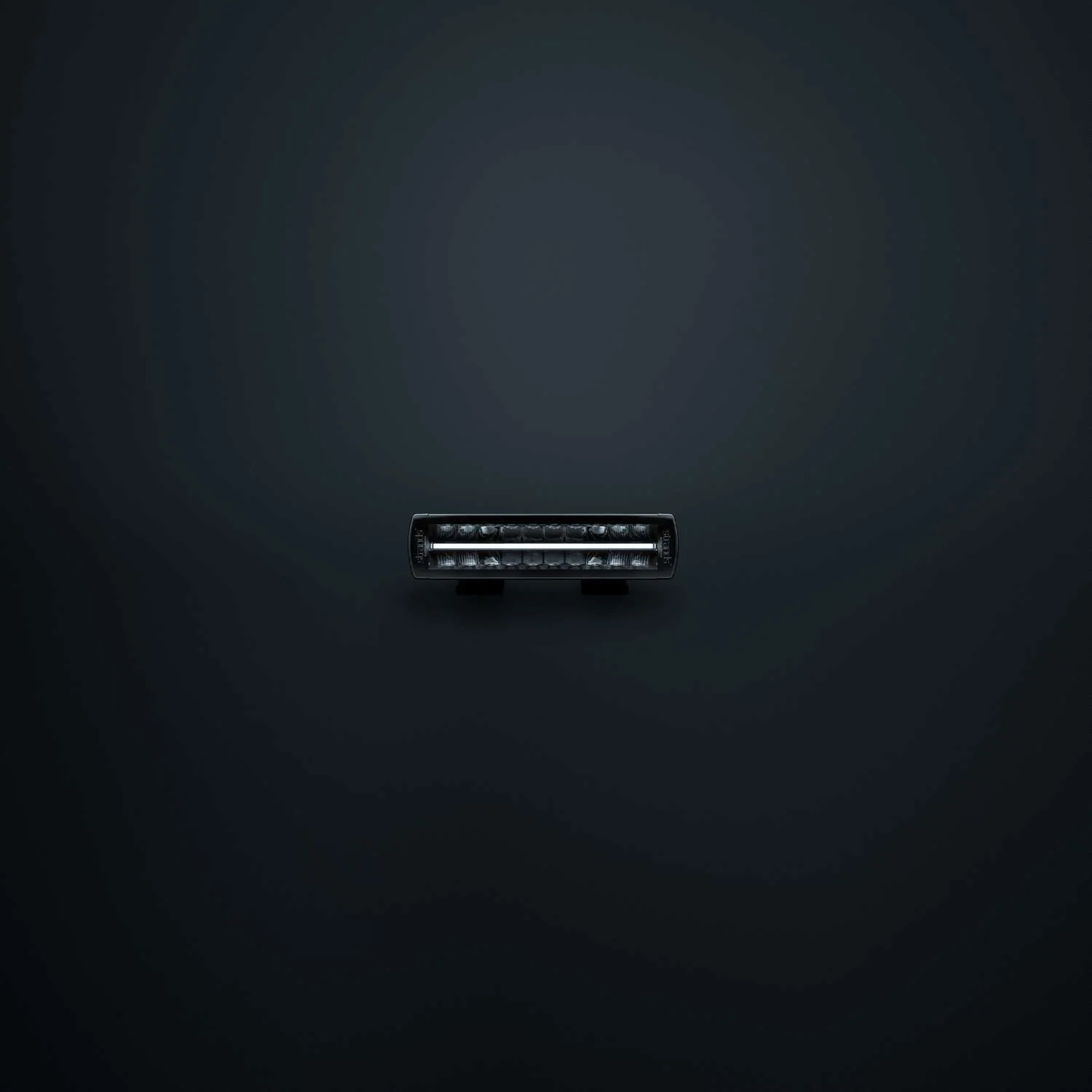

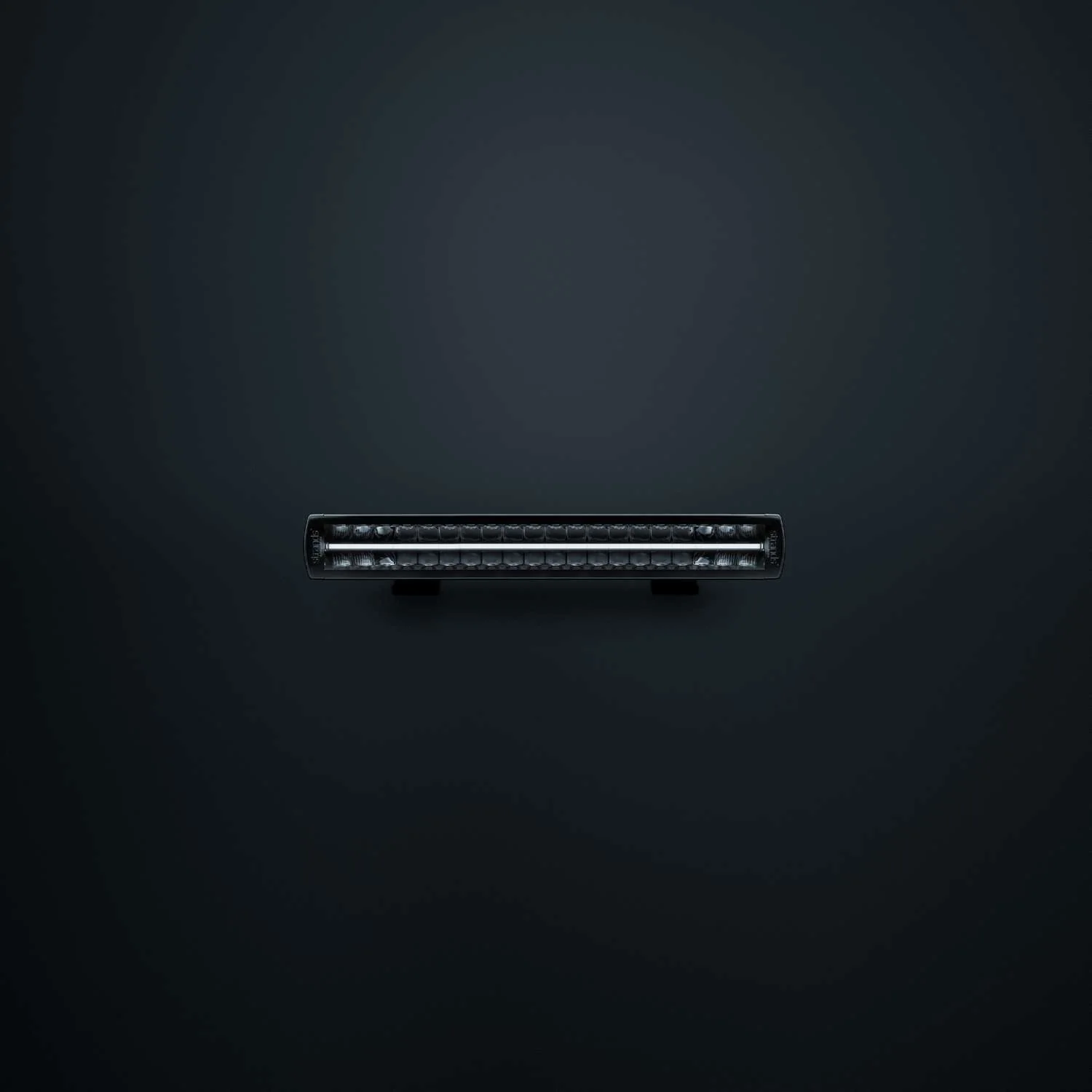

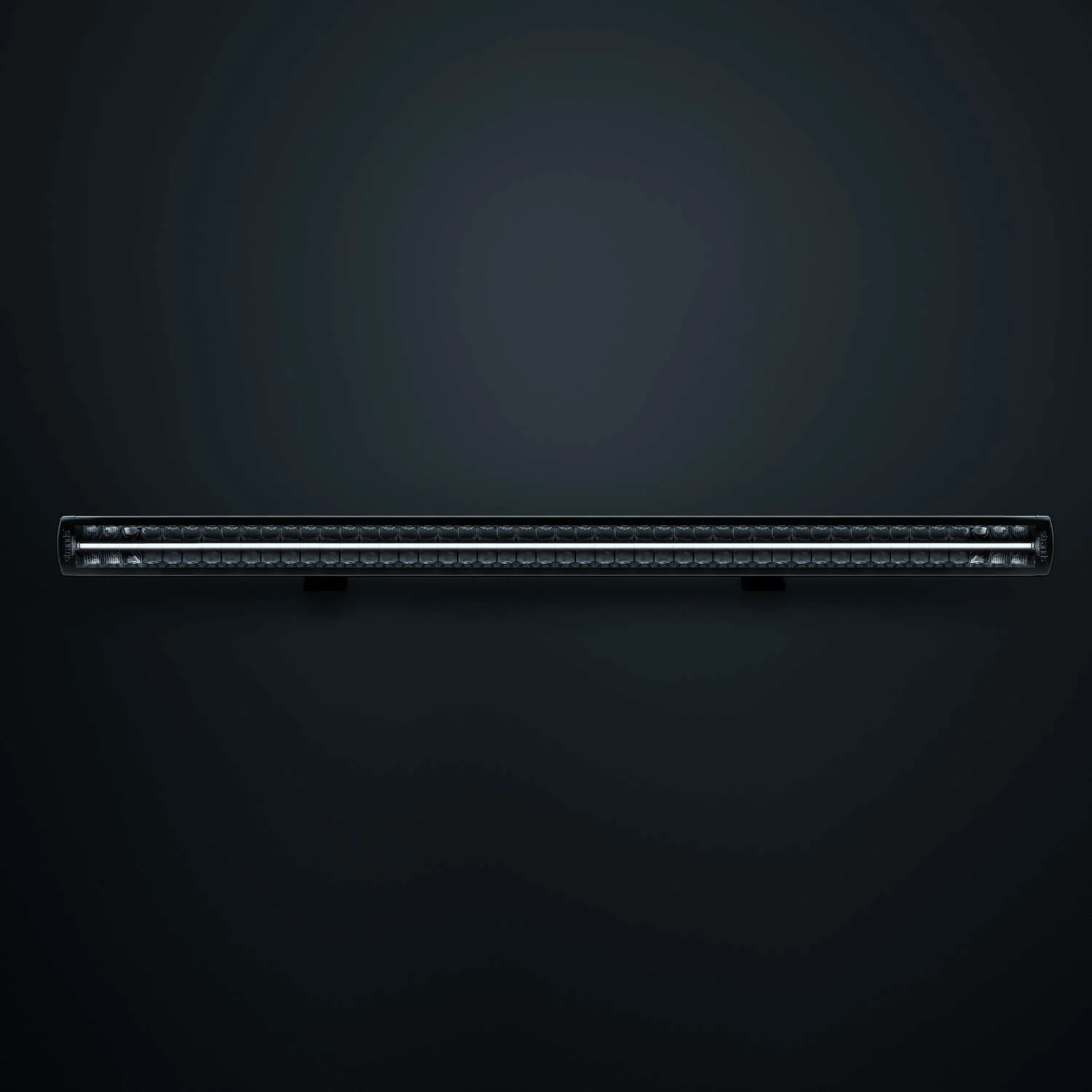

Welcome the new Siberia XPA Double Row LED bar. These models have an extended beam pattern with an E-mode and high powered Xperience mode. This means a much higher output than previous LED bars. The greater visual range creates high forward visibility, and the 5700-kelvin color temperature makes the output clear and bright. It is incredibly durable, vibration resistant, and can withstand rough roads and hard use. The new powder coating and IP68/IP69K IP rating ensure high protection against dirt and water. Siberia XPA is covered by Strands Lighting Division's 3-year function warranty. It is E-approved according to R148(R7) and R149(R112), and ECE R10.

The Hello function is incorporated in the 22", 32", 42" and 50" bars. To operate the Hello function: simply flash the light twice in quick succession, and the position lights will activate a dynamic signal.  See video here.

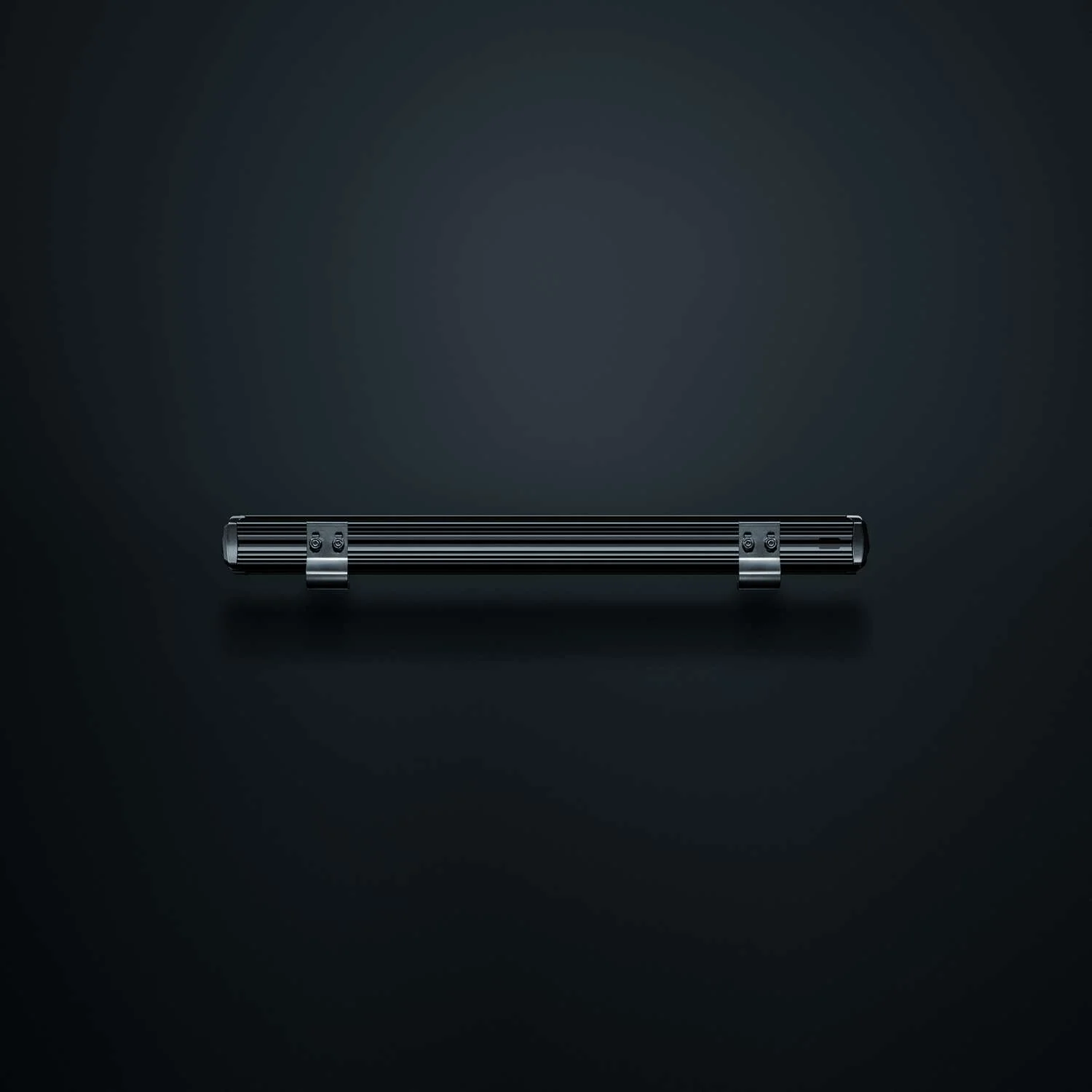

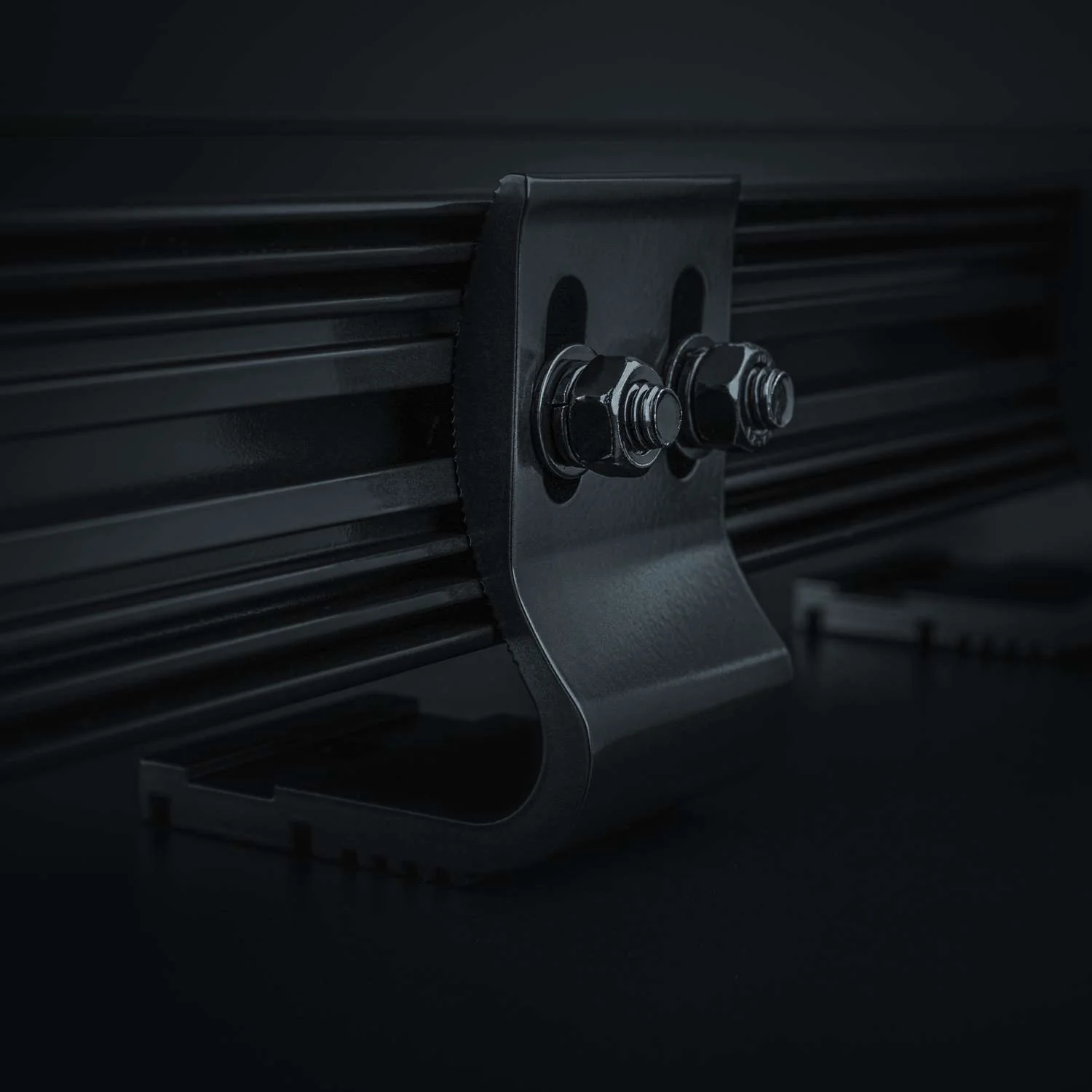

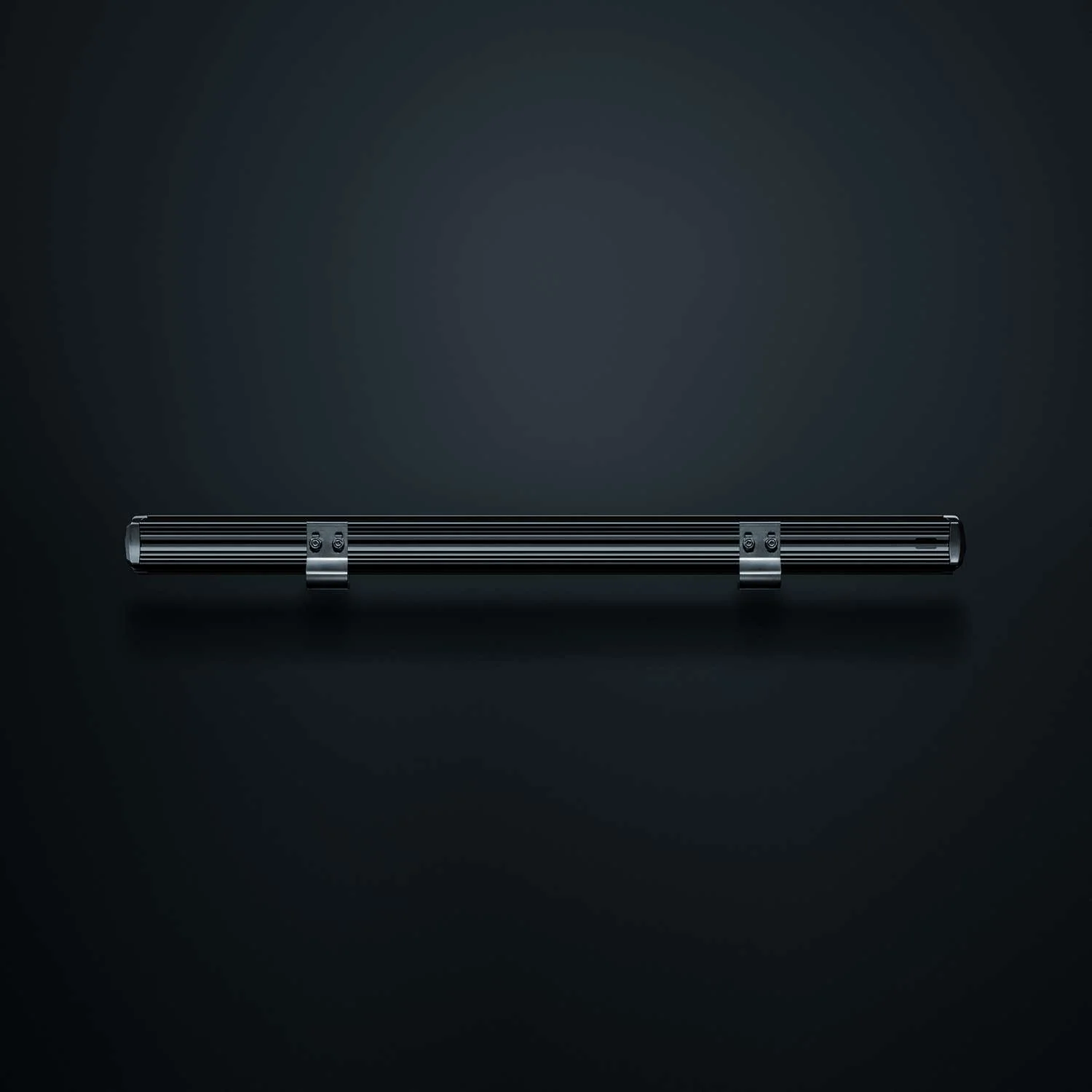

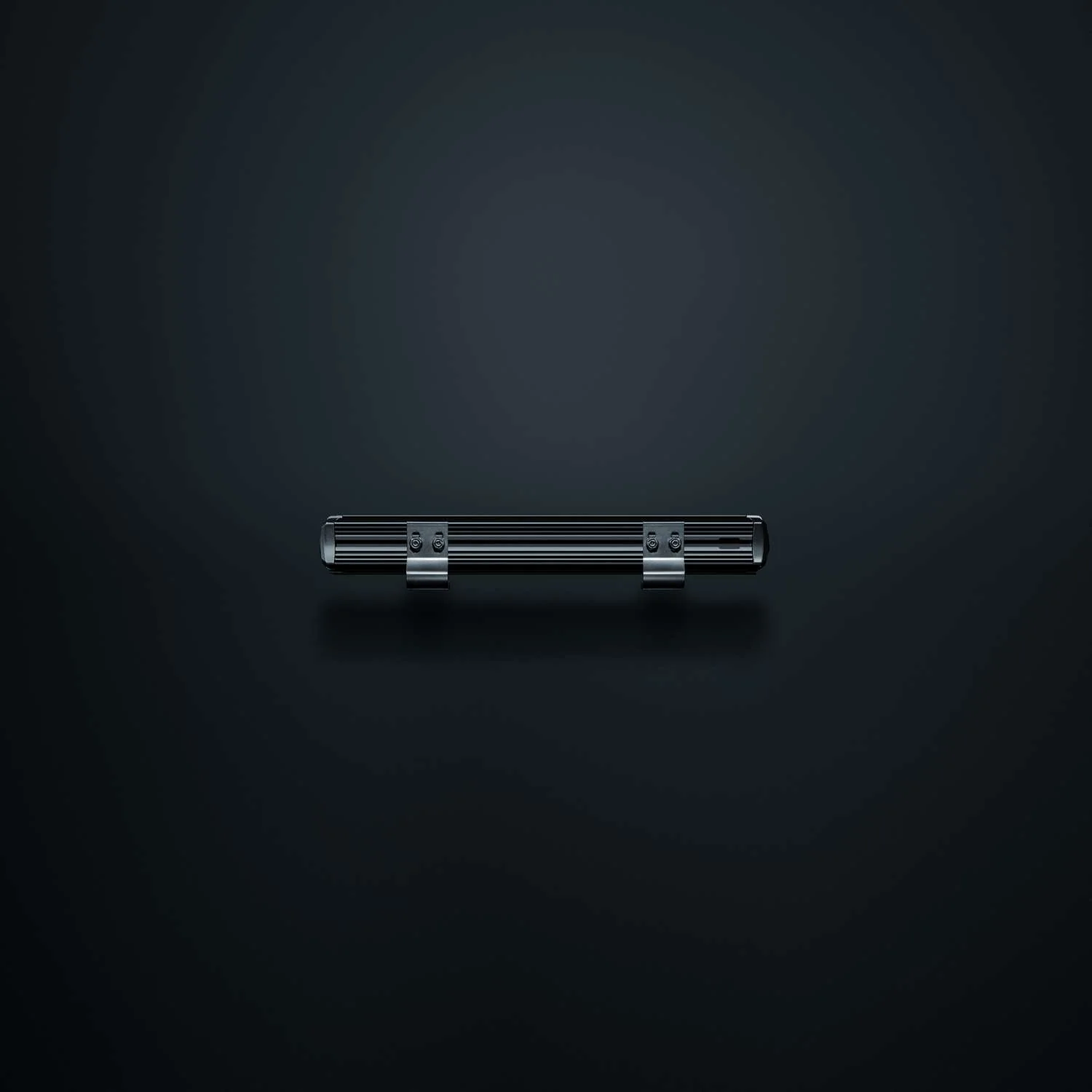

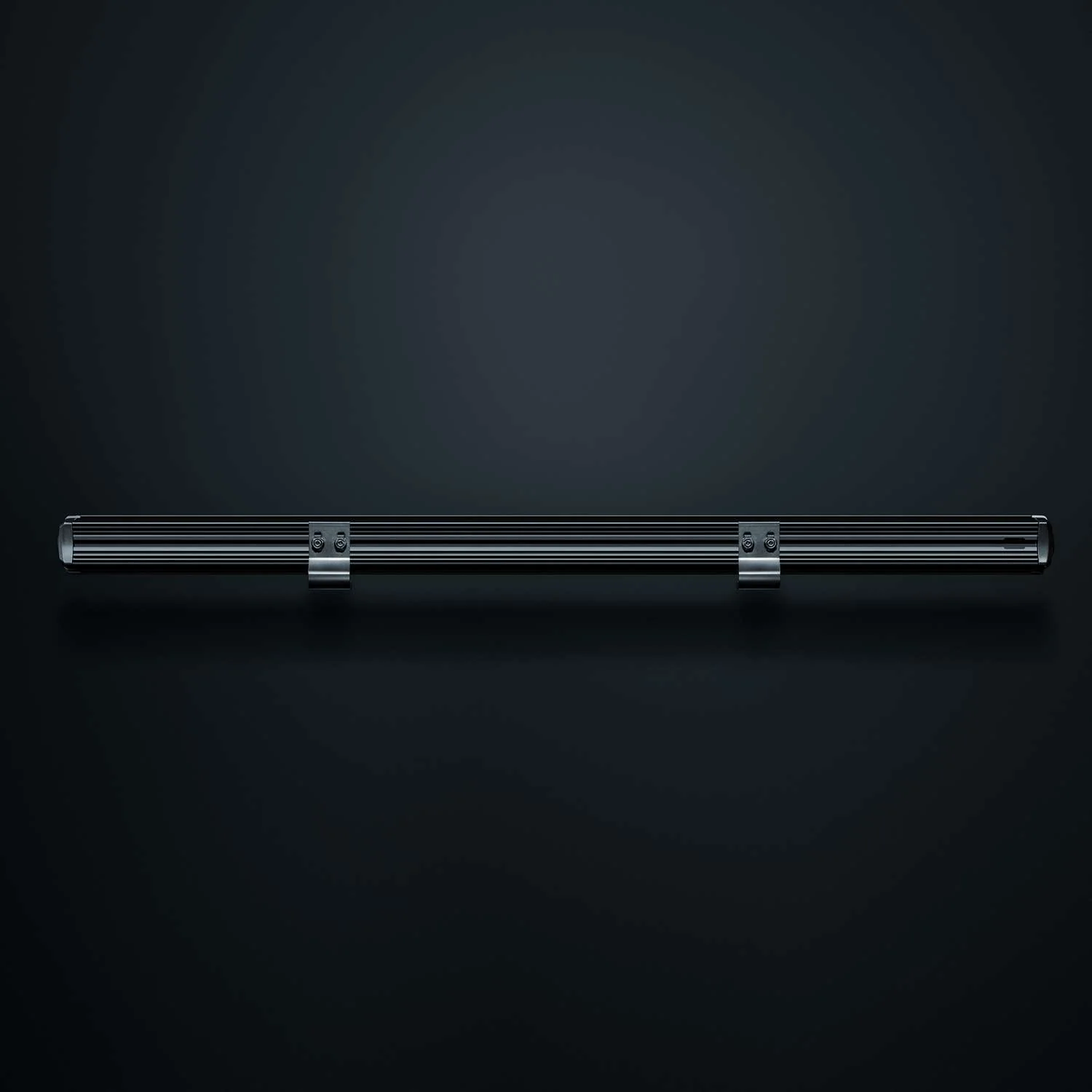

Rear hanging bracket mounts are included with the lamp, pairs of side (end) brackets are available separately  (Part No. 270361).

These lights are sold individually.  Please check the manual for wiring instruction.

Click here for full details of the new Pure Passion XP Series

Specifications

SIBERIA XPA DOUBLE ROW	8 Inch	12 Inch	22 Inch	32 Inch	42 Inch	50 Inch
PART NUMBER	809425A	809426A	809427A	809428A	809429A	809430A
VOLTAGE	10-32V DC	10-32V DC	10-32V DC	10-32V DC	10-32V DC	10-32V DC
CONSUMPTION, XPERIENCE-MODE	55W	84W	184W	245W	341W	410W
CONSUMPTION, E-MODE	15W	25W	19W	17W	18W	19W
CONSUMPTION, POSITION LIGHTS	Wht: 3,7W, Amb: 3,8W	Wht:11.6W, Amb:11.5W	Wht:16.9W, Amb:16.7W	Wht:18W, Amb:17.9W	Wht:17.5W, Amb:17.4W	Wht:18.1W, Amb:18W
ACTUAL LUMEN, XPERIENCE-MODE	4300 lm	6120 lm	13050 lm	19150 lm	25500 lm	30000 lm
ACTUAL LUMEN, E-MODE	1275 lm	1925 lm	1425 lm	1200 lm	1125 lm	1075 lm

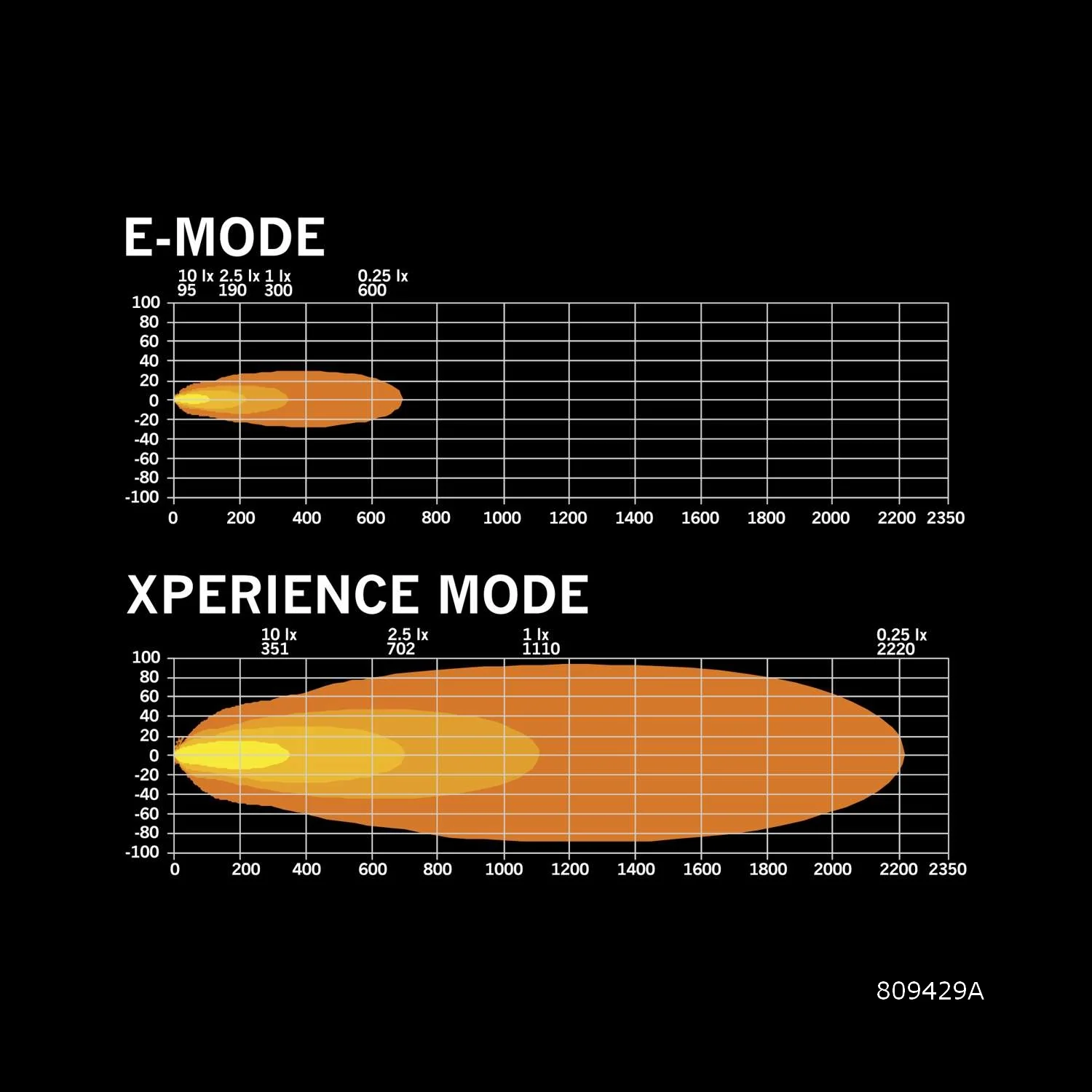

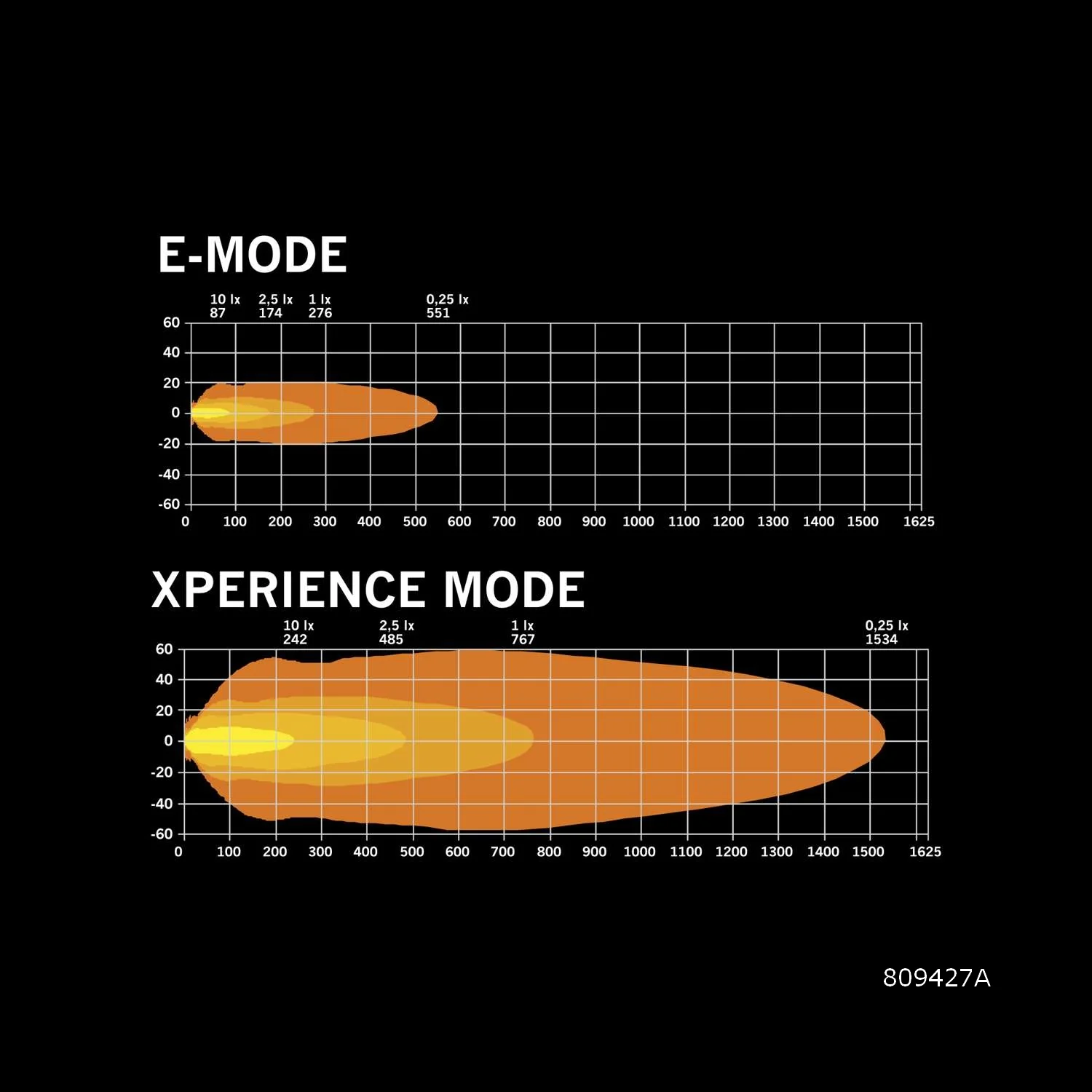

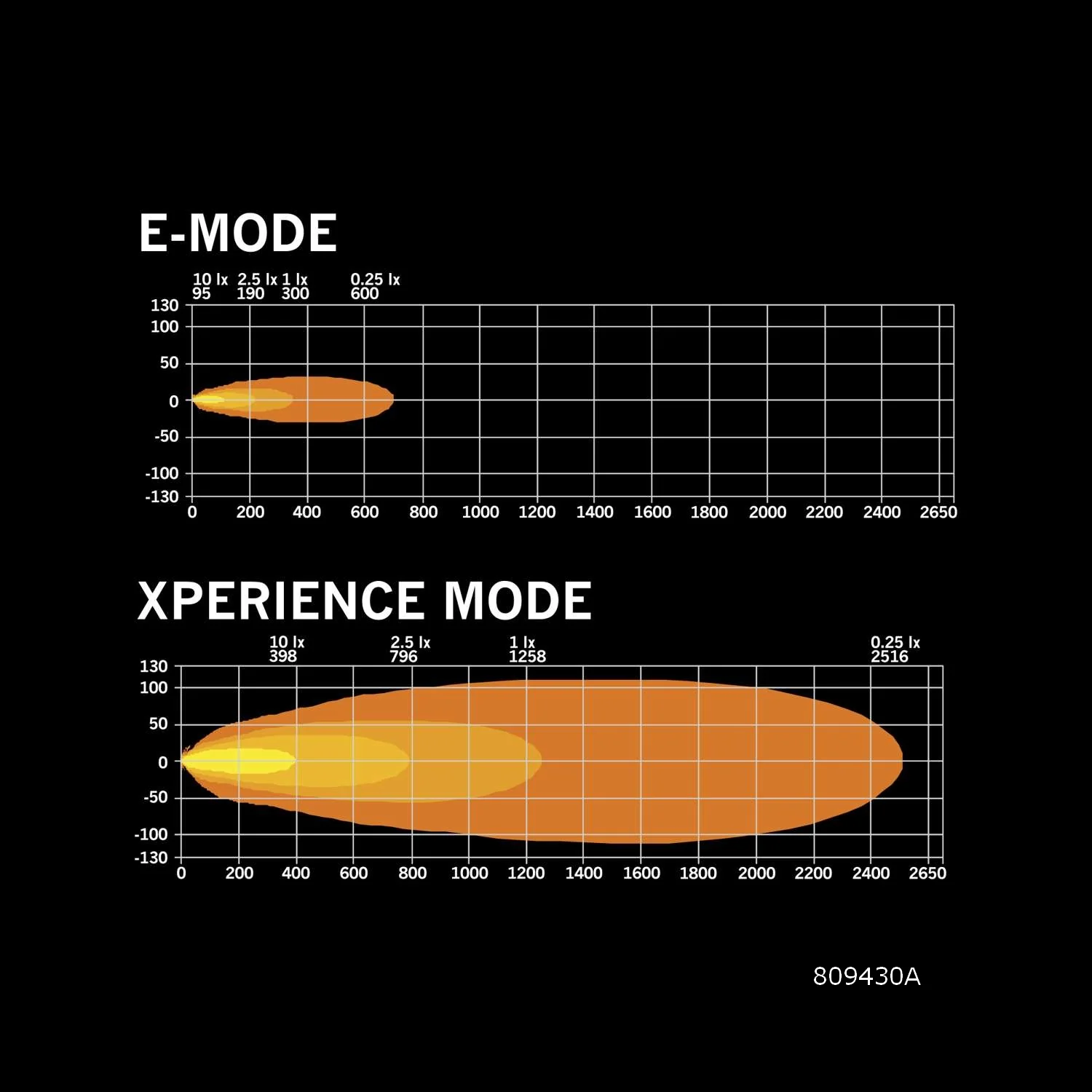

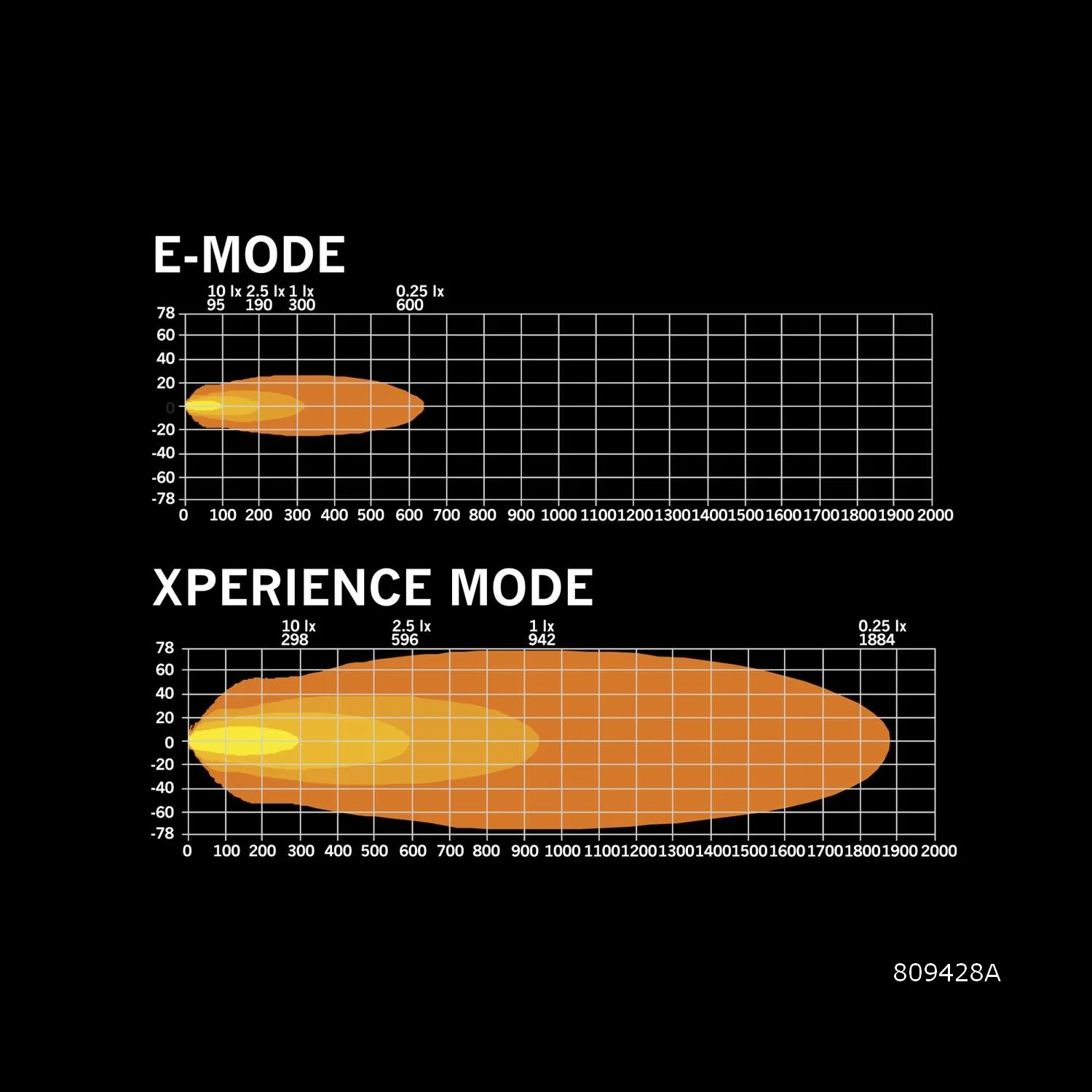

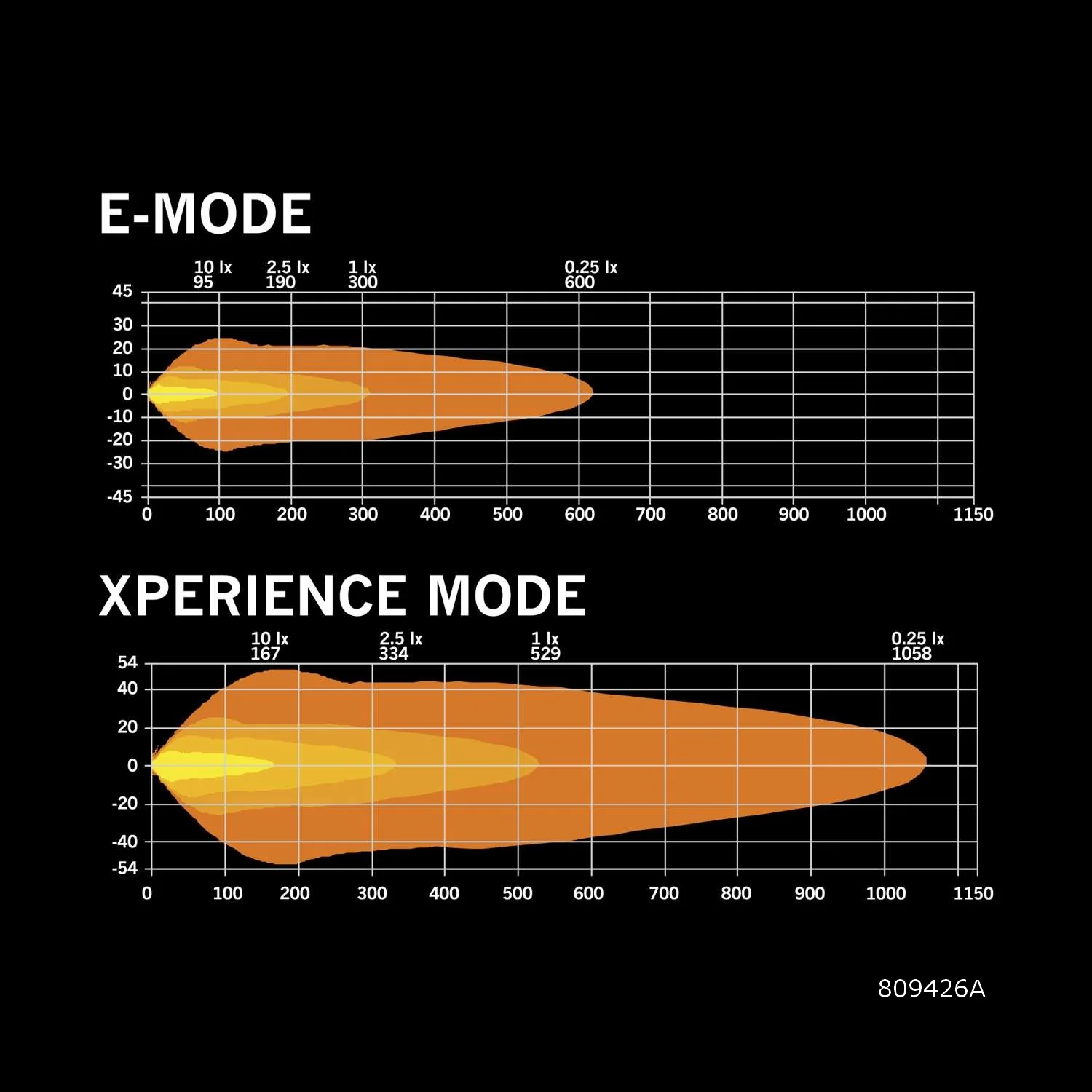

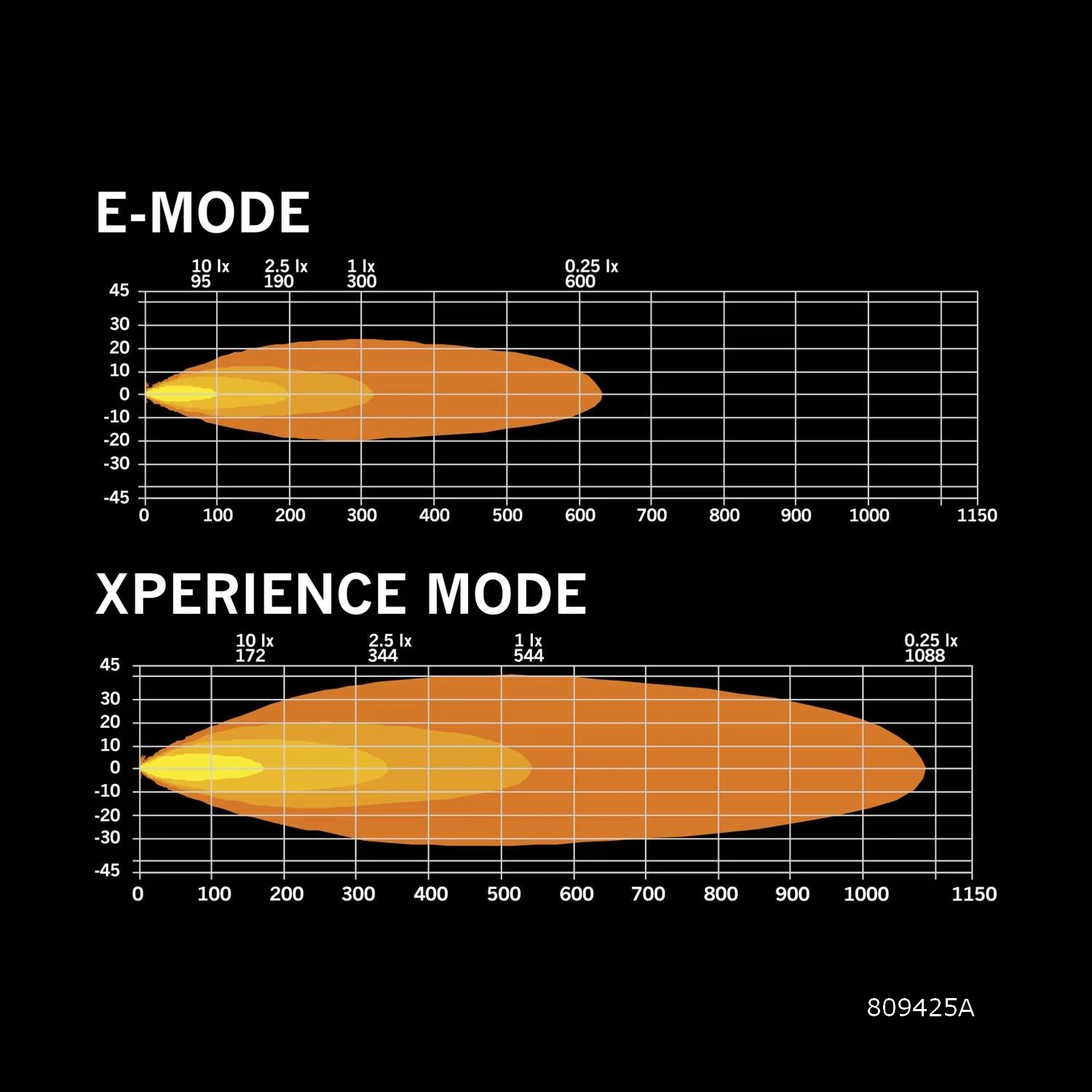

1 LUX @, XPERIENCE-MODE	544 m	529 m	853 m	942 m	1100 m	1258 m
1 LUX @, E-MODE	300 m	300 m	300 m	300 m	300 m	300 m
COLOR TEMPERATURE	5700K	5700K	5700K	5700K	5700K	5700K
BEAM PATTERN	Extended beam	Extended beam	Extended beam	Long Distance	Long Distance	Long Distance
IP-CLASS	IP68/IP69K	IP68/IP69K	IP68/IP69K	IP68/IP69K	IP68/IP69K	IP68/IP69K
COLOR LENS	Clear	Clear	Clear	Clear	Clear	Clear
HELLO FUNCTION	No	No	Yes	Yes	Yes	Yes

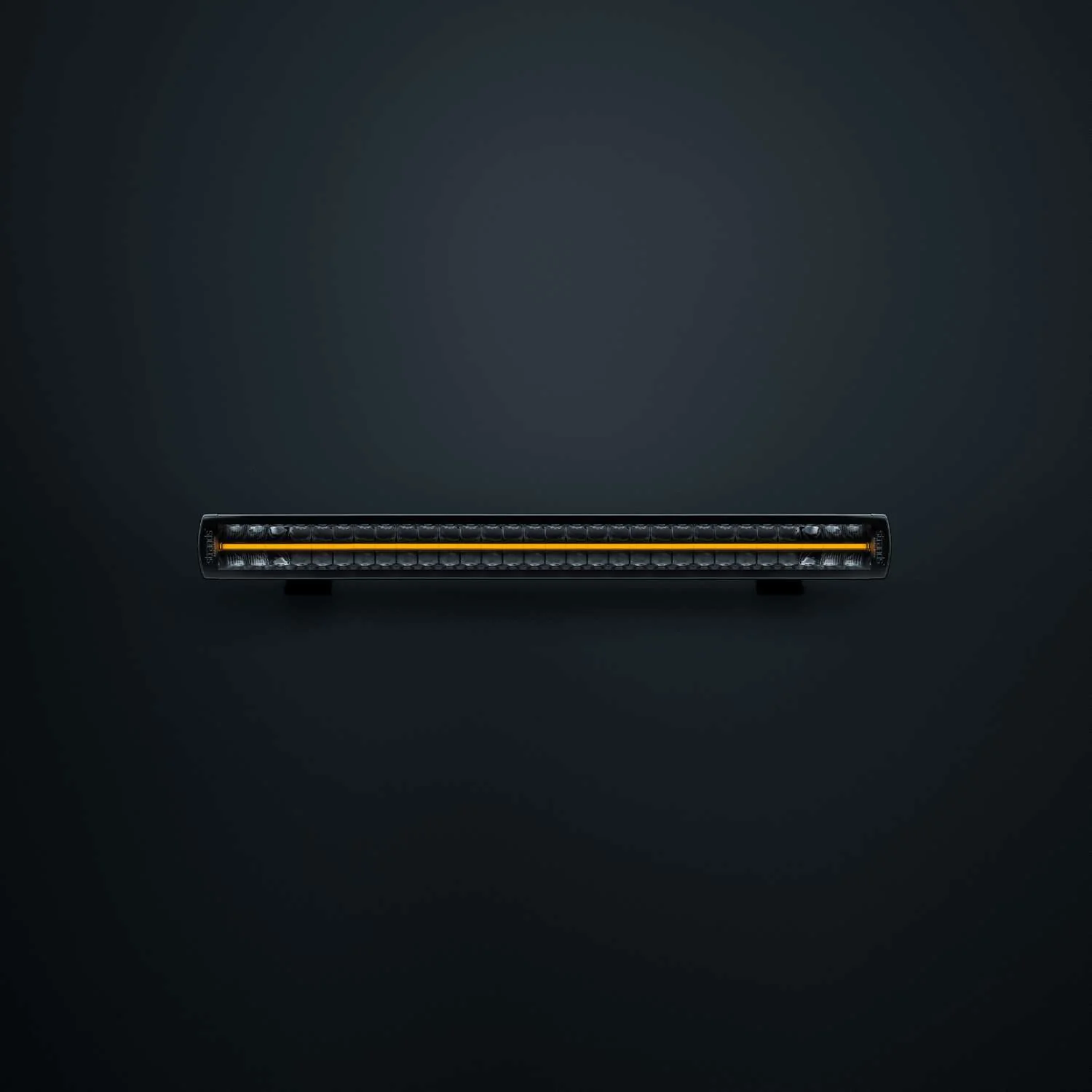

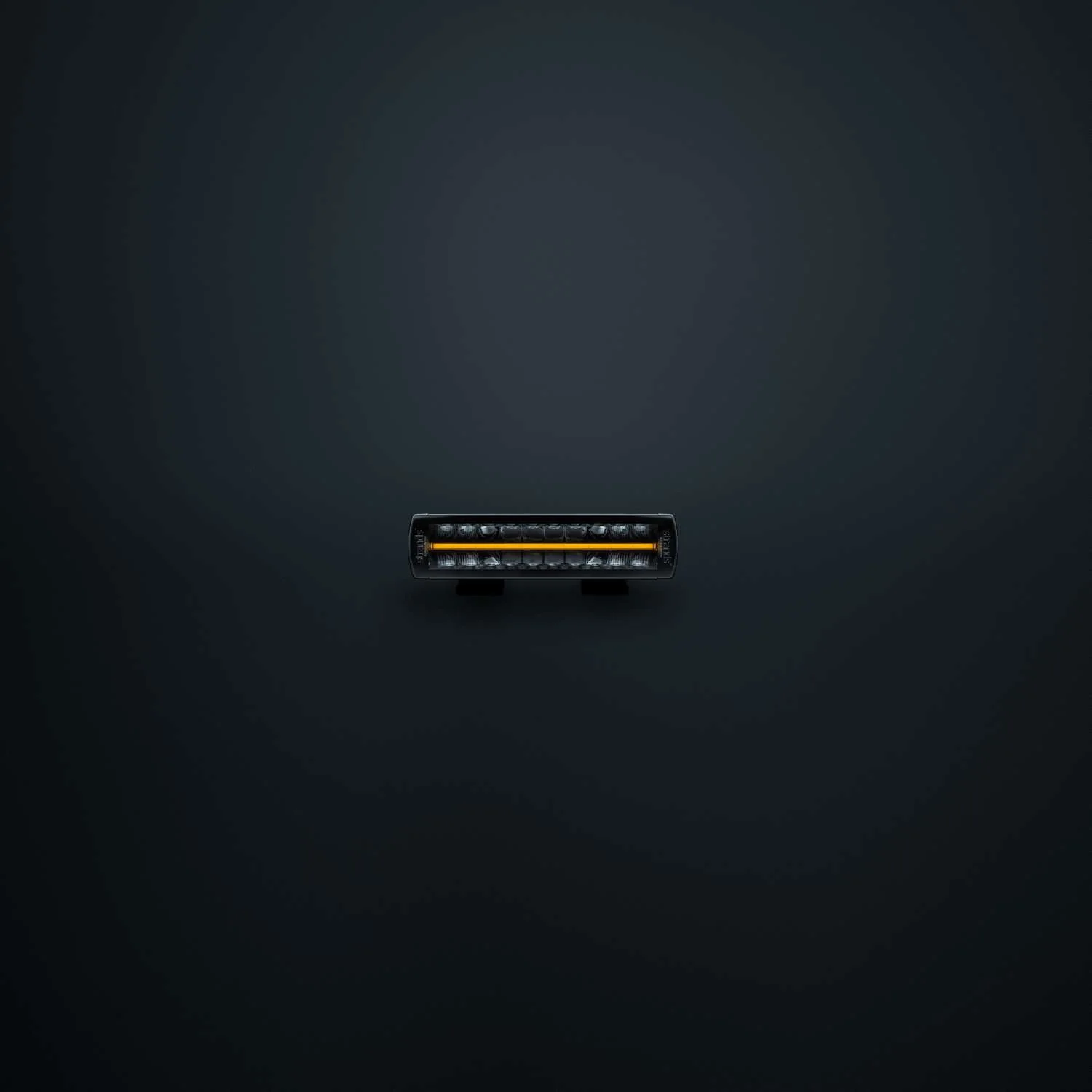

POSITION LIGHT	White & Amber	White & Amber	White & Amber	White & Amber	White & Amber	White & Amber
CONNECTION	DT-4 Pin	DT-4 Pin	DT-4 Pin	Cable	Cable	Cable
CABLE LENGTH	550mm	550mm	550mm	2500mm	2500mm	2500mm
MATERIAL HOUSING	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium
MATERIAL LENS	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate

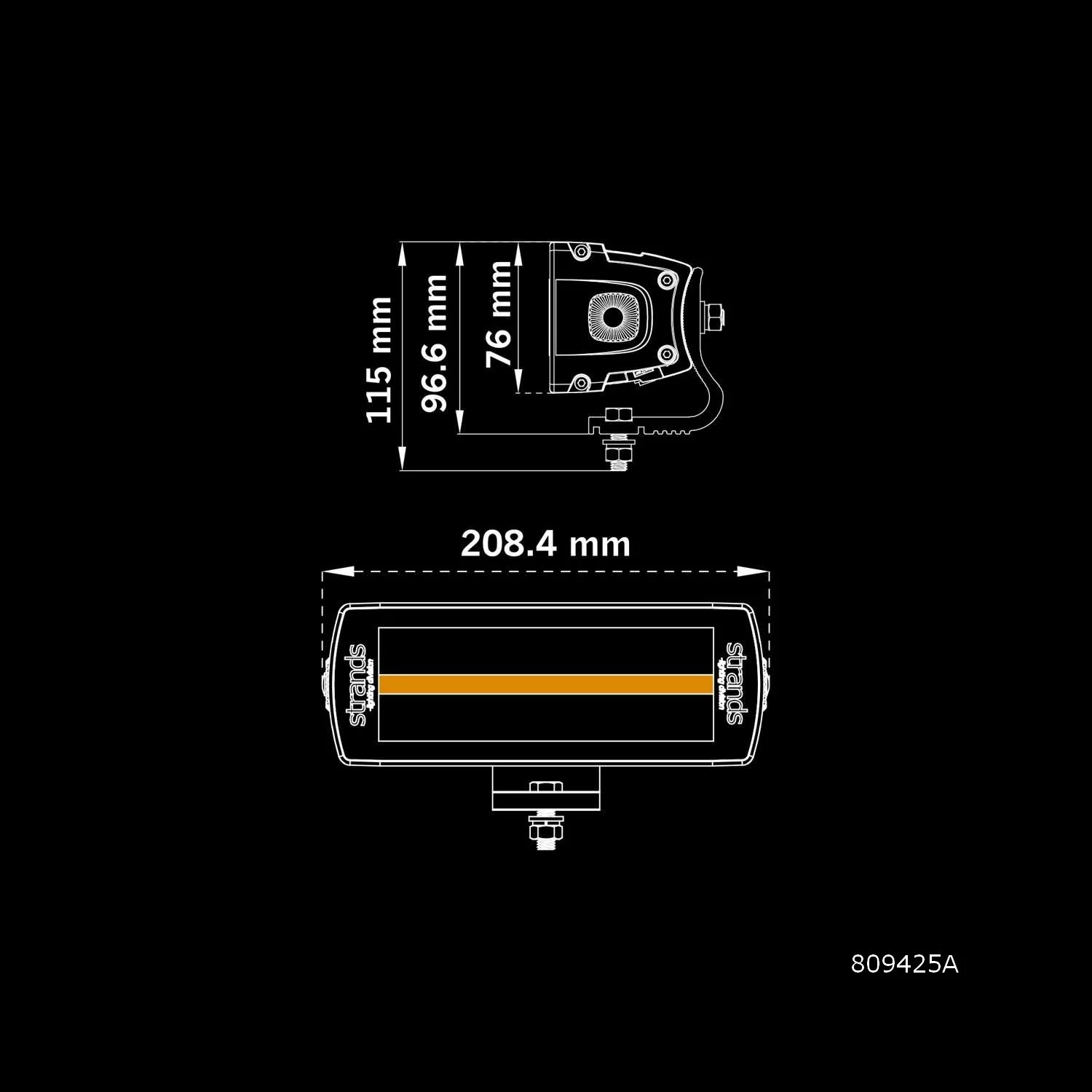

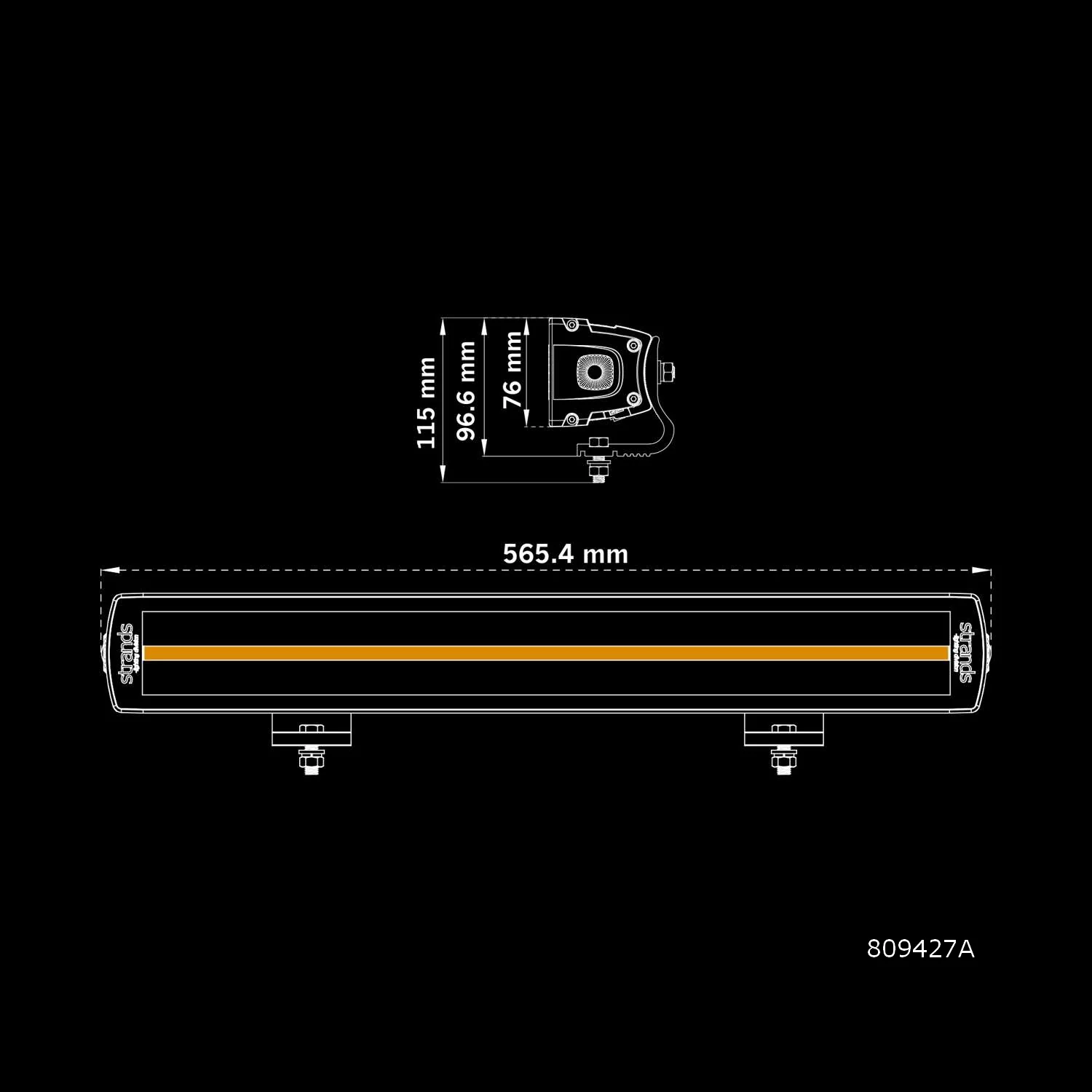

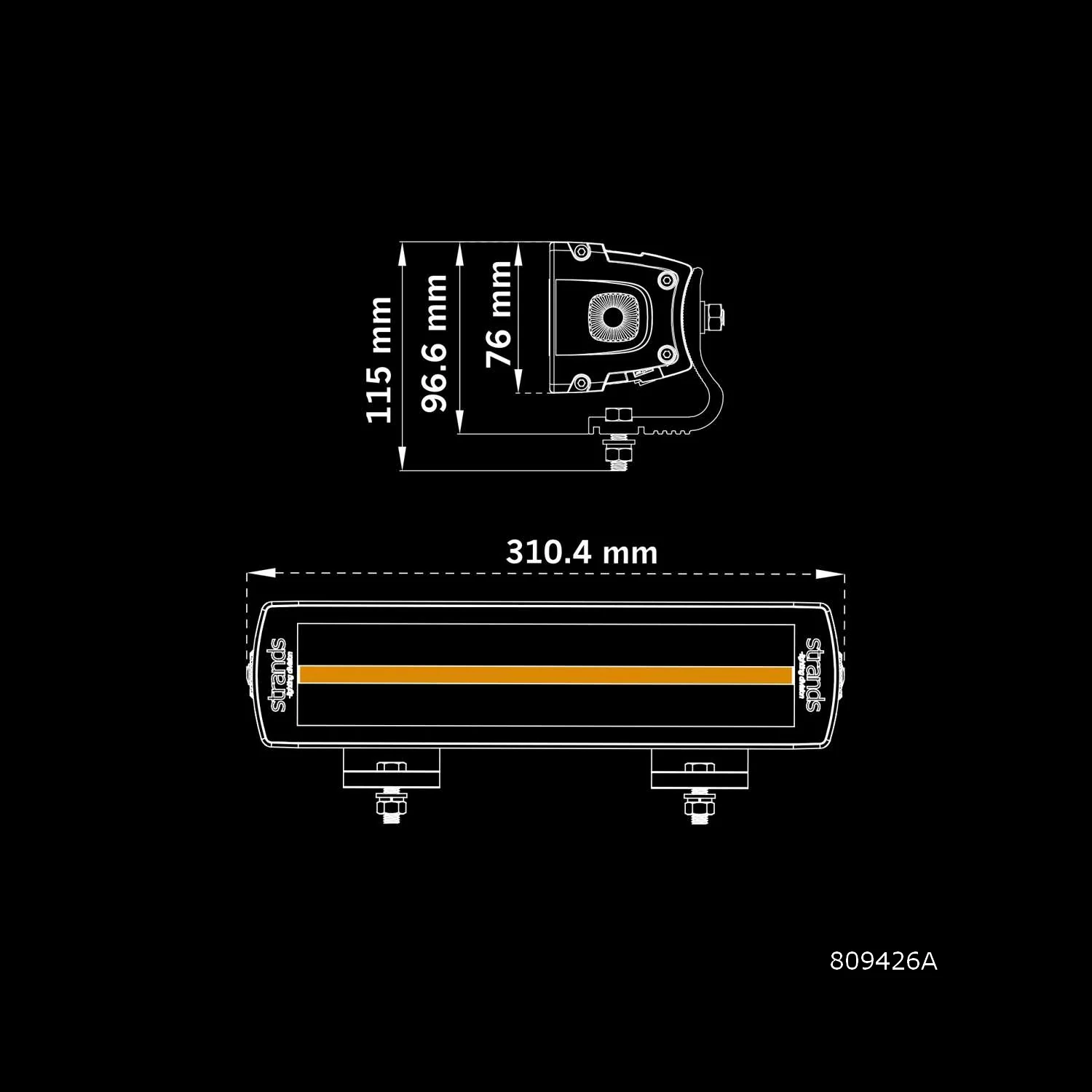

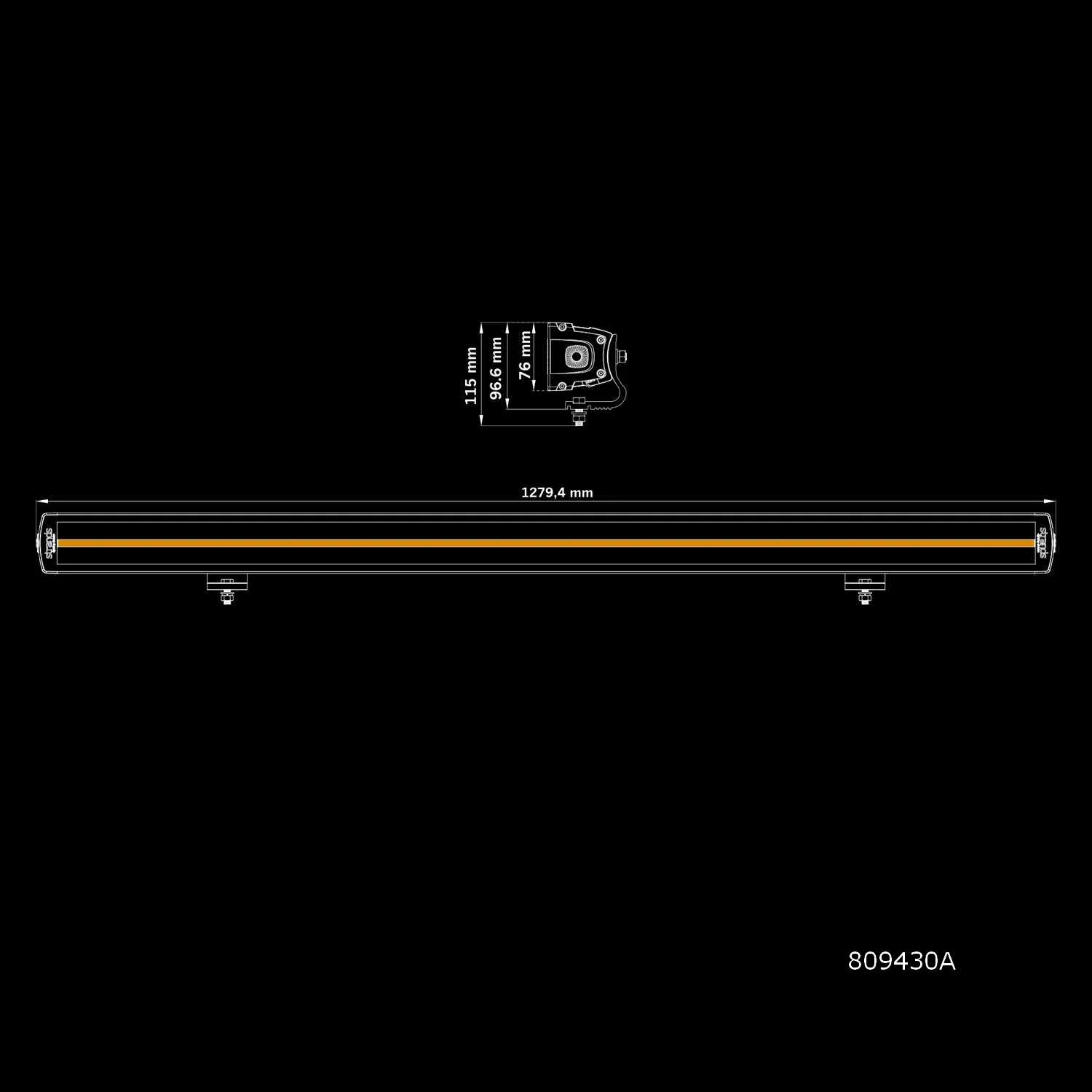

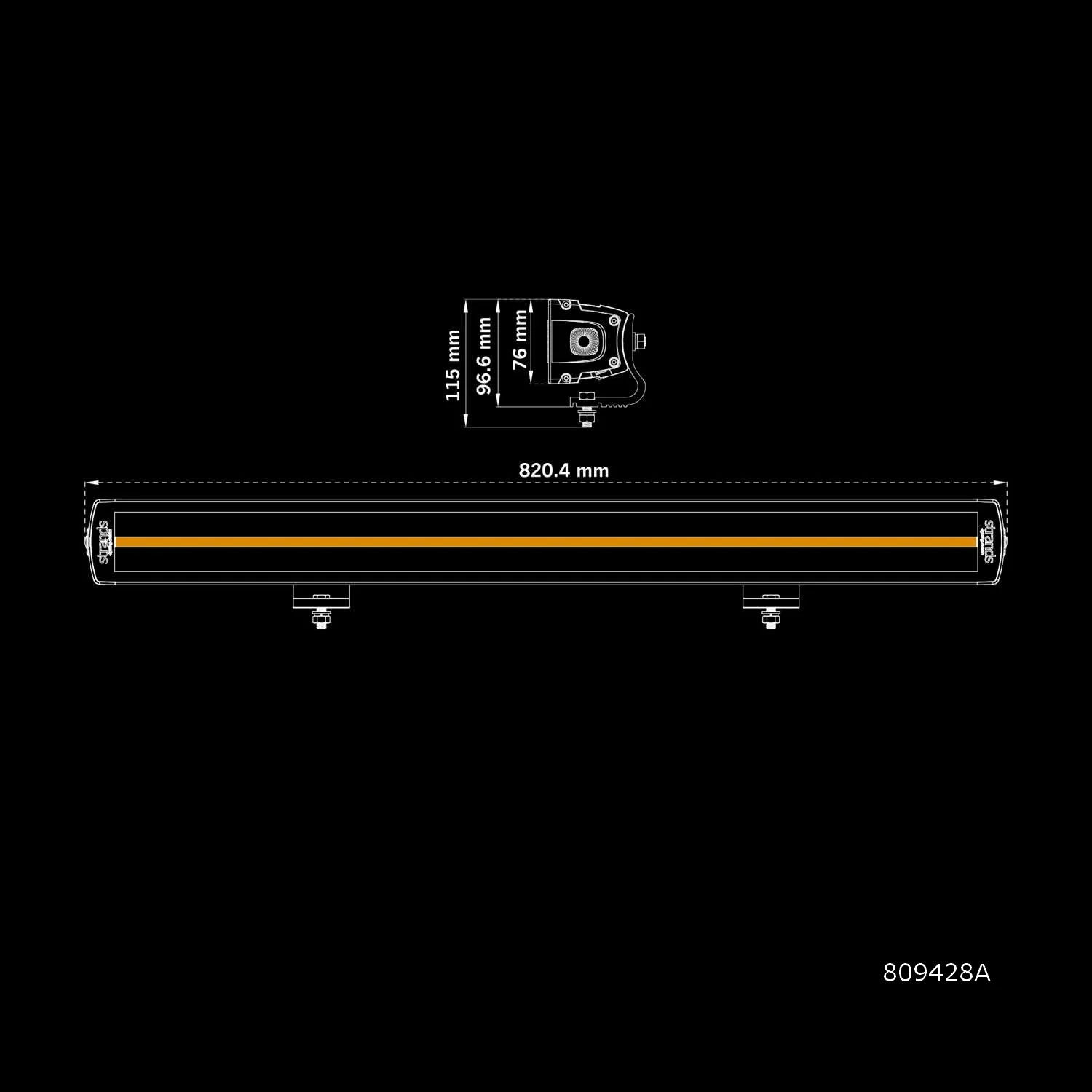

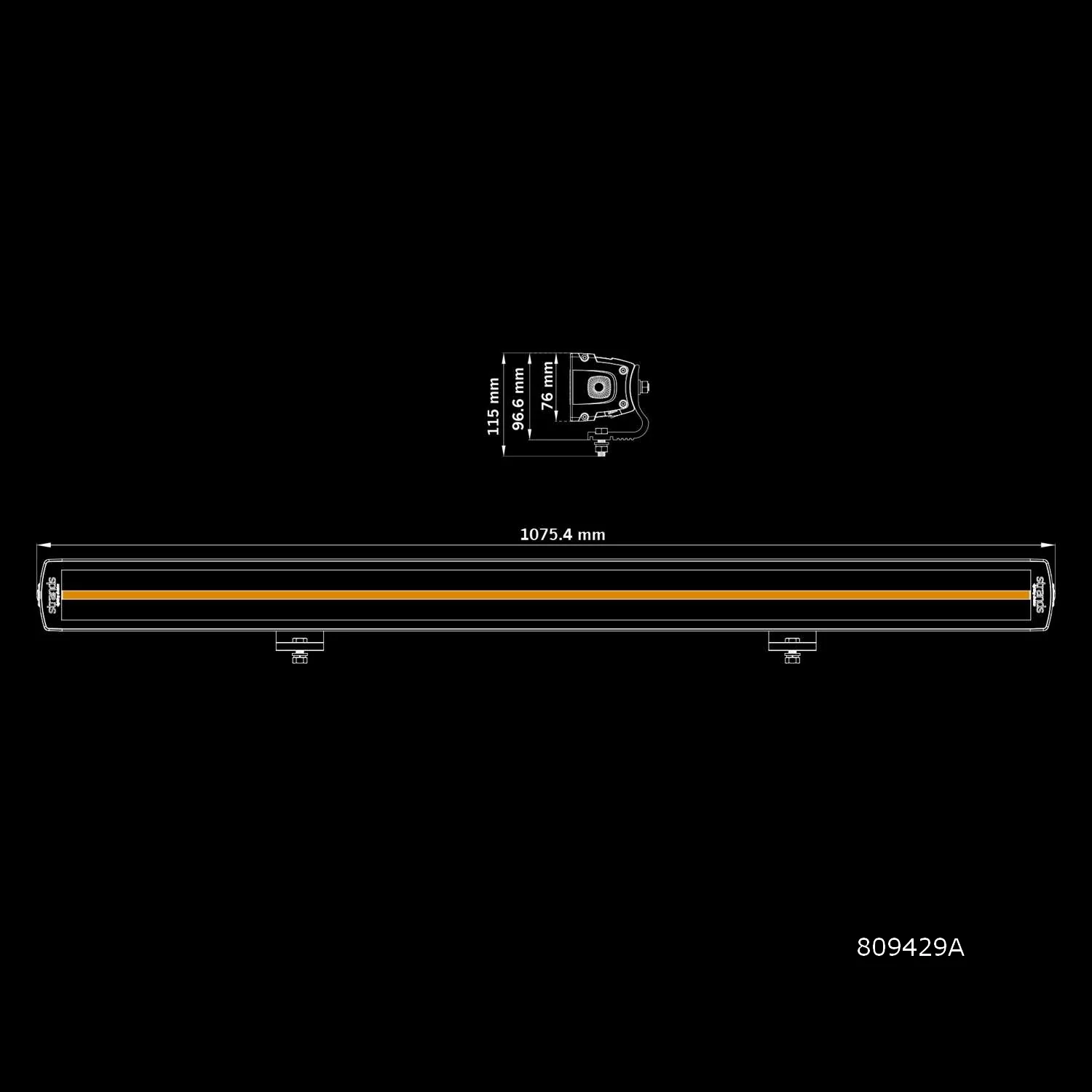

LENGTH	208.4 mm	310.4 mm	565.4 mm	820.4 mm	1075.4 mm	1279.4 mm
DEPTH	71.6 mm	71.6 mm	71.6 mm	71.6 mm	71.6 mm	71.6 mm
HEIGHT	76 mm	76 mm	76 mm	76 mm	76 mm	76 mm
HEIGHT INCLUDING BRACKET	96.6 mm	96.6 mm	96.6 mm	96.6 mm	96.6 mm	96.6 mm
OPERATING TEMPERATURE	-30°C - +65°C	-30°C - +65°C	-30°C - +65°C	-30°C - +65°C	-30°C - +65°C	-30°C - +65°C
E-APPROVED	Yes	Yes	Yes	Yes	Yes	Yes
ACCORDING TO ECE REGULATION	R148(R7),R149(R112)	R148(R7),R149(R112)	R148(R7),R149(R112)	R148(R7),R149(R112)	R148(R7),R149(R112)	R148(R7),R149(R112)
EMC-CERTIFICATE	ECE R10	ECE R10	ECE R10	ECE R10	ECE R10	ECE R10
