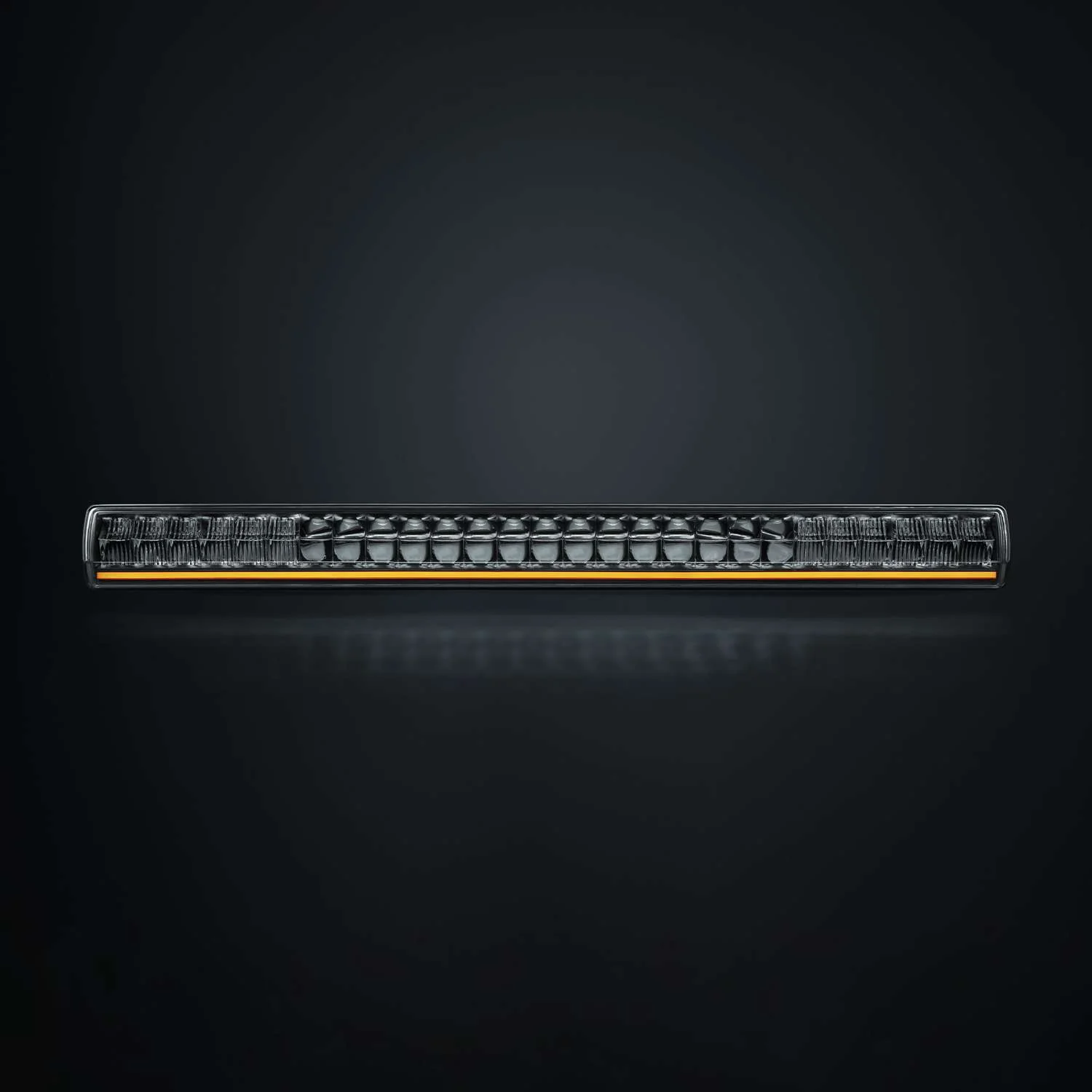

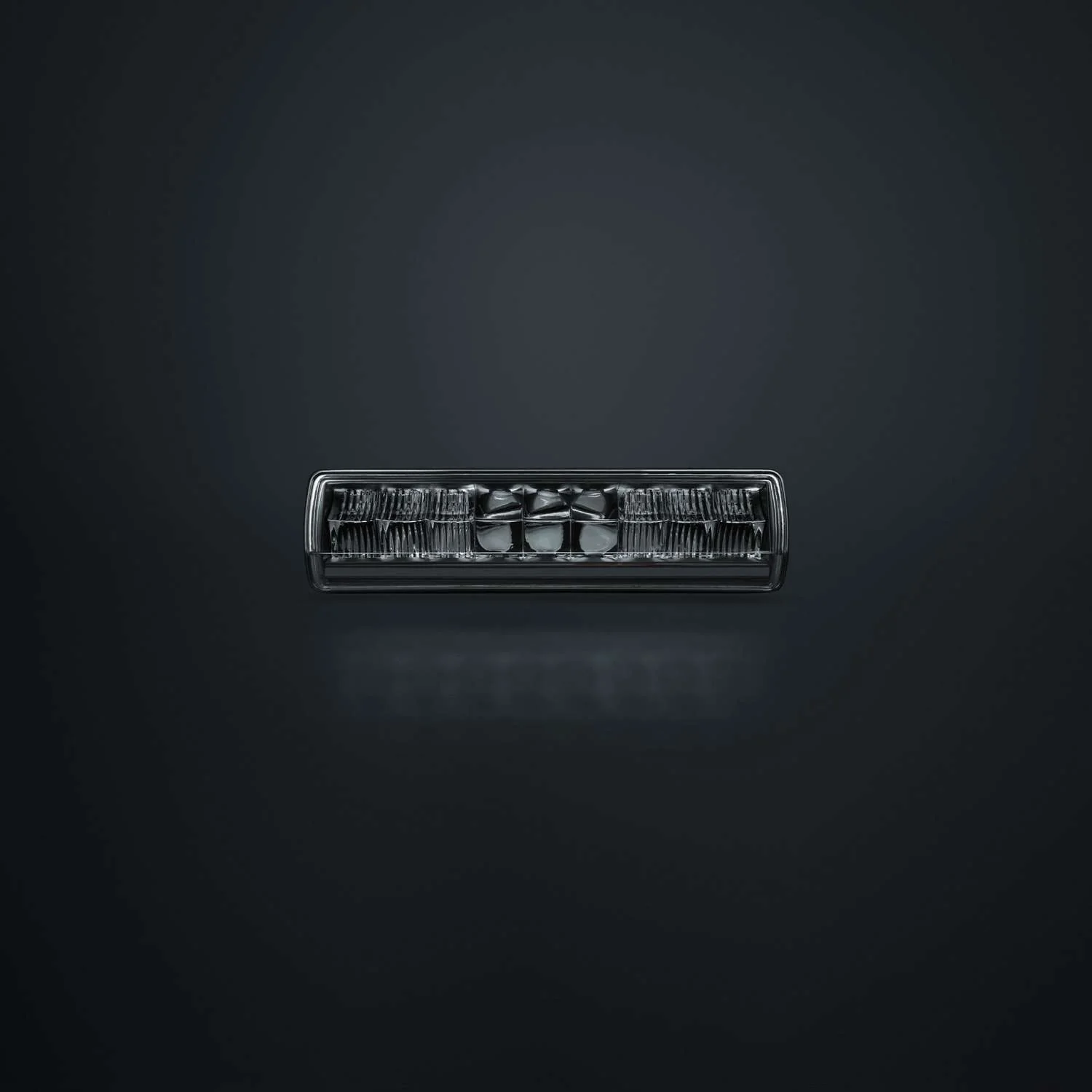

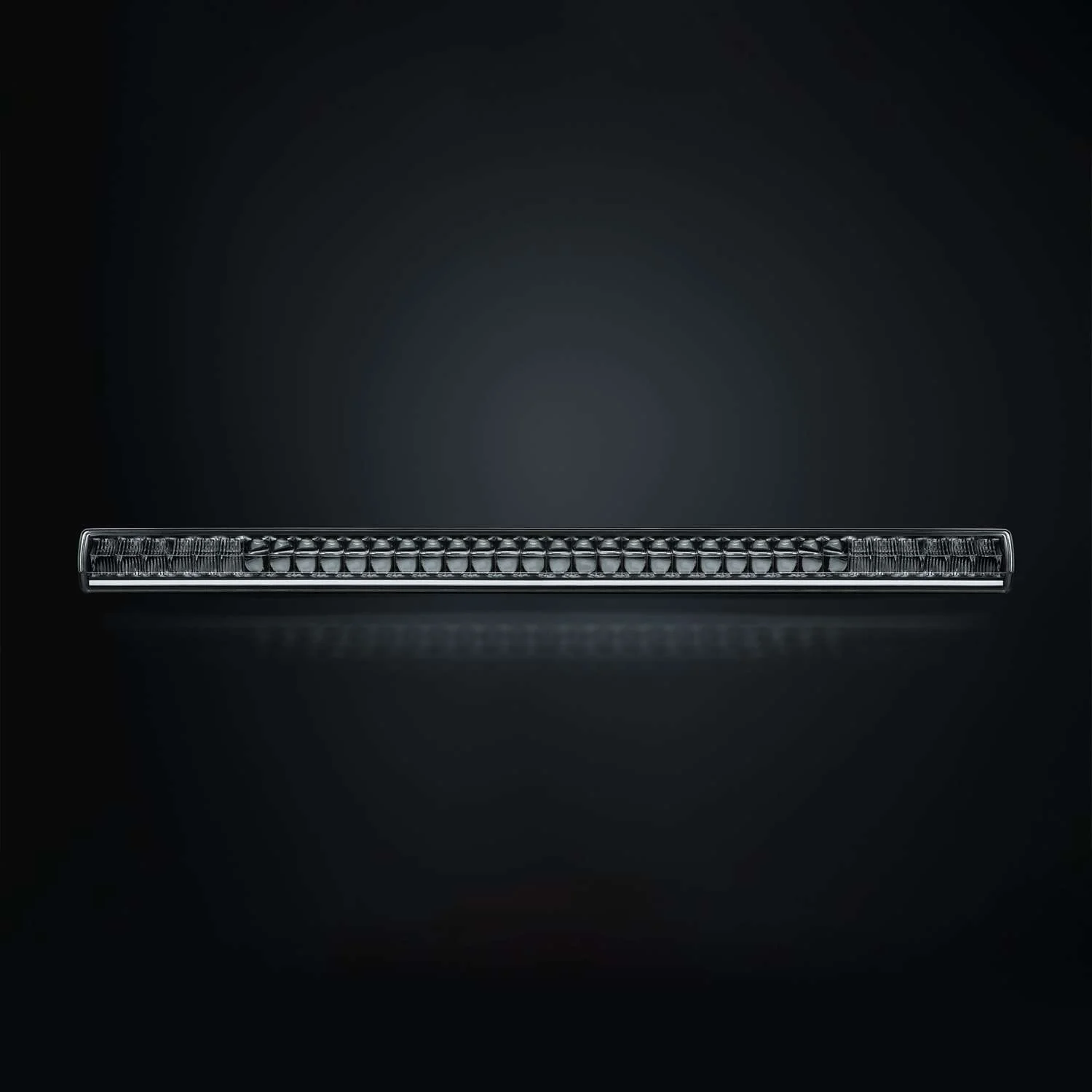

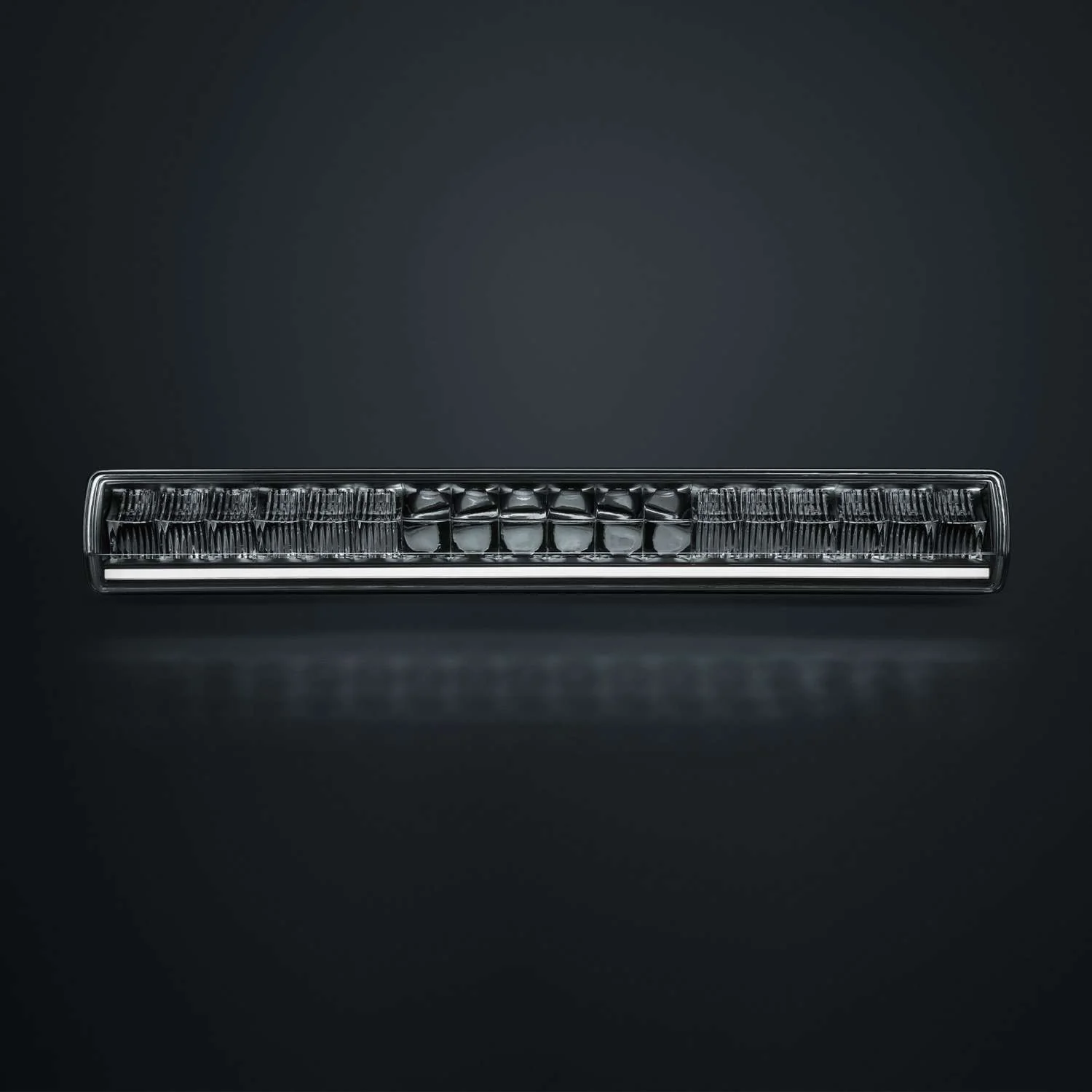

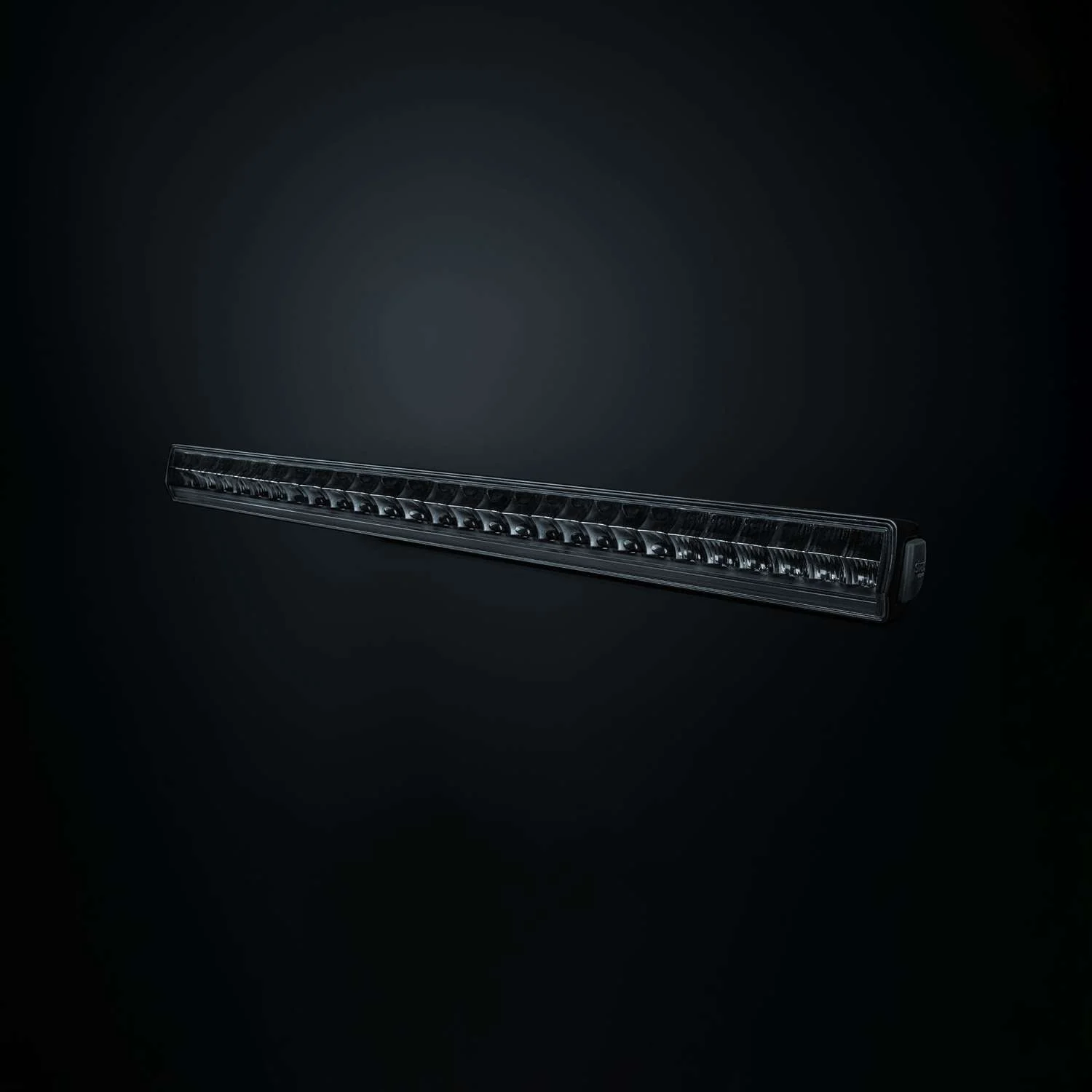

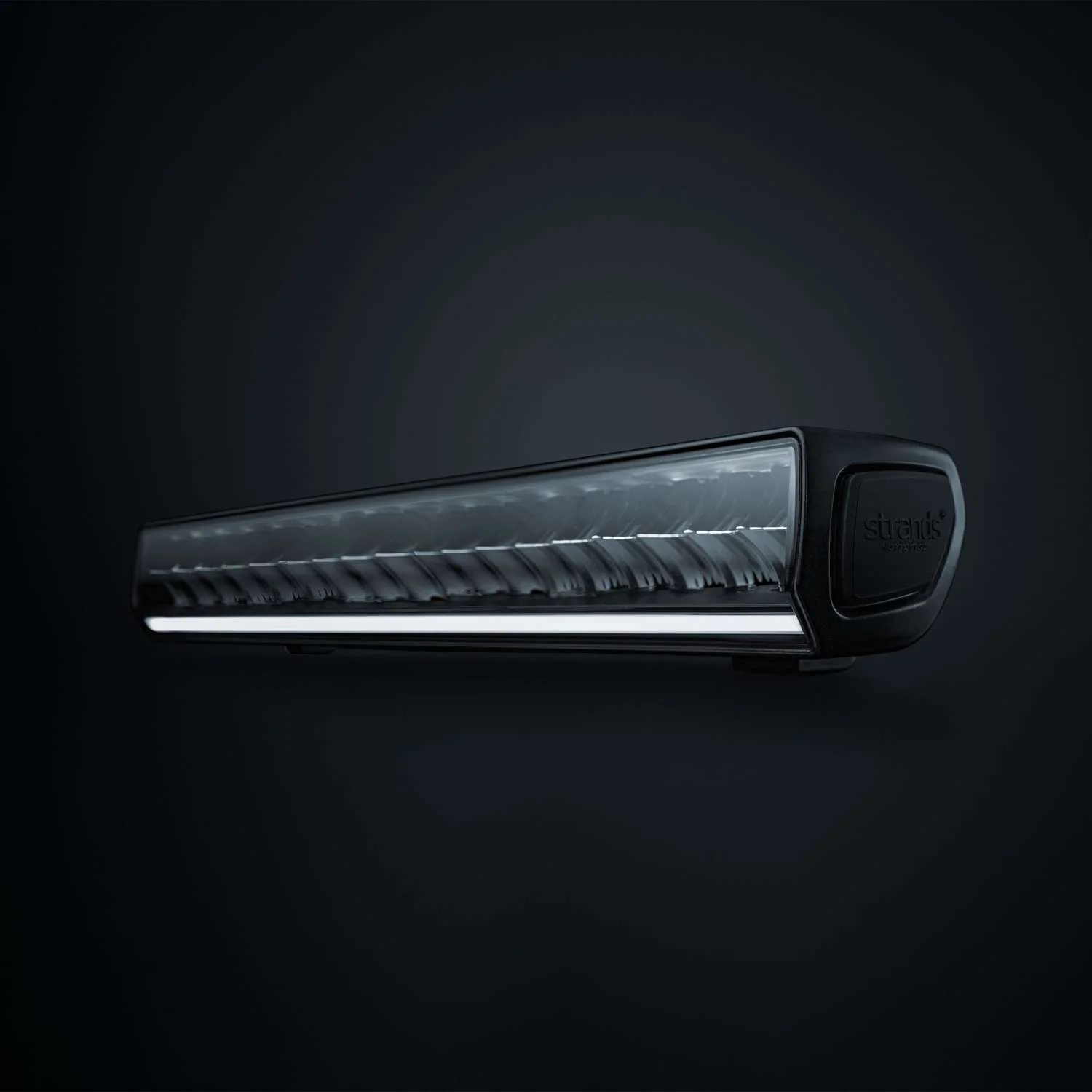

Skylord LED BAR (10"-40")
Description
5-year warranty

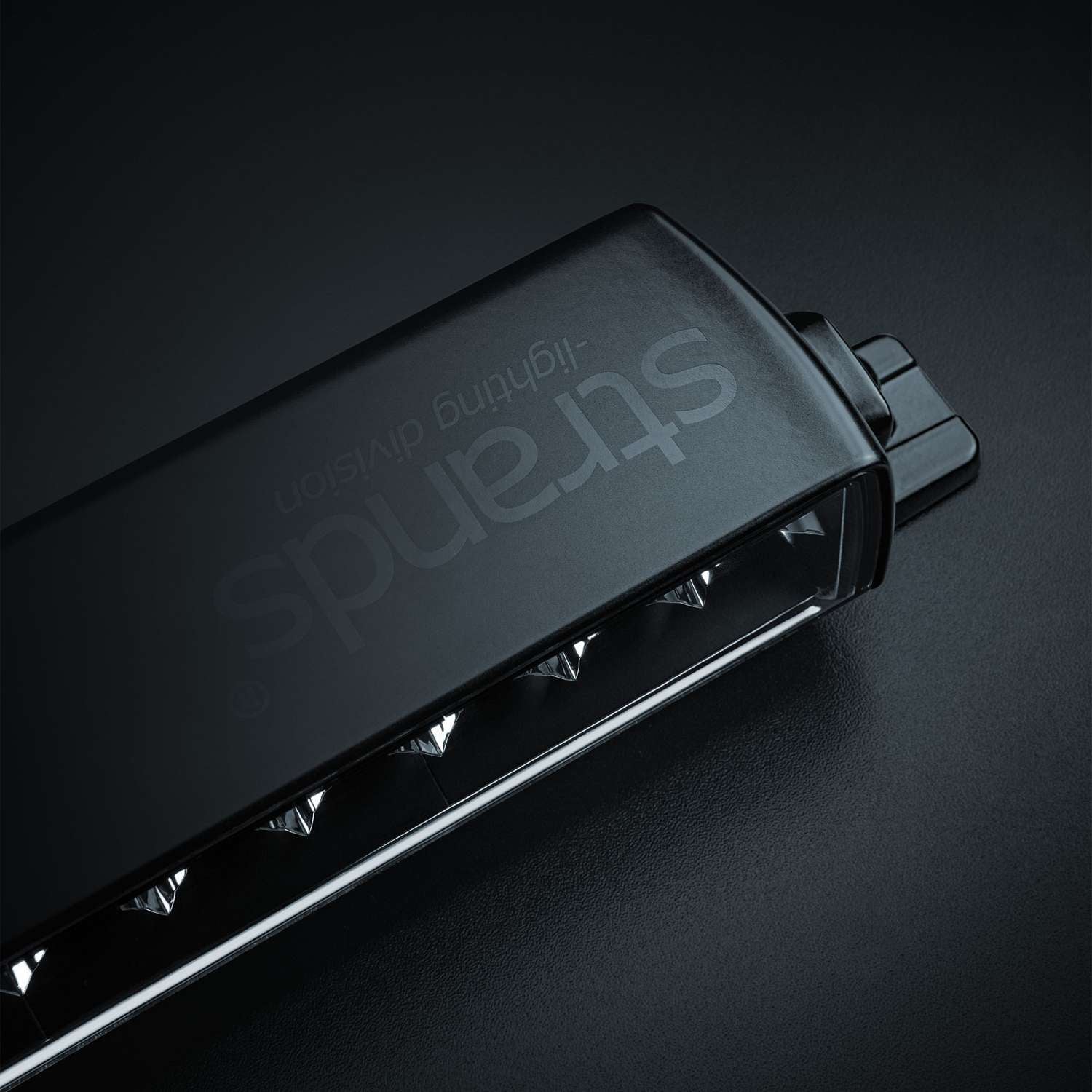

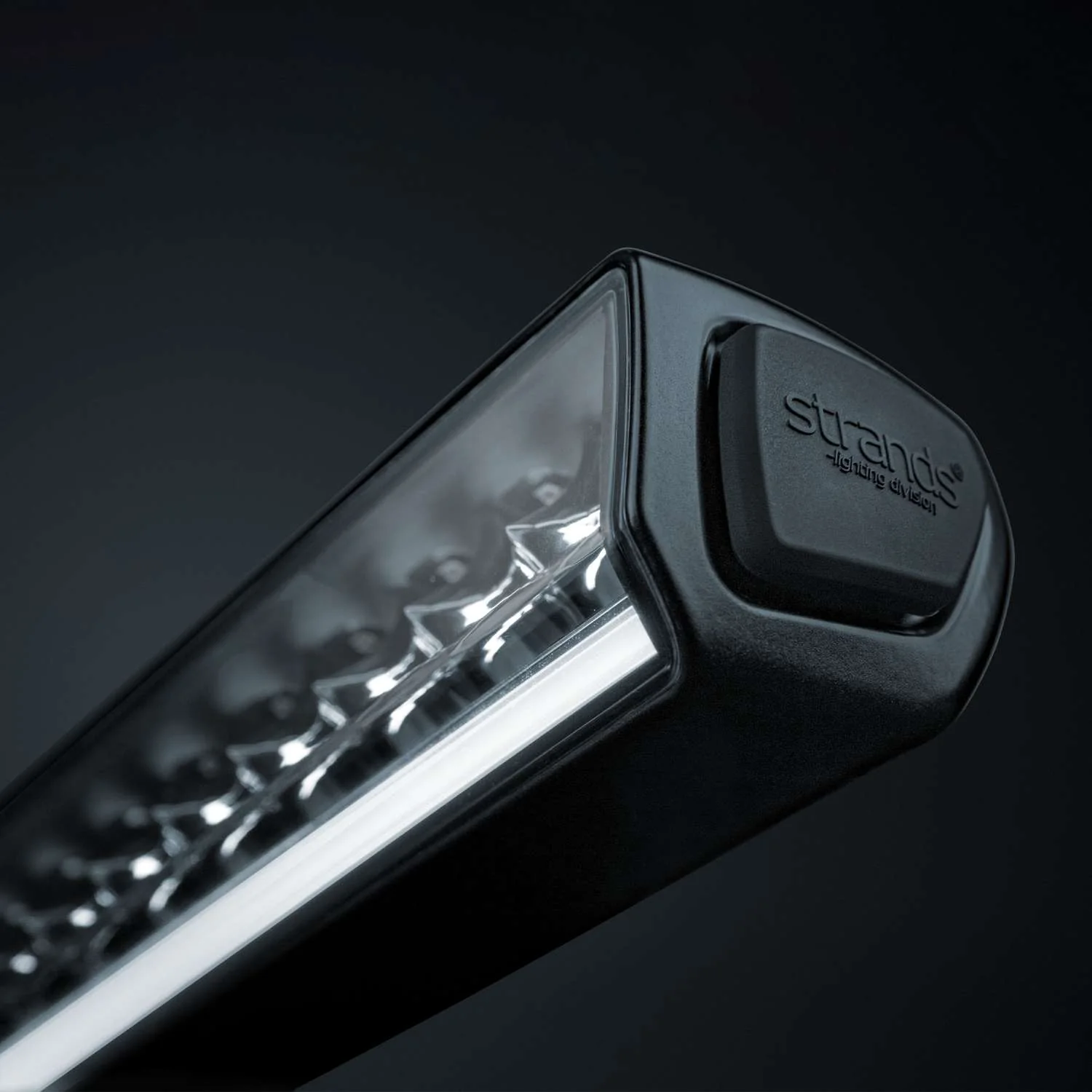

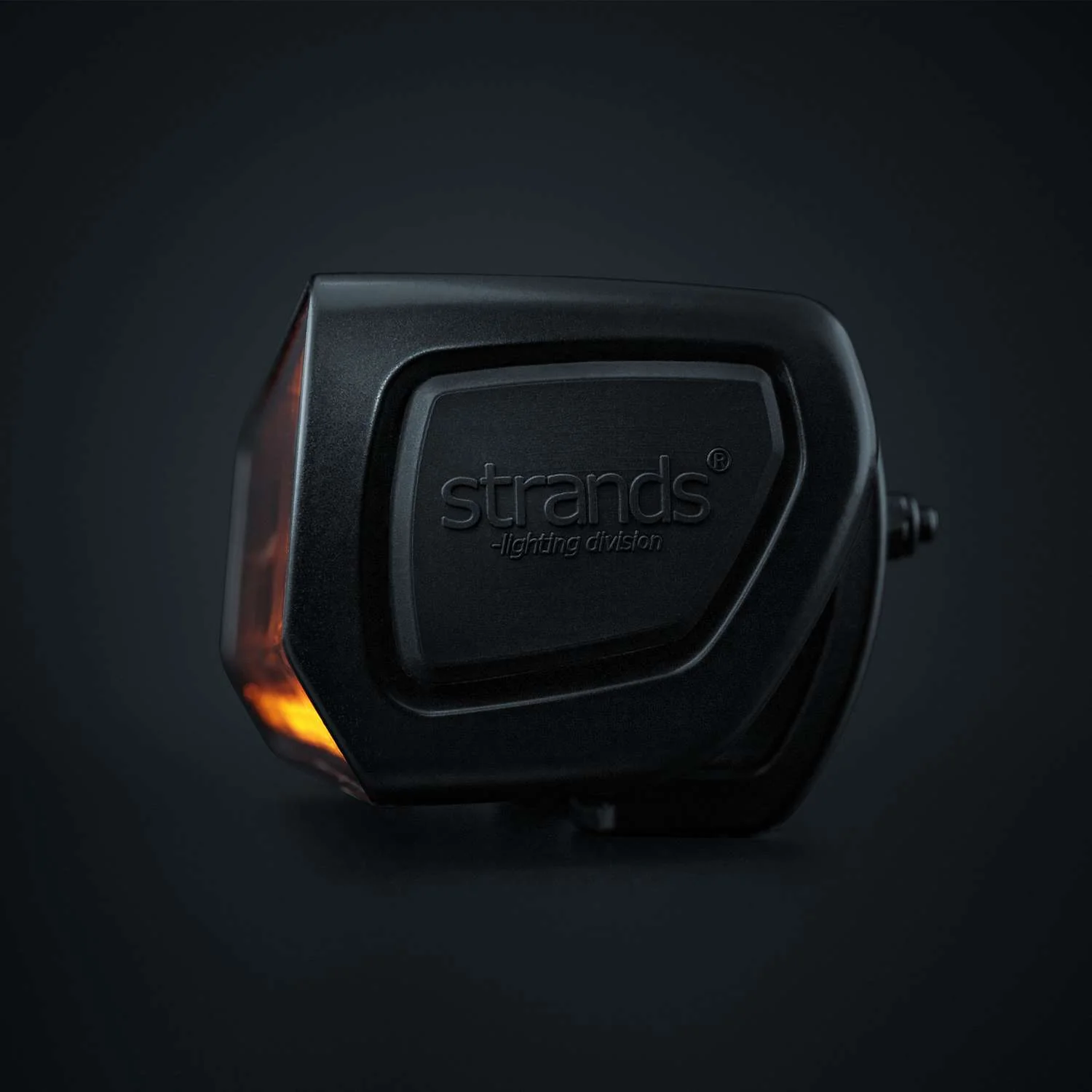

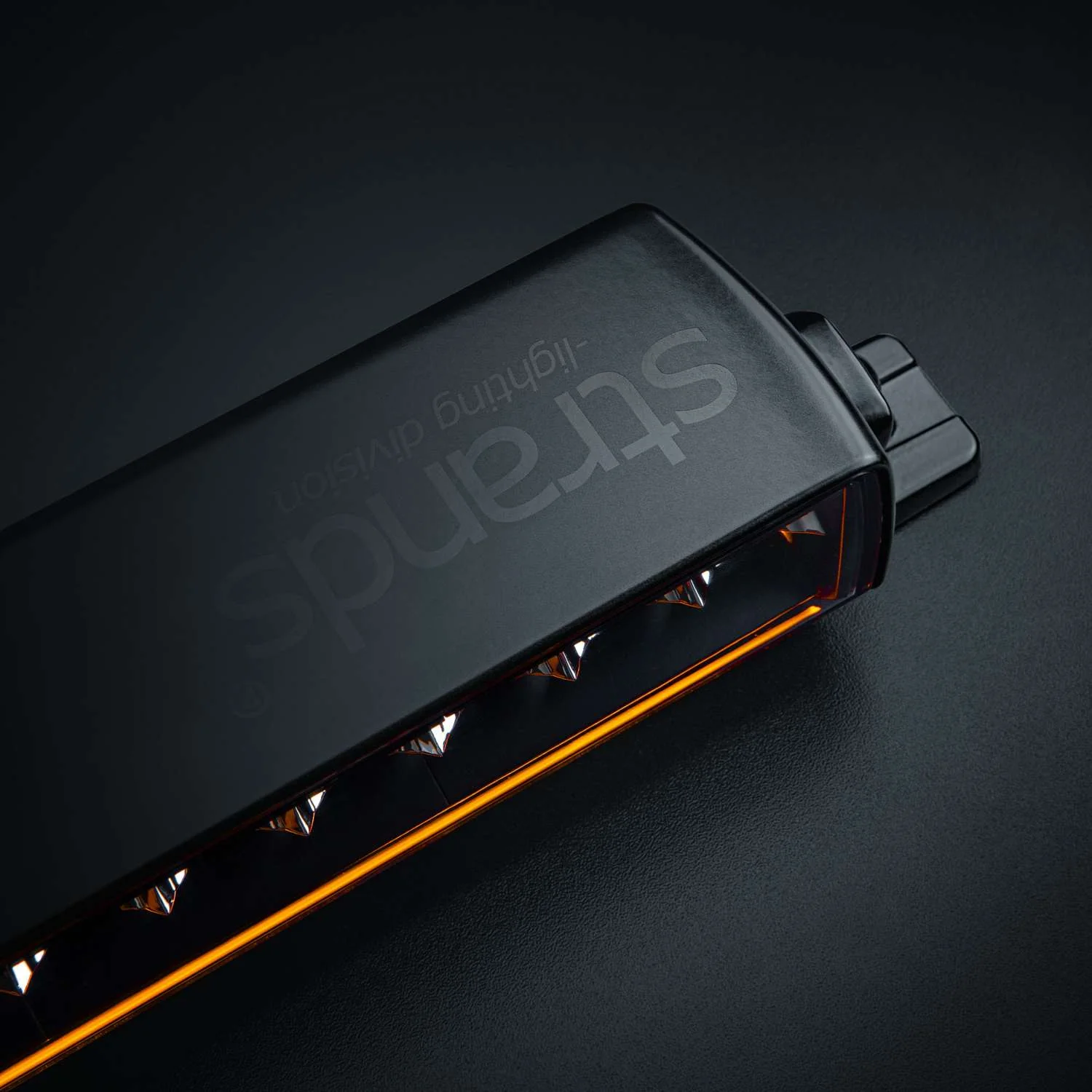

This is the next generation of LED bars, with an output tailored to provide a new kind of lighting experience. The housing is cast in one piece, securing it against water, corrosion, vibrations, and dirt. Since the housing has no screw holes, it offers superior protection against wear and tear. It’s waterproof, IP-rated IP69K, and has a new type of coating. It features double breathers and a solid build, making it especially suited to heavier vehicles. It’s covered by Strands’ unique 5-year warranty.One LED bar, 2x20 reference number
By combining clever design and innovative technology, we have integrated a dual light source into a single LED bar. This means that in the E-approved E-mode (R148/149), the 20”-40” Skylords have a reference number of 2x20. The 10” version has reference number 20. In many European countries, a dual light source is a requirement for road-legal lighting. This solution allows the Skylord LED bar to deliver more actual lumens while remaining approved in E-mode.1 lux @ 1 km

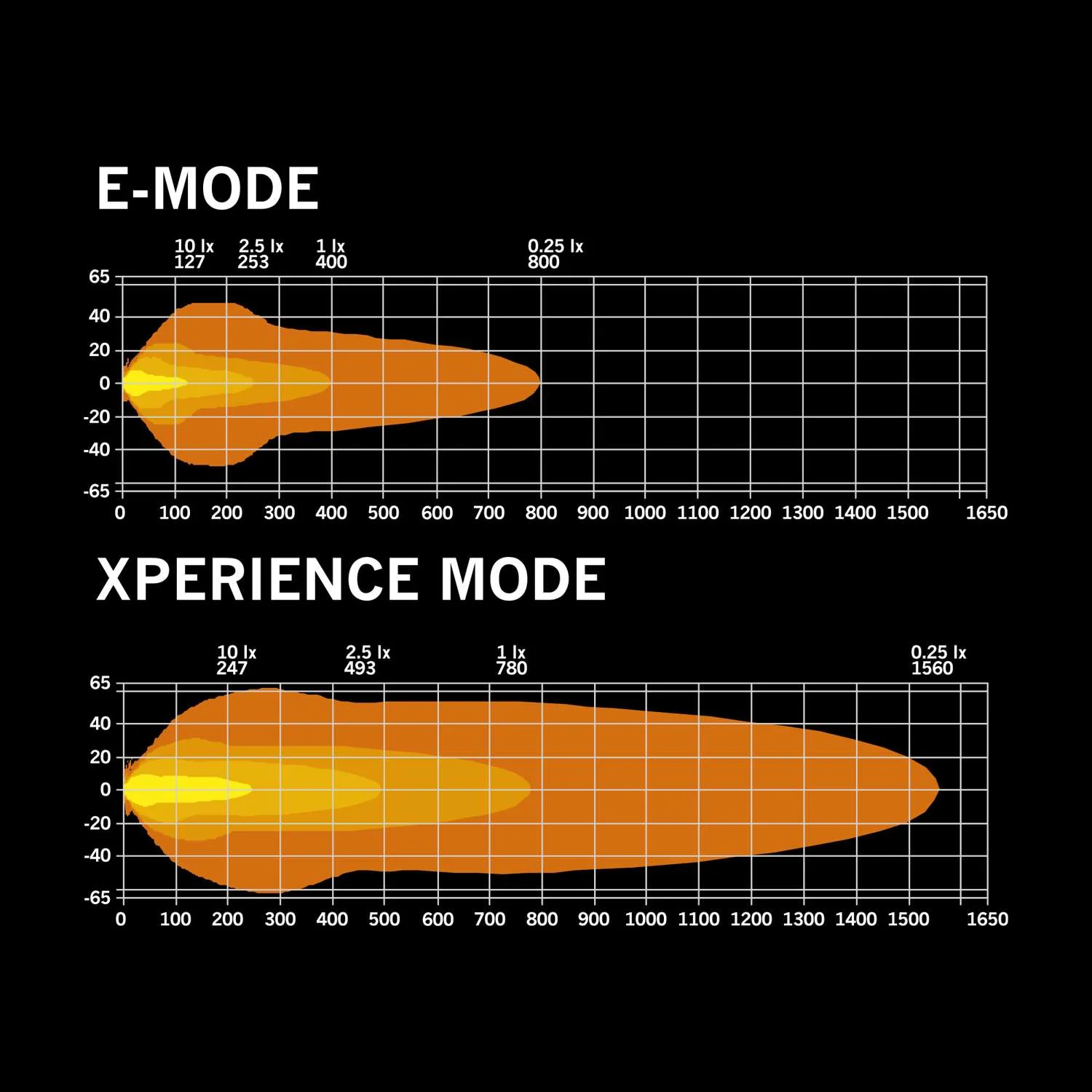

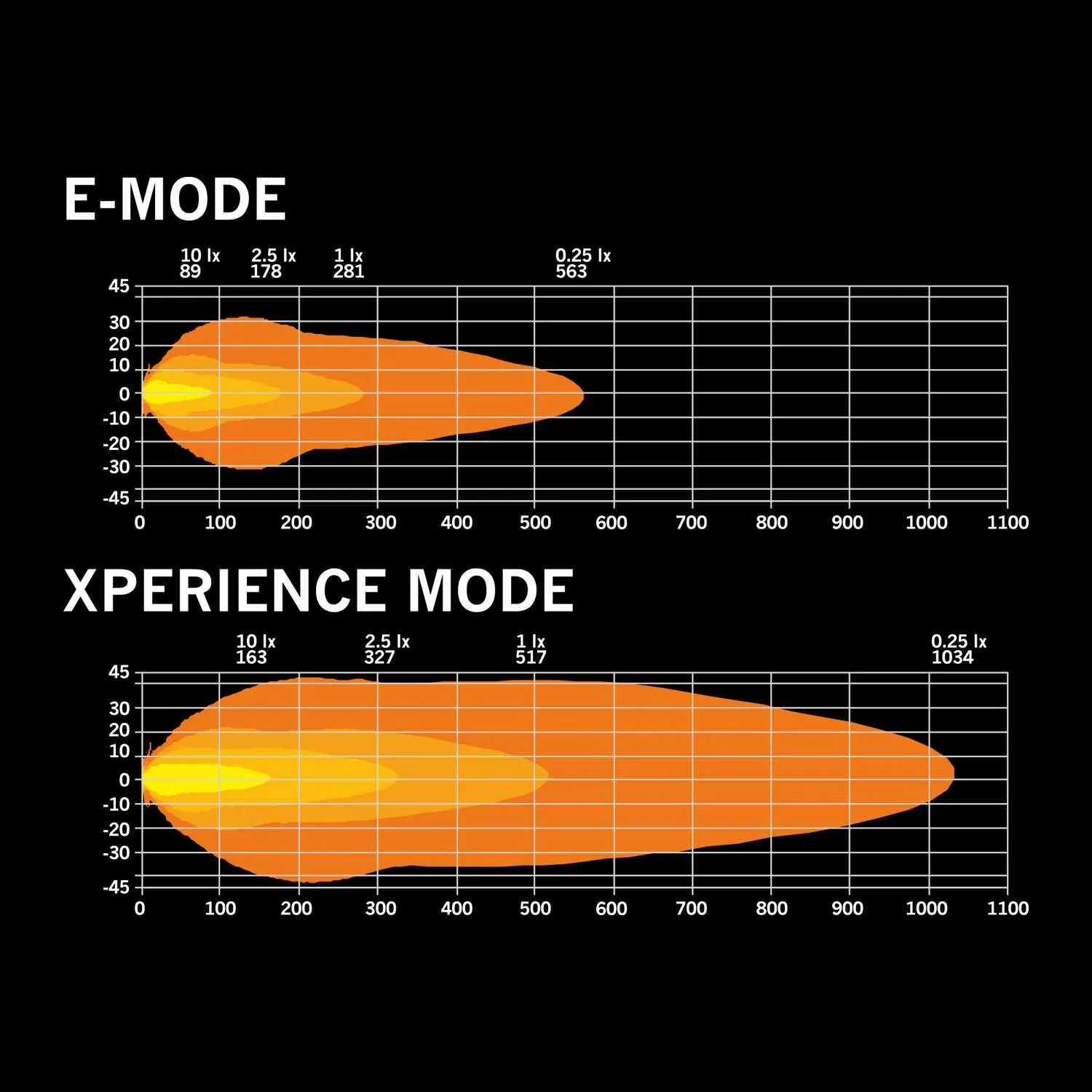

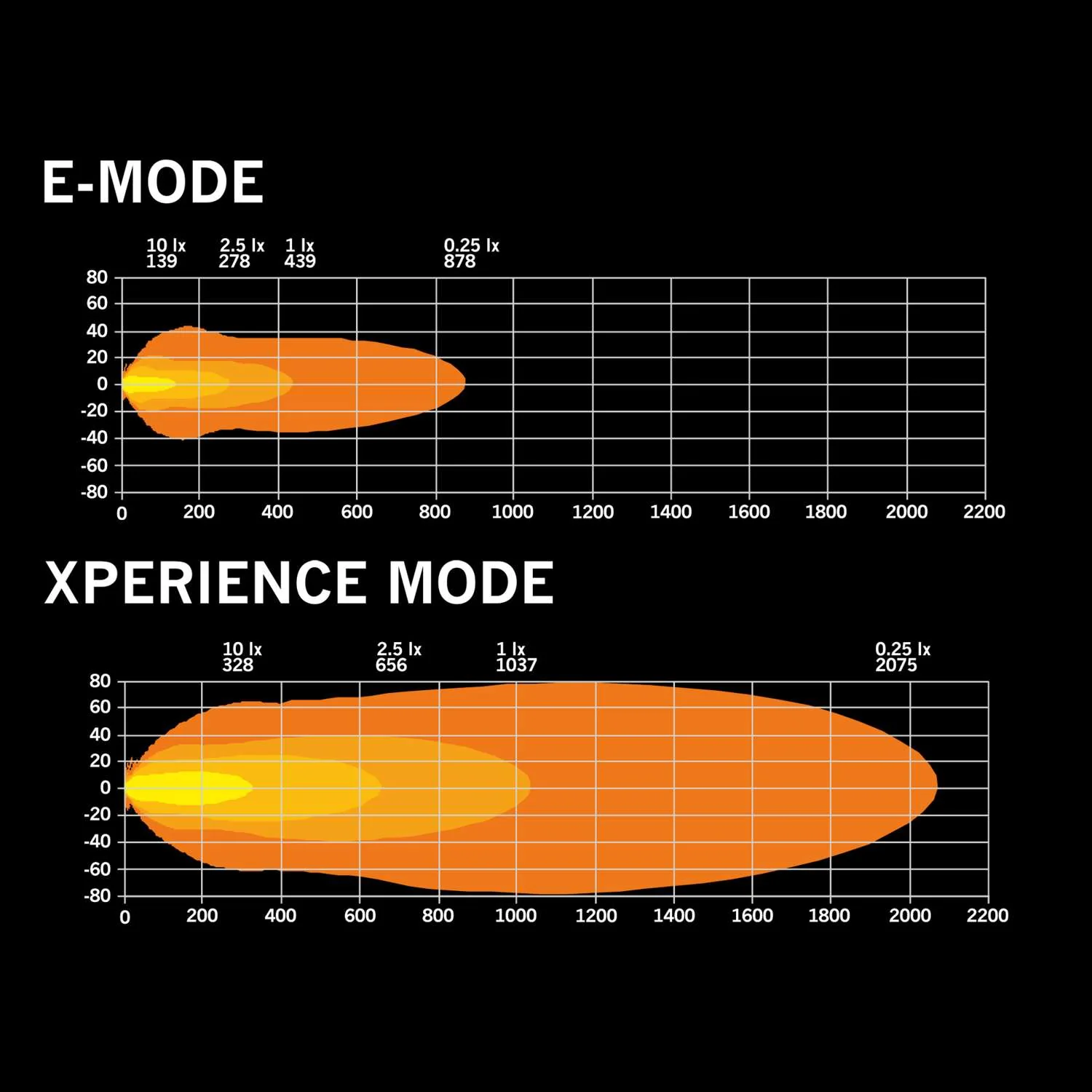

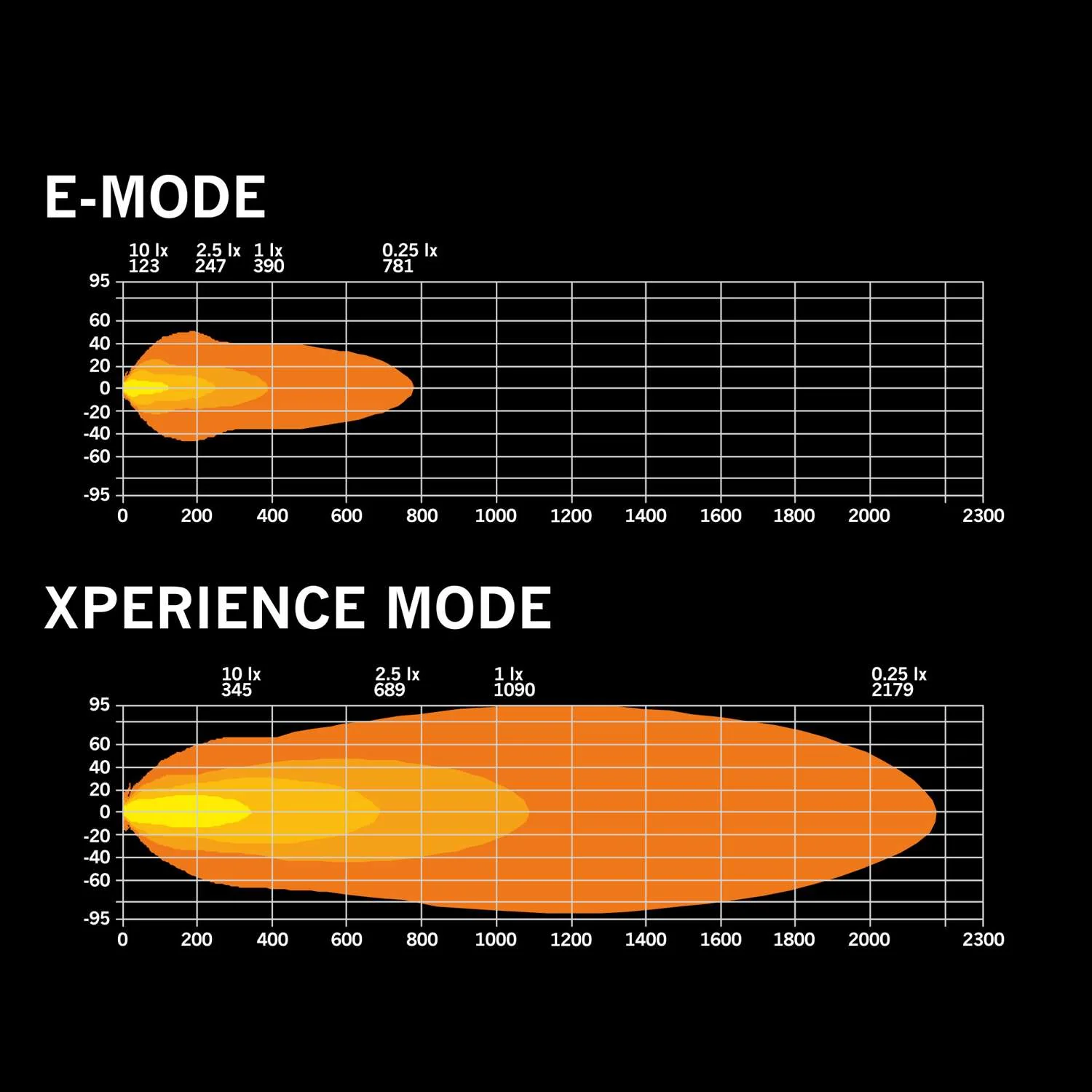

Thanks to the effective technology, the Skylord output is unique. The new beam pattern provides maximum visibility to both the front and sides. It reaches further than the average combo beam and is broader and stronger closer to the vehicle than ordinary long-distance beams. All Skylord LED bars can be used with the E-approved E-mode or with Xperience mode. The Xperience mode is a powerful boost mode that reaches over 30,000 actual lumens and 1 lux @ 1 km for the 40” model.Plug and play installation

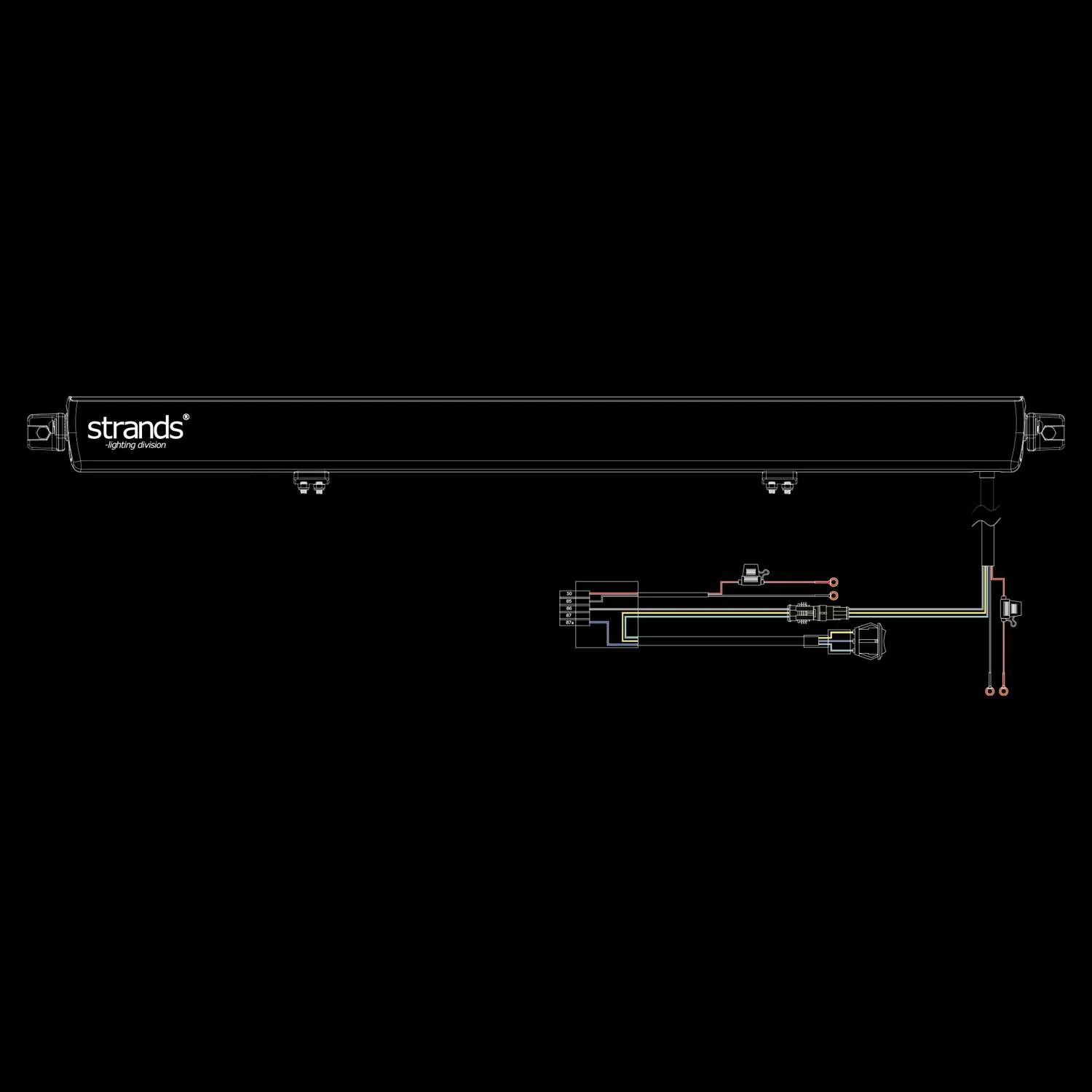

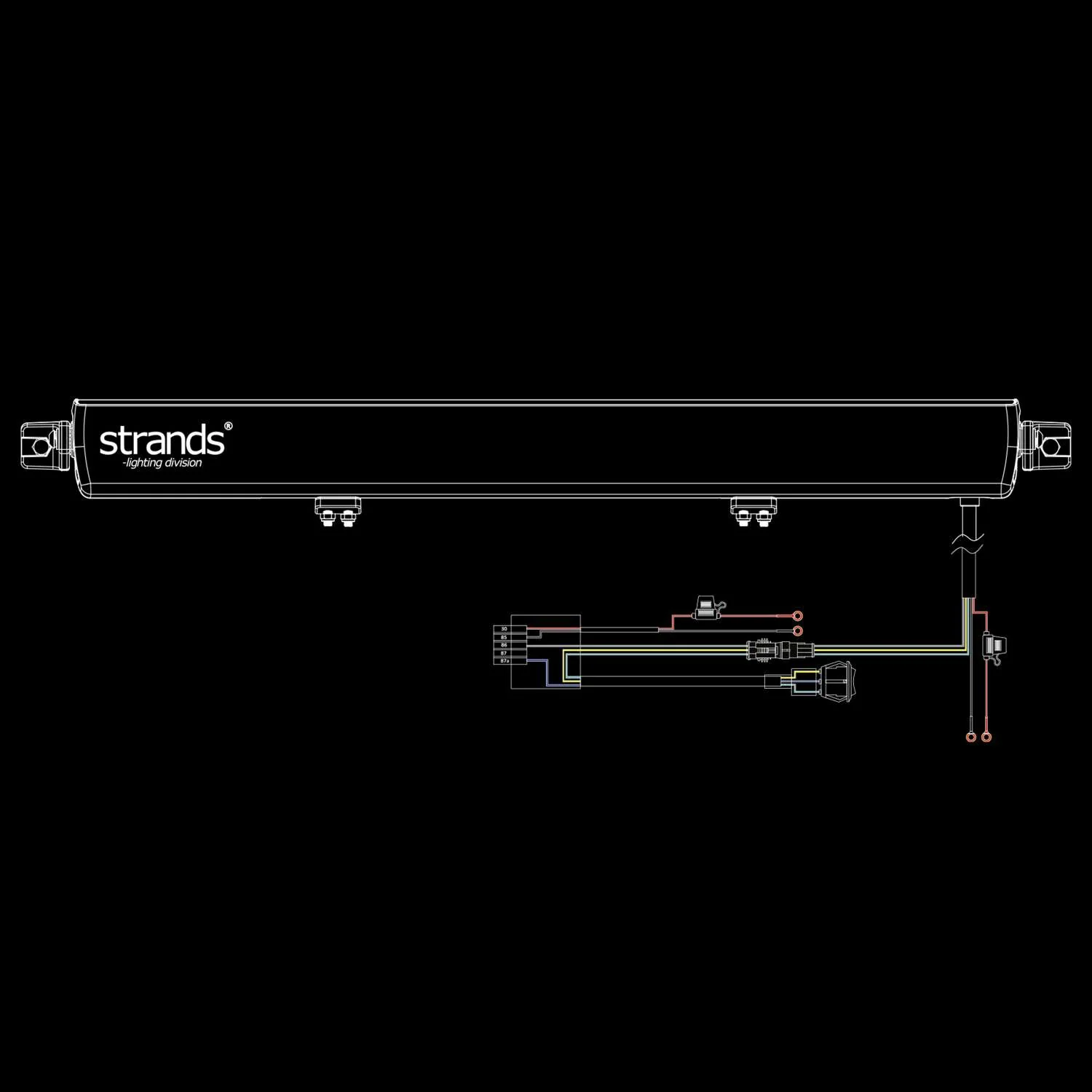

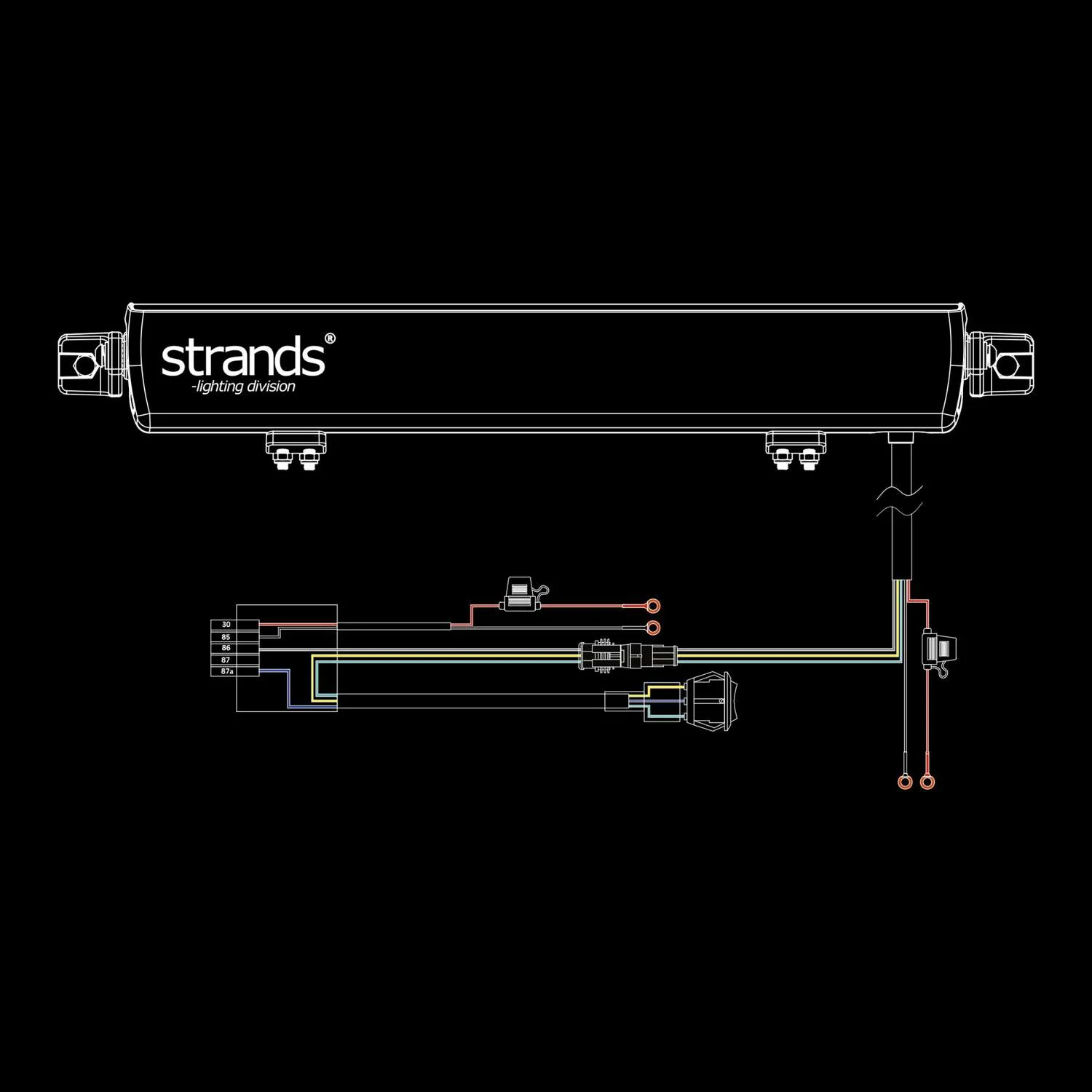

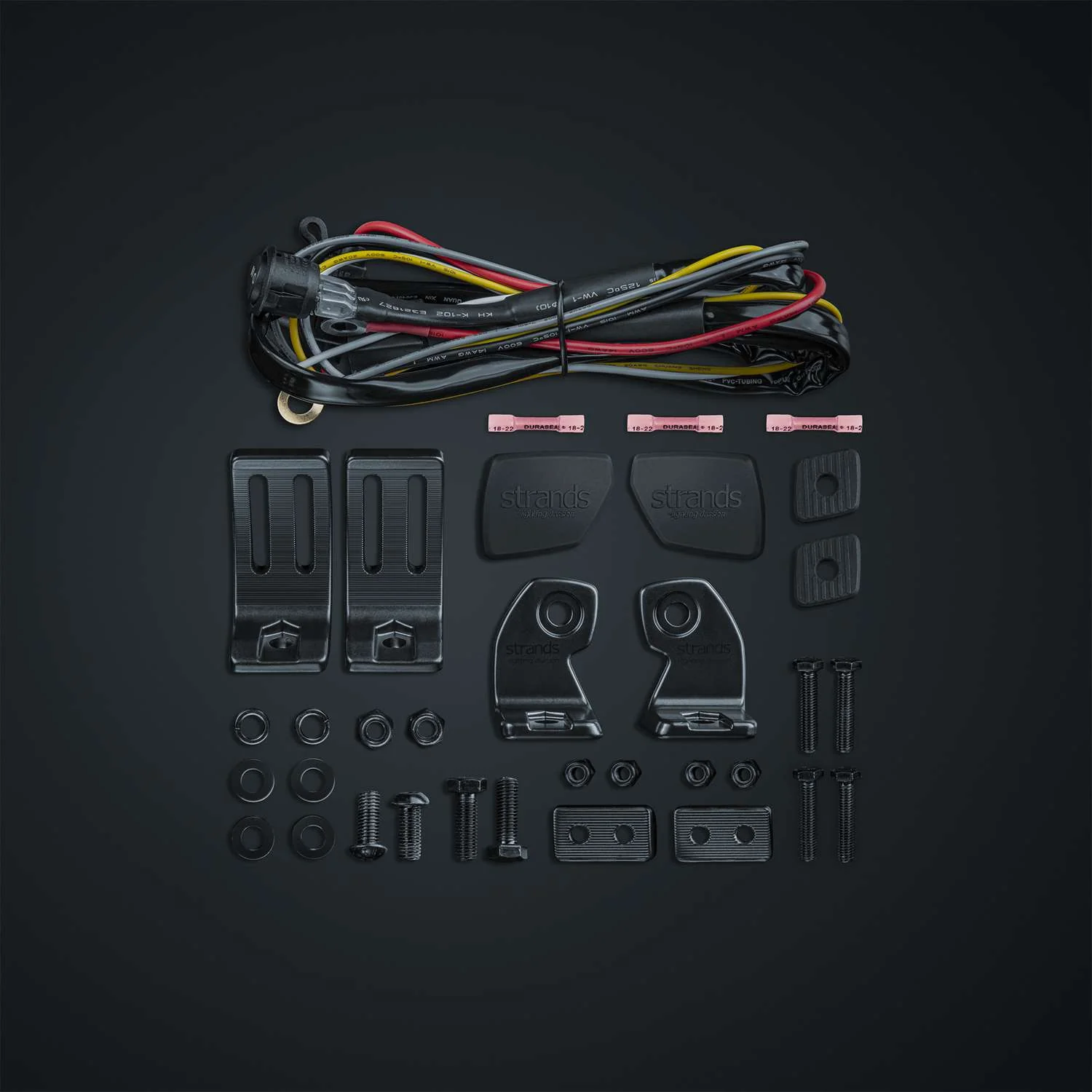

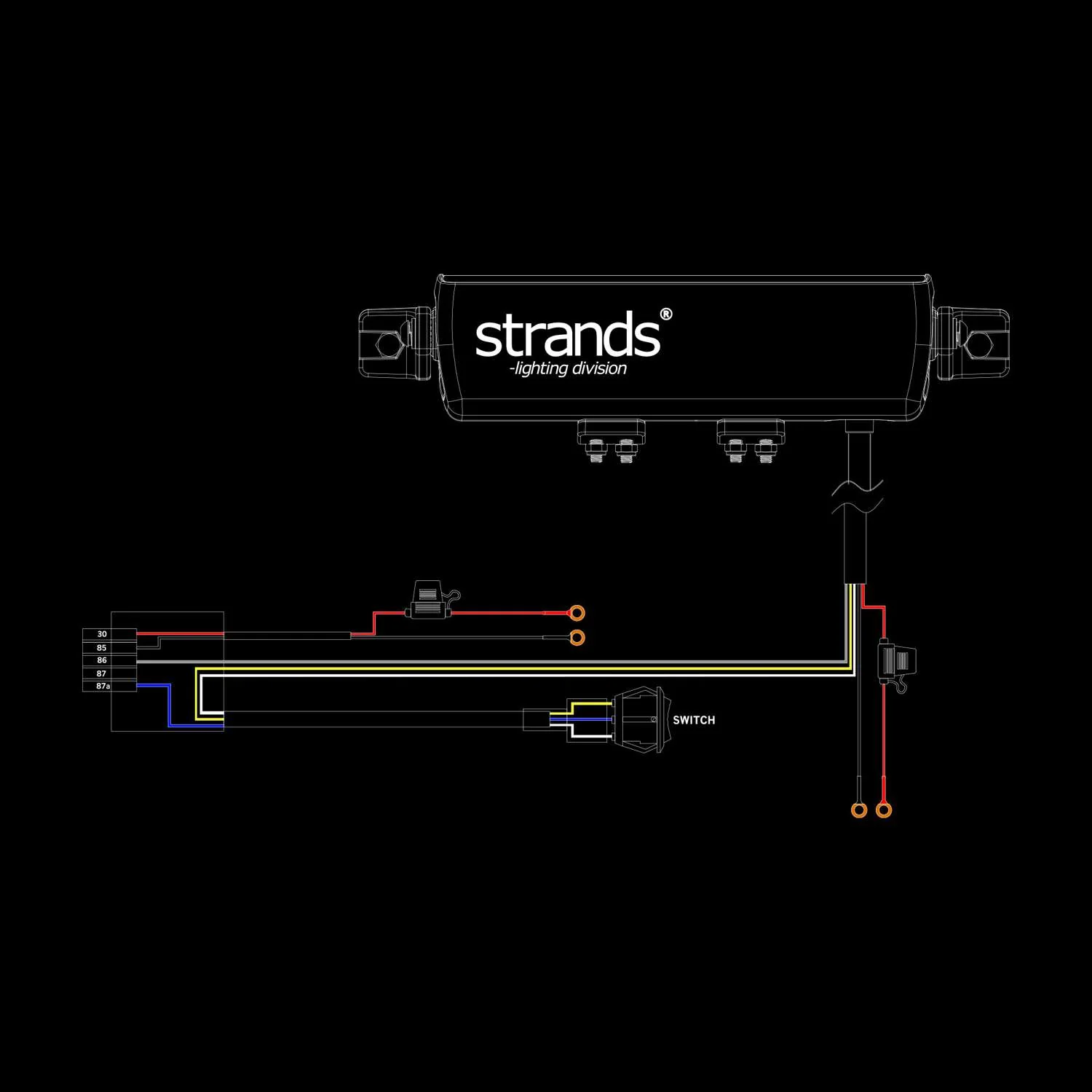

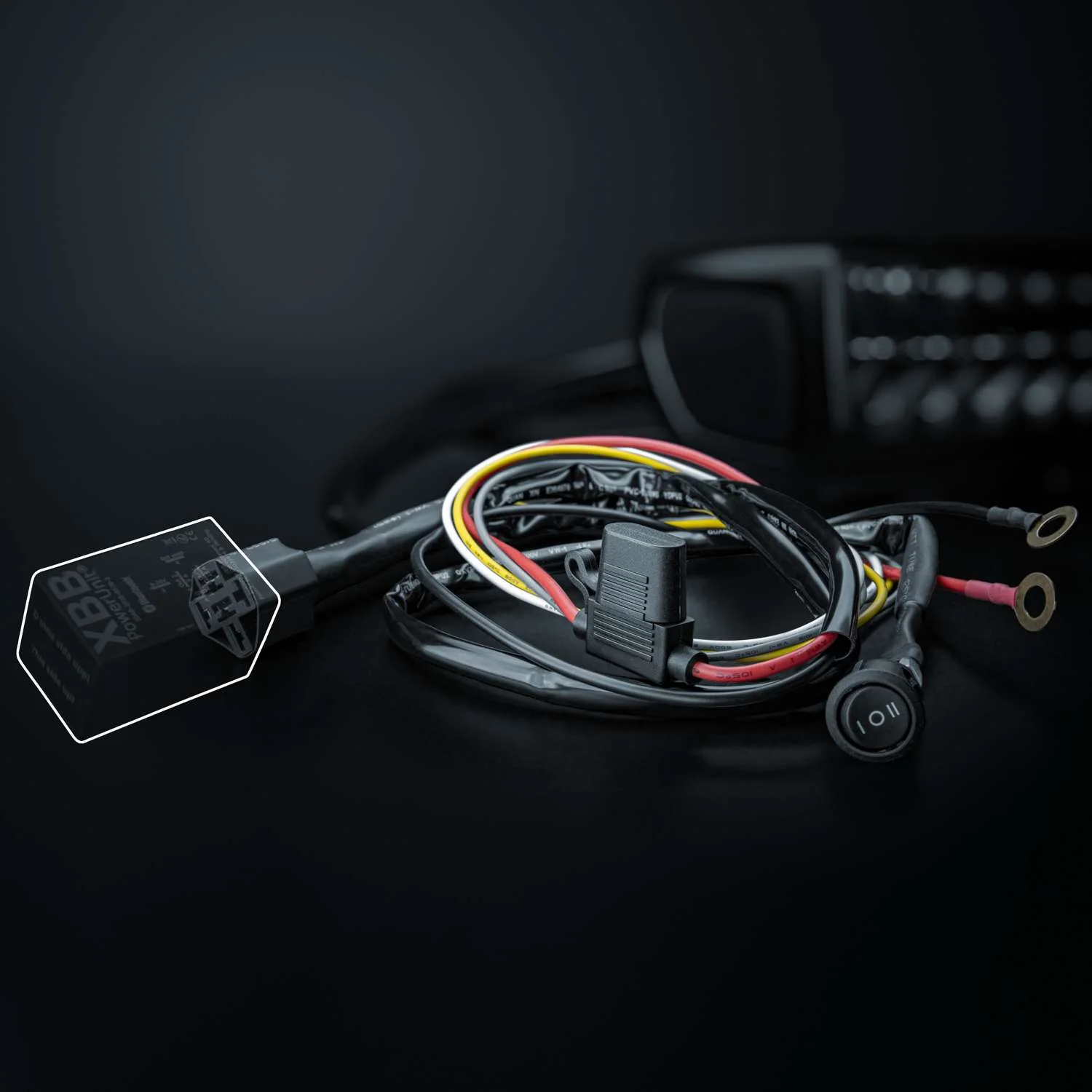

The Skylord LED bar is delivered with an XBB cable harness, enabling a smooth plug-and-play connection between the LED bar and XBB interface. The signal cable is already integrated into Output 1, and the position light into Output 2, ensuring fast and accurate setup. It features a pre-mounted switch for the position lights, located in the engine compartment, allowing you to easily switch them on or off with a simple press.These lights are sold individually and do not require a relay harness due to the integral relay in the lamp itself. Please check the manual for wiring instruction.
Specifications
| PART NUMBER | 902000 | 902001 | 902002 | 902003 |
| VOLTAGE | 10-32V DC | 10-32V DC | 10-32V DC | 10-32V DC |
| CONSUMPTION, XPERIENCE-MODE | 76W | 170W | 276W | 338W |
| CONSUMPTION, E-MODE | 37W | 74W | 84W | 76W |
| ACTUAL LUMEN, XPERIENCE-MODE | 7700 lm | 15800 lm | 26000 lm | 30100 lm |
| ACTUAL LUMEN, E-MODE | 4000 lm | 7600 lm | 9200 lm | 8500 lm |
| 1 LUX @, XPERIENCE-MODE | 517 m | 780 m | 1037 m | 1090 m |
| 1 LUX @, E-MODE | 281 m | 400 m | 439 m | 390 m |
| COLOR TEMPERATURE | 5700K | 5700K | 5700K | 5700K |
| BEAM PATTERN | Extended beam | Extended beam | Extended beam | Extended beam |
| IP-CLASS | IP68/IP69K | IP68/IP69K | IP68/IP69K | IP68/IP69K |
| COLOR LENS | Clear | Clear | Clear | Clear |
| HELLO FUNCTION | No | No | No | No |

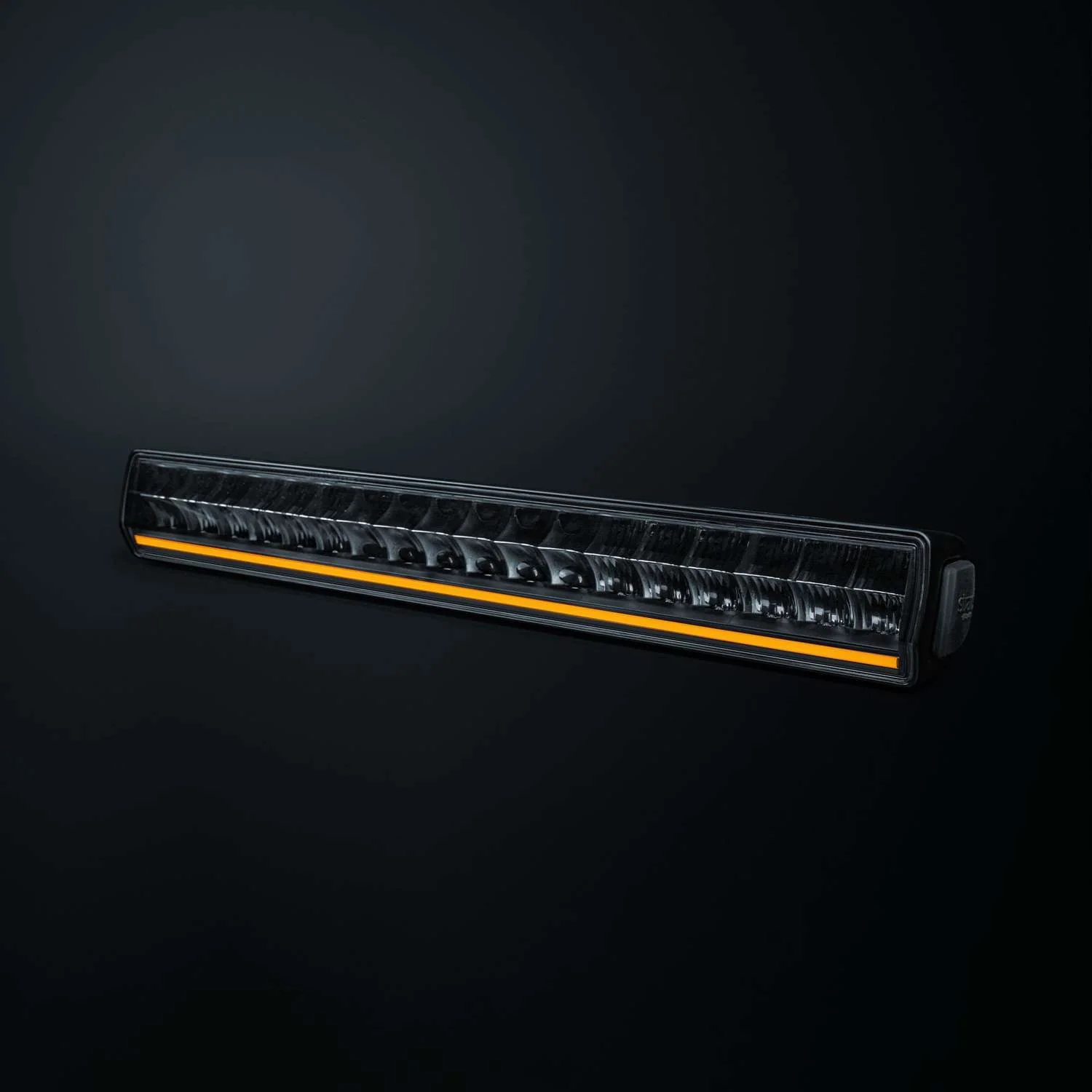

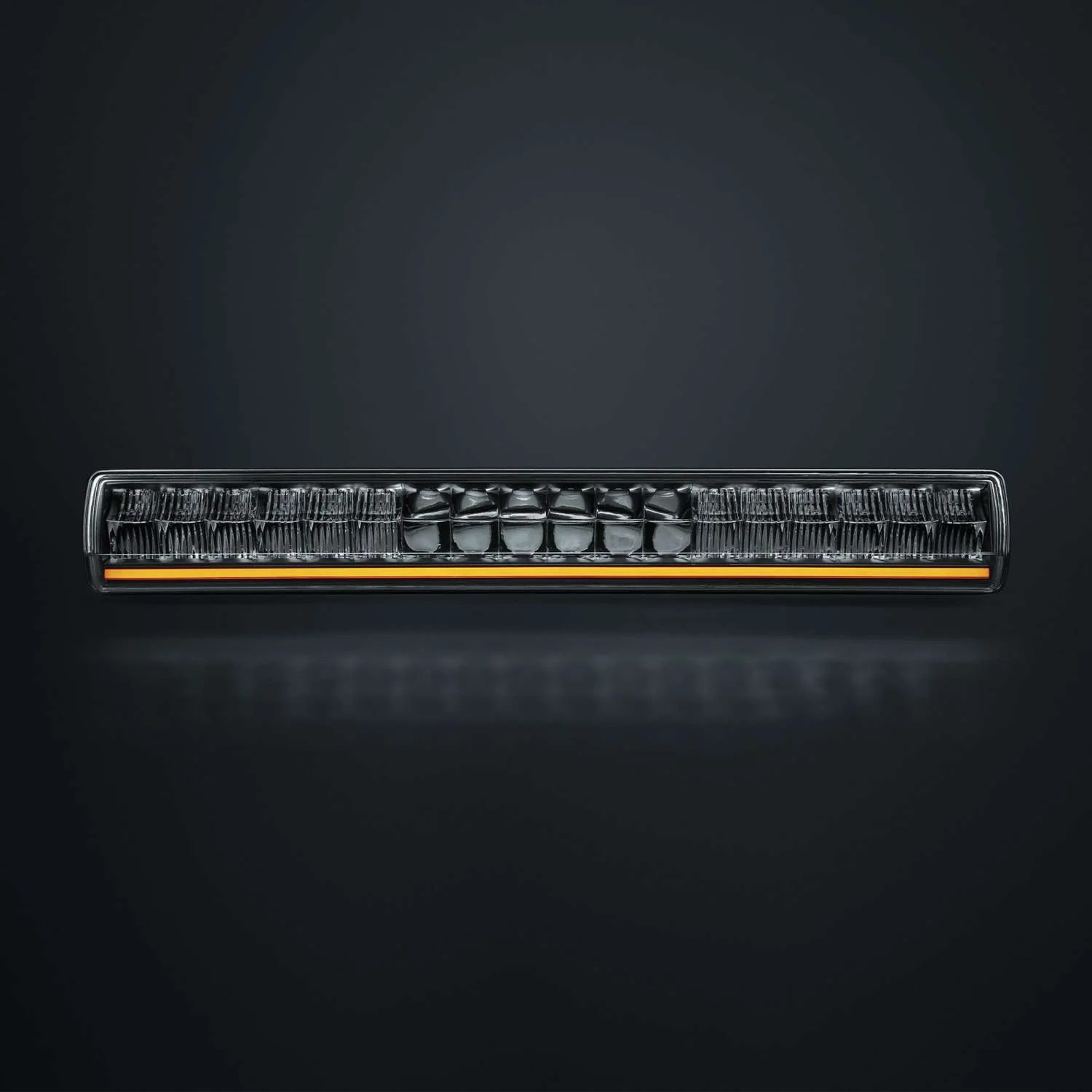

| POSITION LIGHT | White & Amber | White & Amber | White & Amber | White & Amber |
| CONNECTION | Cable | Cable | Cable | Cable |
| CABLE LENGTH | 2500 mm | 2500 mm | 2500 mm | 2500 mm |
| MATERIAL HOUSING | Aluminium | Aluminium | Aluminium | Aluminium |
| MATERIAL LENS | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |

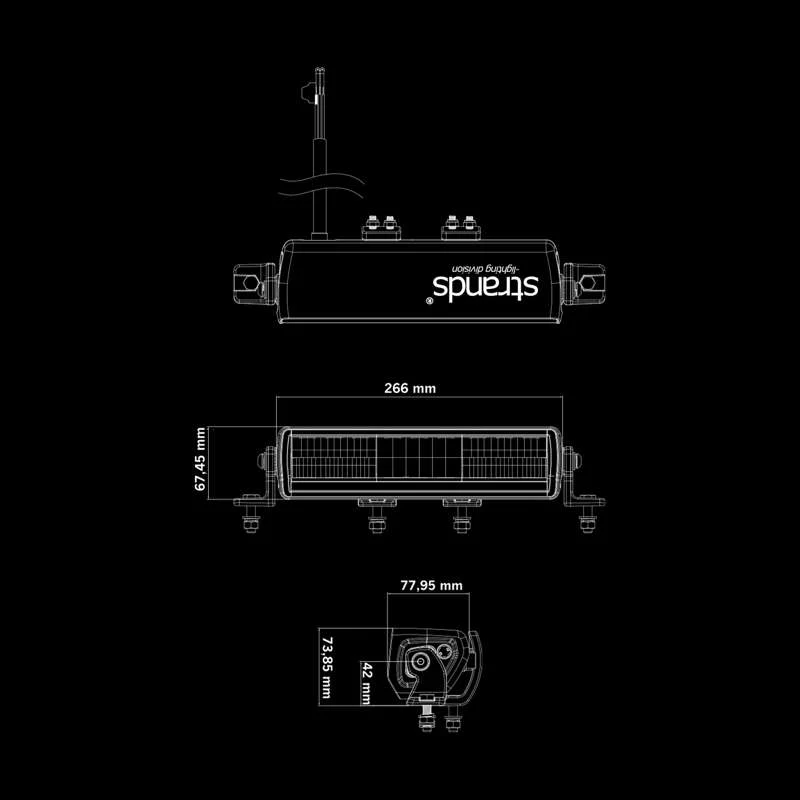

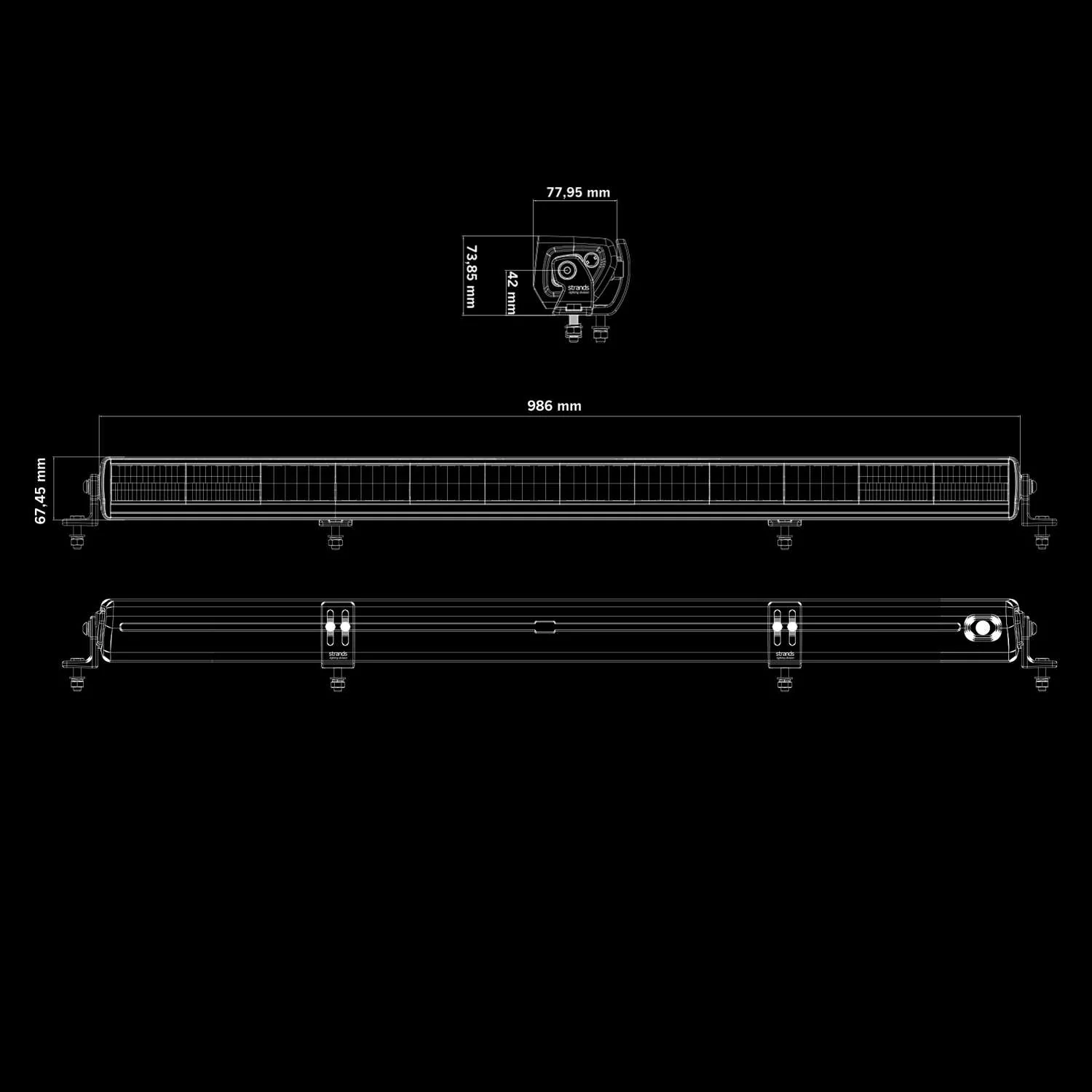

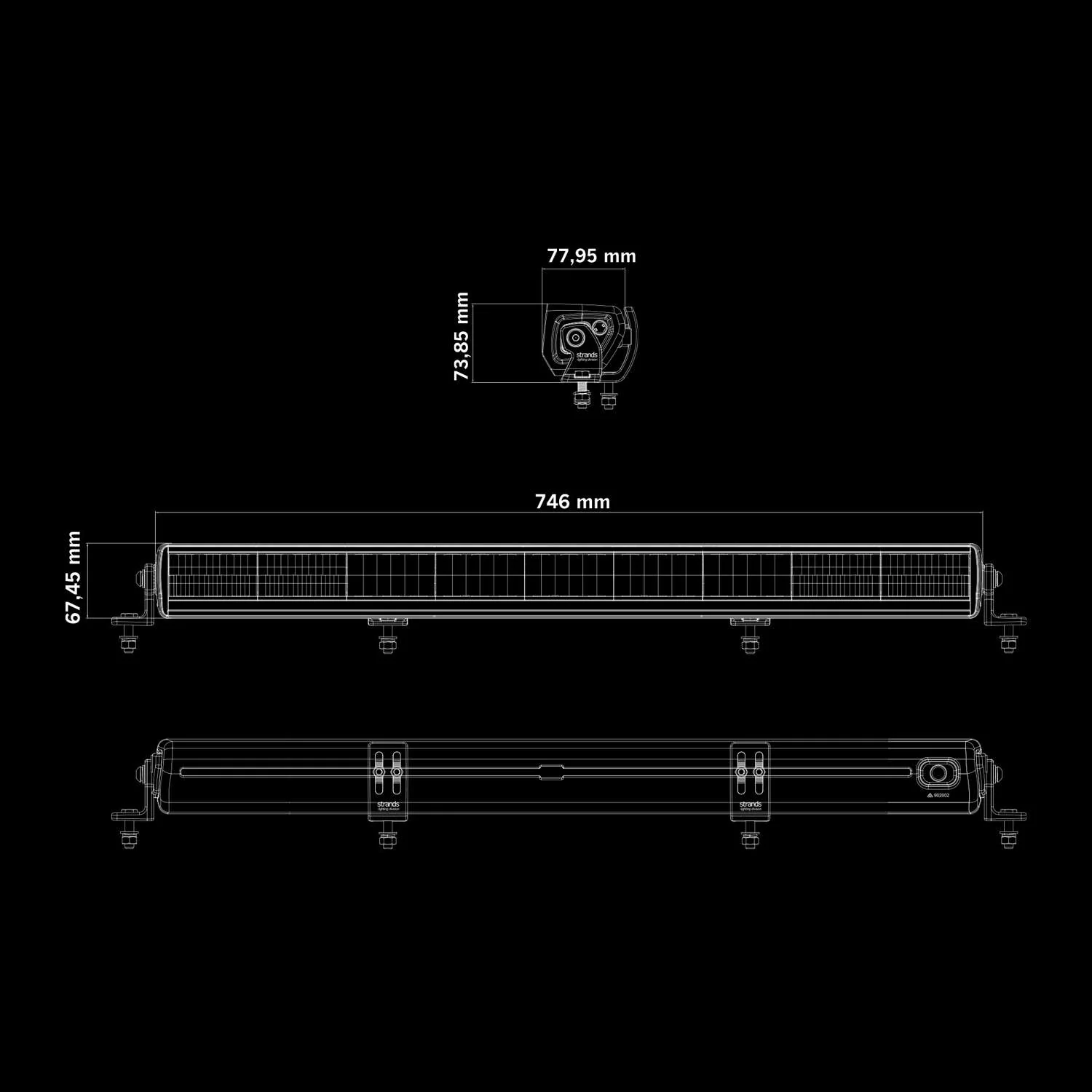

| LENGTH | 266 mm | 506 mm | 746mm | 986 mm |
| DEPTH | 77.95 mm | 77.95 mm | 77.95 mm | 77.95 mm |
| HEIGHT | 67.45 mm | 67.45 mm | 67.45 mm | 67.45 mm |
| HEIGHT INCLUDING BRACKET | 73.85 mm | 73.85 mm | 73.85 mm | 73.85 mm |
| OPERATING TEMPERATURE | -35°C - +60°C | -35°C - +60°C | -35°C - +60°C | -35°C - +60°C |
| E-APPROVED | ECE R148, R149 | ECE R148, R149 | ECE R148, R149 | ECE R148, R149 |
| EMC-CERTIFICATE | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
