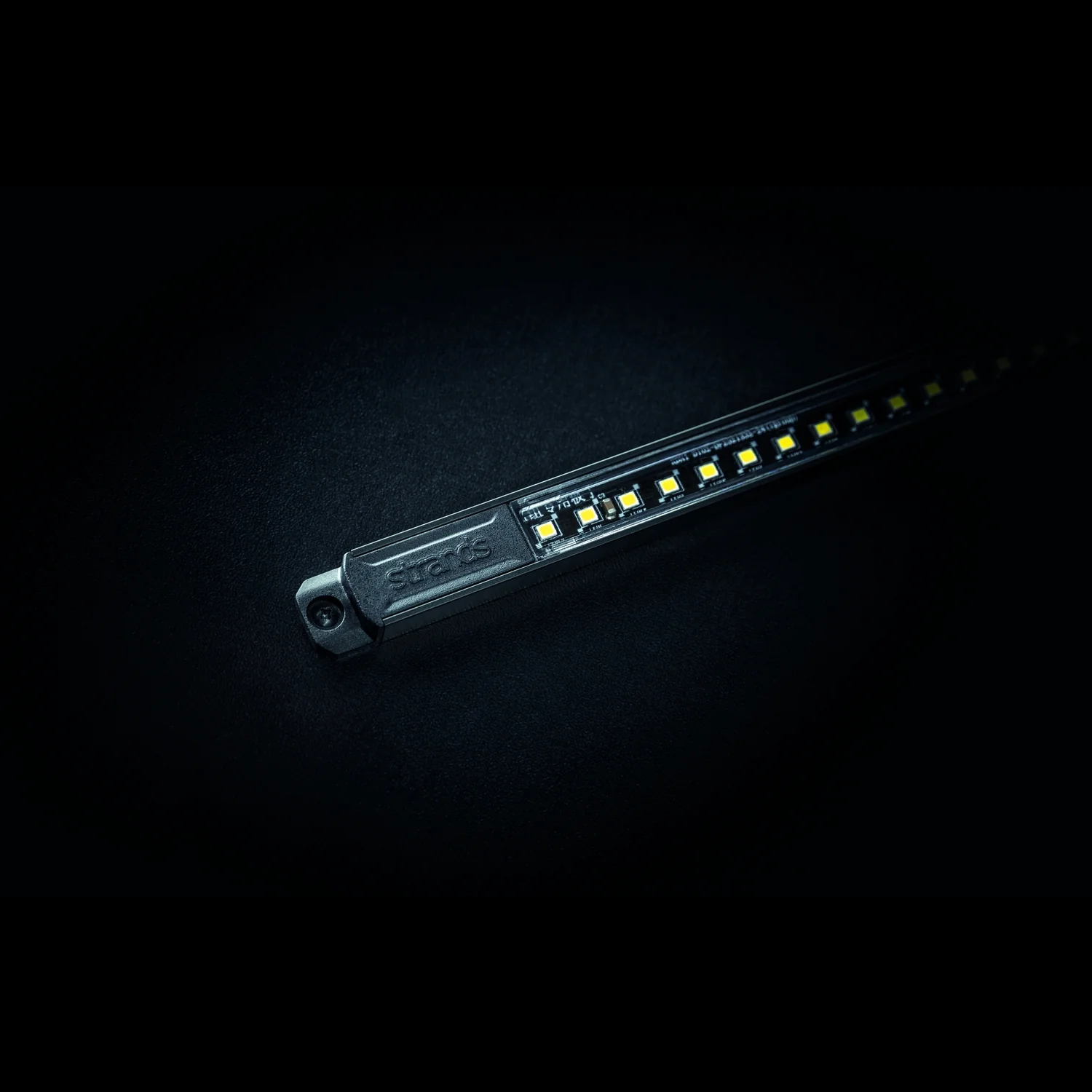

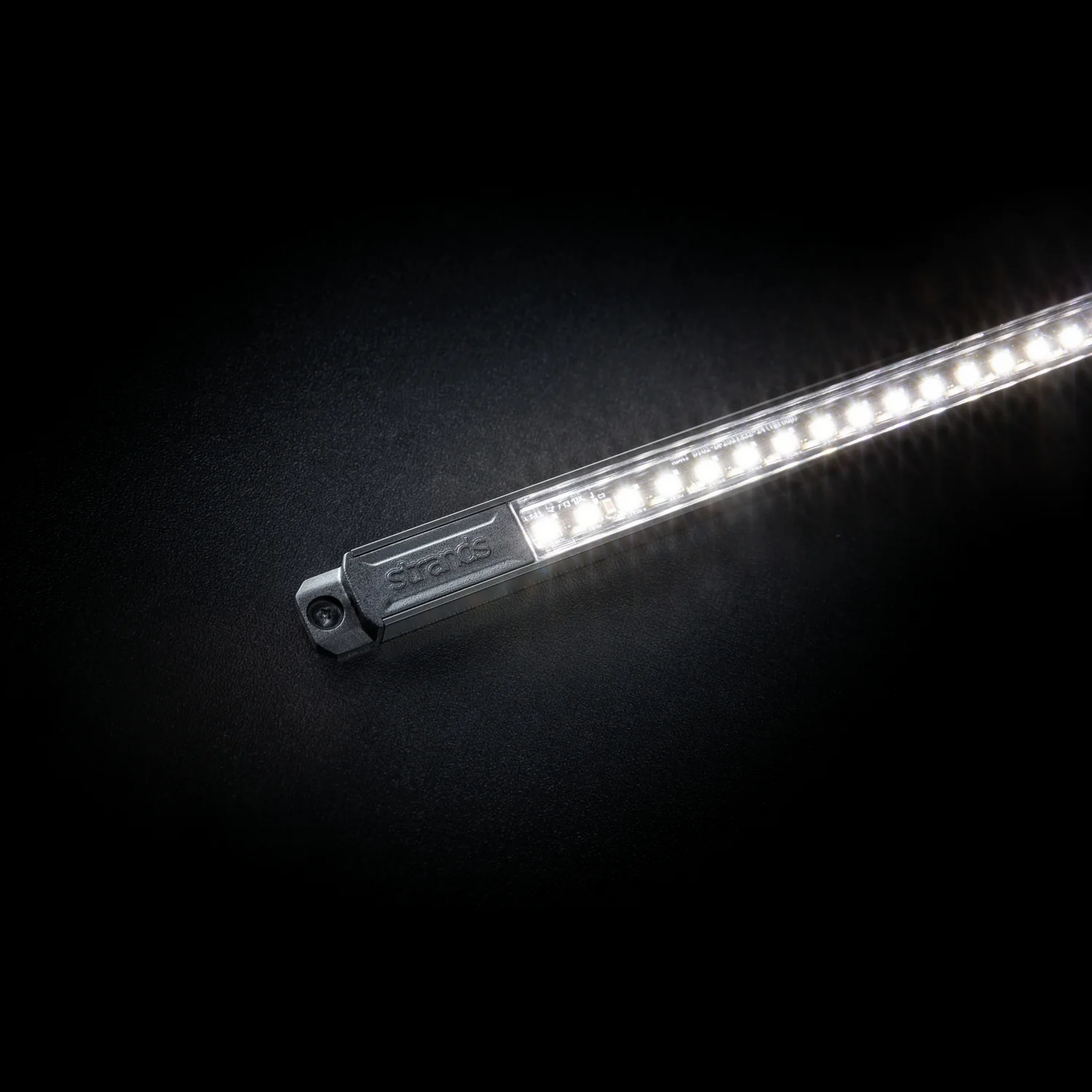

Unity Interior Lights (11"-37")
Unity Interior Lights are a great addition to any work vehicle, providing comfortable lighting with a colour temperature of 5000K. Depending on the size you choose, you get 420, 835, or 1630 actual lumen. With three different sizes to choose from and a multi-volt function of 10-30V DC, these lights can be mounted on a variety of vehicles, including cars, trucks, vans, trailers, tractors, construction, and agricultural machinery.
Specifications
| 11 inch | 20 inch | 37.5 inch | |
| VOLTAGE | 10-30V DC | 10-30V DC | 10-30V DC |
| CONSUMPTION (w) 12V/24V | 5.5/6.2 | 8.7/9.2 | 15.8/16 |
| THEORETICAL LUMEN | 650 | 1290 | 2590 |
| ACTUAL LUMEN | 420 | 835 | 1630 |
| KELVIN | 5000K | 5000K | 5000K |
| IP CLASS | IP67 | IP67 | [P67 |
| CONNECTION | Cable | Cable | Cable |
| CABLE LENGTH (mm) | 2000mm | 2000mm | 2000mm |
| MATERIAL HOUSING | Aluminum | Aluminum | Aluminum |
| MATERIAL LENS | Polycarbonate | Polycarbonate | Polycarbonate |
| LENGTH (mm) | 281 | 505 | 953 |
| CENTRE TO CENTRE SPACING (mm) | 273 | 497 | 945 |
| DEPTH (mm) | 8/13,4 | 8/13,4 | 8/13,4 |
| HEIGHT (mm) | 16 | 16 | 16 |
| OPERATING TEMPERATURE | -35°C - +45°C | -35°C - +45°C | -35°C . 45°C |
| EMC-CERTIFICATE | ECE R10 | ECE R10 | ECE R10 |
